2600 H (UT-26151) - Green Machine Hedge Trimmer Carburetor / Air Cleaner Parts Diagram

Hedge Trimmer

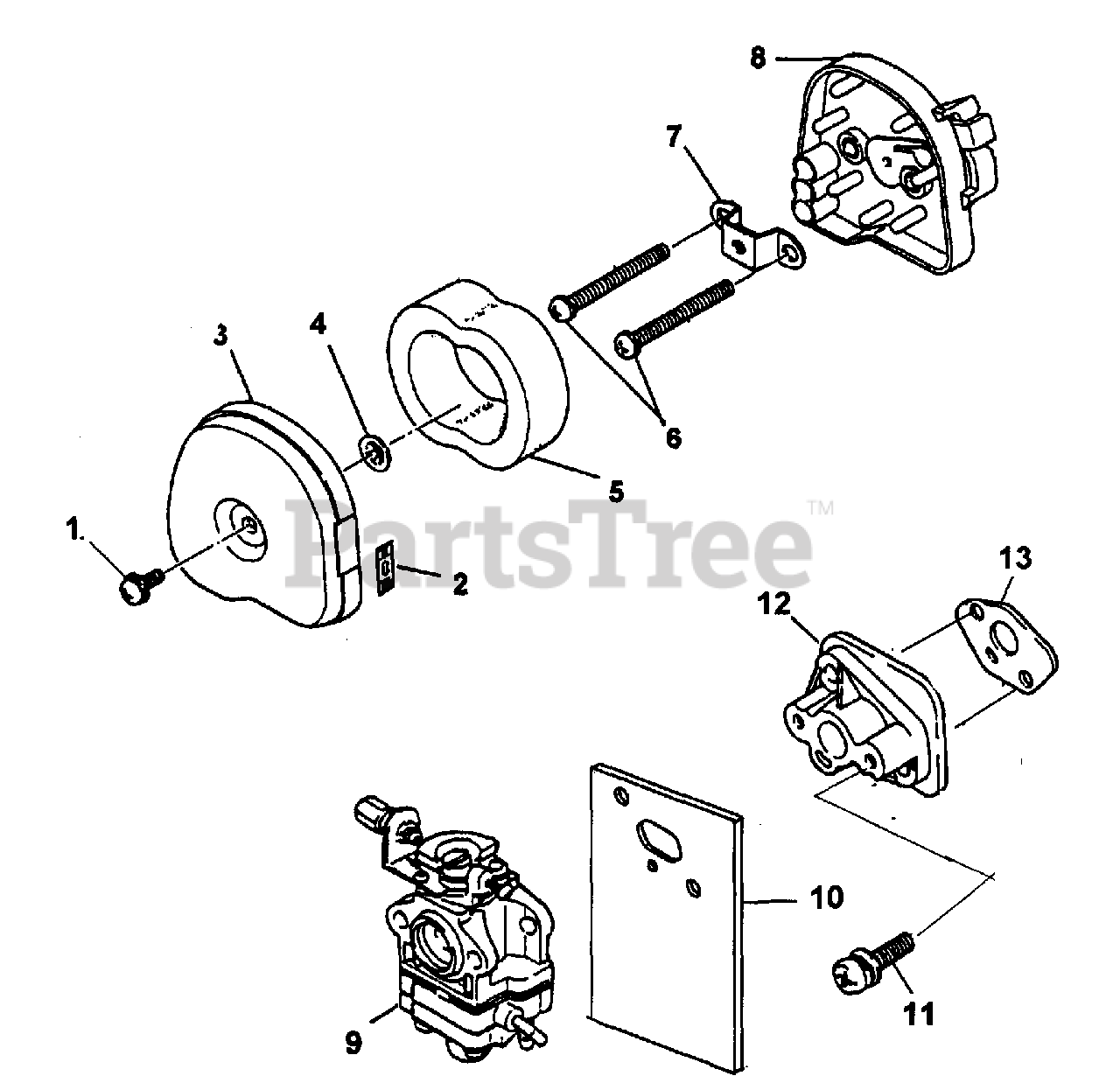

Carburetor / Air Cleaner Parts Diagram

  • Title

1

Homelite 07752

SCREW & WASHER
(Superseded to UP07226)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

2

Homelite 07754

LABEL, NAME

$

$

Not available

3

Homelite 07751

COVER, AIR CLEANER

$

$

Not available

4

Homelite 07753

NUT

$

$

Not available

5

Homelite DG07750

ELEMENT AIR CLEANER

$

$

Not available

6

Homelite 07749

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

7

Homelite 07748

BRACKET

$

$

Not available

8

Homelite 0797030

CASE, CLEANER

$

$

Not available

9

Homelite A08514

CARBURETOR ASSY

$

$

Not available

10

Homelite 0797033

GASKET, CARBURETOR

$

$

Not available

11

Homelite GM002804

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Currently unavailable

12

Homelite 0797032

INSULATOR

$

$

Not available

13

Homelite 07741

GASKET INSULATOR

$4.49

$

In Stock, Qty 5
