2600 H (UT-26151) - Green Machine Hedge Trimmer Cutters & Handles Parts Diagram

Hedge Trimmer

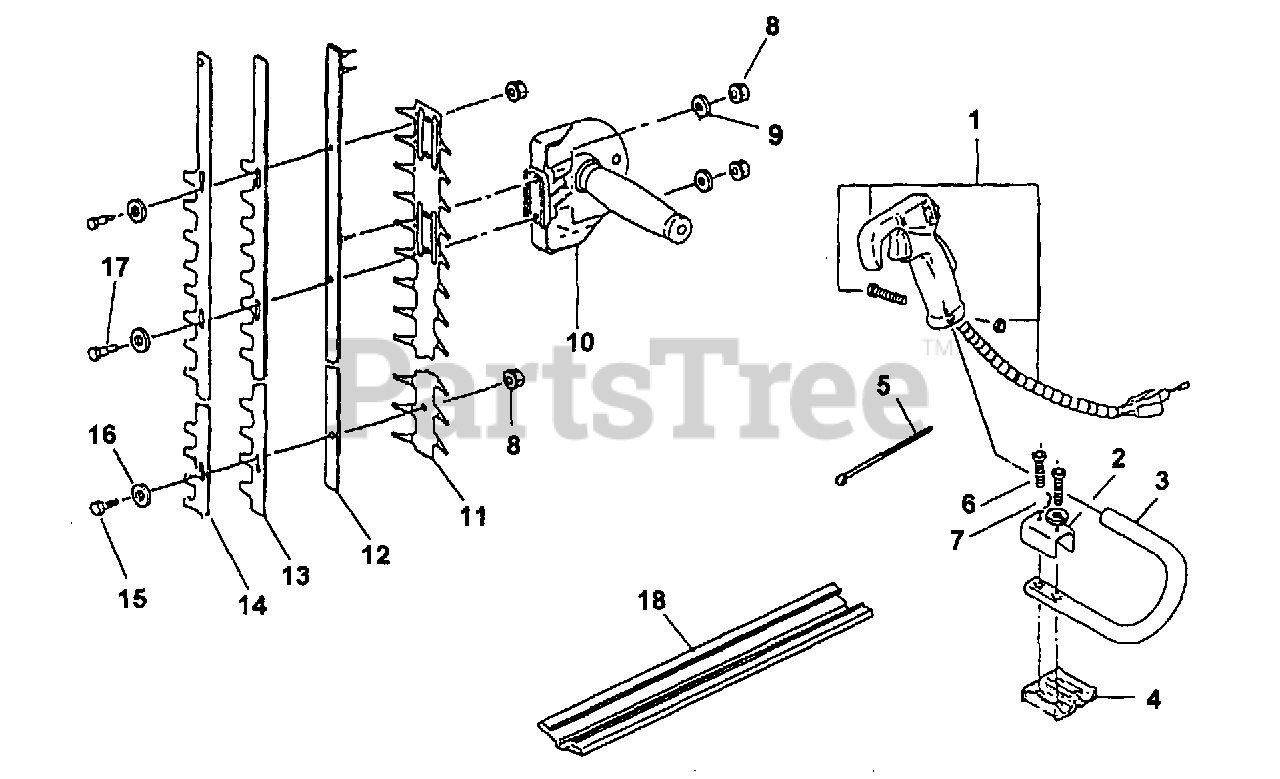

Cutters & Handles Parts Diagram

  • Title

Homelite A0797096

HANDLE ASSY.
(Superseded to 0797075)

$

$

Not available

1

Homelite 0797075

THROTTLE LEVER ASSY.

$

$

Not available

2

Homelite 0797076

BRACKET

$

$

Not available

3

Homelite 0797077

HANDLE

$

$

Not available

4

Homelite 0797078

ABSORBER

$

$

Not available

5

Homelite 0797081

WIRE BAND

$

$

Not available

6

Homelite 0797080

SOCKET SCREW (M5 X 45)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Currently unavailable

7

Homelite 0797079

LOCK WASHER (M5)

$

$

Currently unavailable

8

Homelite 0797082

HEX NUT (M6)

Note: Torque Specs: See Owners Manual literature

$

$

Not available

9

Homelite 0797083

WASHER (M6)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite A0797084

HANDLE ASSY

$

$

Not available

11

Homelite 0797085

PROTECTOR

$

$

Not available

12

Homelite 0797086

CUTTER GUIDE

$

$

Not available

13

Homelite 0797087

CUTTER BLADE (B)

$

$

Not available

14

Homelite 0797088

CUTTER BLADE (A)

$

$

Not available

15

Homelite 0797089

STEP BOLT (SHORT)

Note: Torque Specs: See Owners Manual literature

$

$

Not available

16

Homelite 0797090

CUTTER WASHER

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 0797091

STEP BOLT (LARGE)

Note: Torque Specs: See Owners Manual literature

$

$

Not available

18

Homelite 0797092

COVER

$

$

Not available
