2600 H (UT-26151) - Green Machine Hedge Trimmer Ignition Parts Diagram

Hedge Trimmer

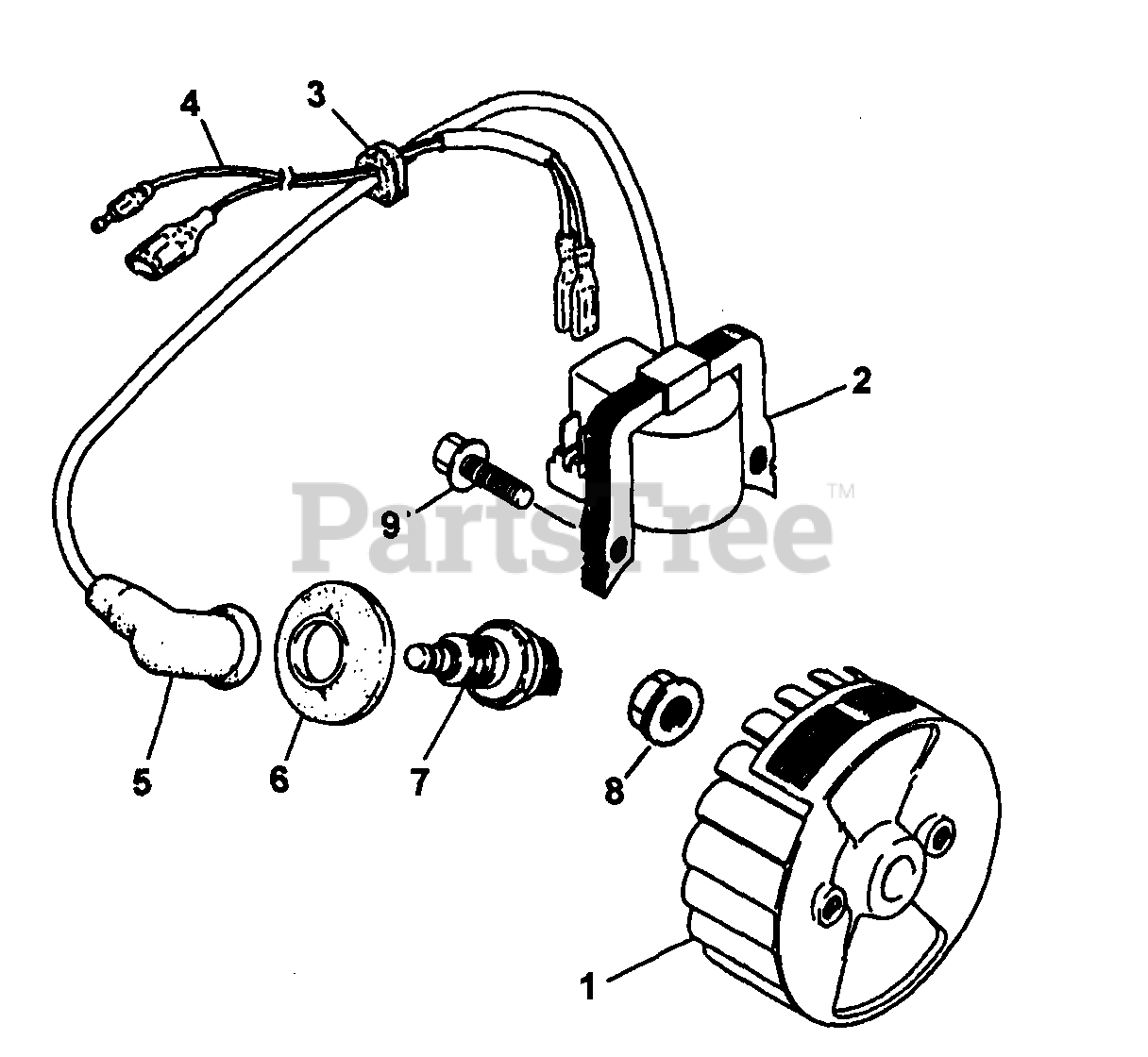

Ignition Parts Diagram

  • Title

1

Homelite 0797045

ROTOR

$

$

Not available

2

Homelite 07736

MODULE, IGNITION

$

$

Not available

3

Homelite 07738

GROMMET

$

$

Not available

4

Homelite 0797047

WIRE, LEAD

$

$

Not available

5

Homelite 07737

CAP, PLUG

$

$

Not available

6

Homelite 07739

CAP, PLUG

$

$

Not available

7

Homelite GM190036

SPARK PLUG

$

$

Not available

8

Homelite GM052804

NUT, CONICAL

Note: Torque Specs: 69-87 In/Lbs; 7.8-9.8 Nm

$

$

Not available

9

Homelite GM030104

BOLT & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Currently unavailable
