261-JU - Troy-Bilt 123cc Engine 261-JU Starter & Flywheel Parts Diagram

123cc Engine

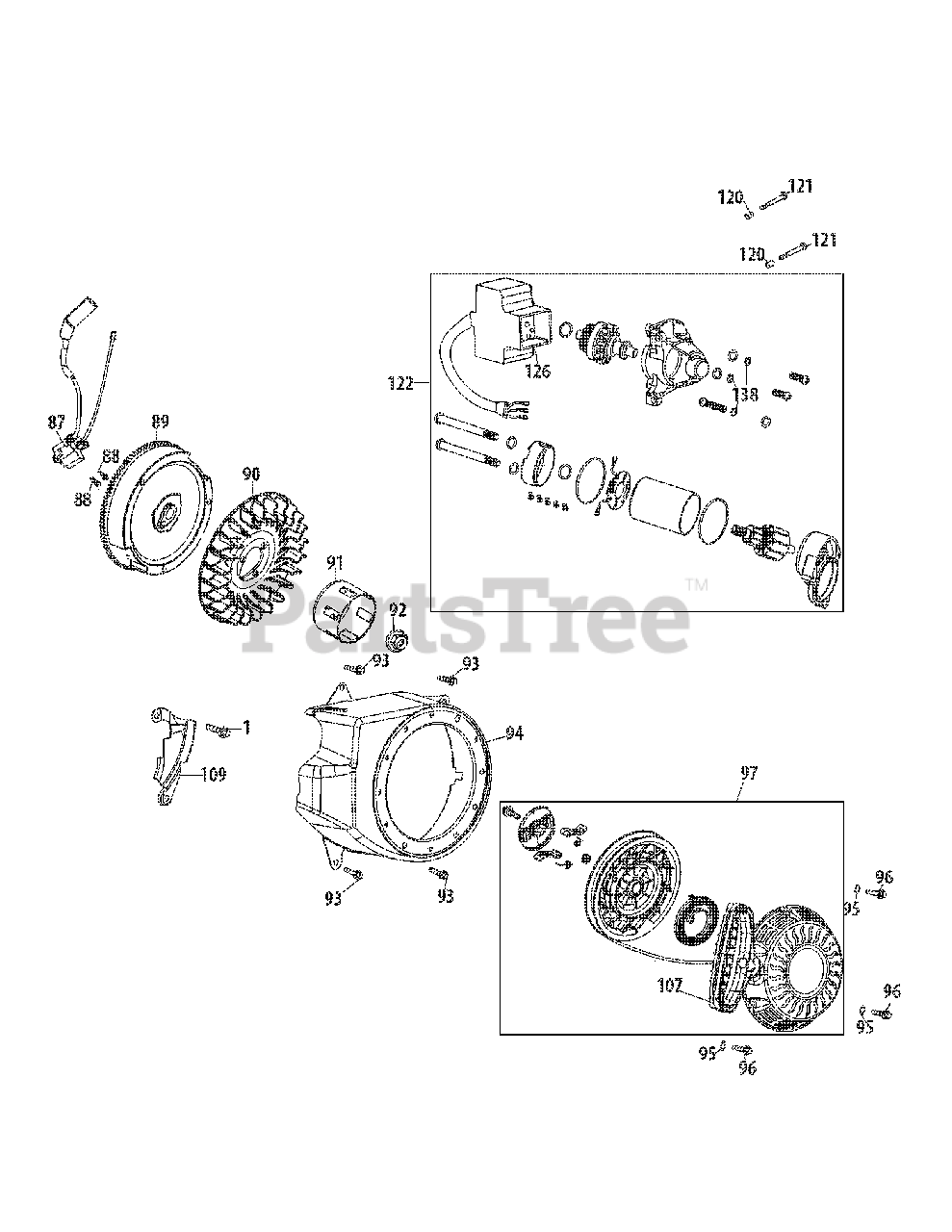

261-JU Starter & Flywheel Parts Diagram

  • Title

1

Troy-Bilt 710-05191

Bolt M6×16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

87

Troy-Bilt 951-10958A

Ignition Module

$97.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

89

Troy-Bilt 751-14780

Flywheel
(Superseded to 951-14780)

$109.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 951-10910

Cooling Fan

$50.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 712-04287

Flange Nut M14×1.5

$6.99

$

In Stock, only 1 left!

0

93

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

94

Troy-Bilt 751-14779

Blower Housing
(Superseded to 951-14779)

$35.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 736-04455

Washer 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 710-04974

Bolt M6×10

$6.99

$

In Stock, only 2 left!

0

97

Troy-Bilt 951-10955

Recoil Starter

$76.99

$

In Stock, Qty 7

0

107

Troy-Bilt 731-05696

Starter Handle

$16.99

$

In Stock, only 1 left!

0

109

Troy-Bilt 751-14670

Lower Shield
(Superseded to 951-14670)

$8.49

$

Usually ships in 3-6 days

0

120

Troy-Bilt 715-04088

Dowel Pin 8×8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

121

Troy-Bilt 710-05182

Bolt M6×32

$4.49

$

In Stock, only 1 left!

0

122

Troy-Bilt 751-14669

Electric Starter
(Superseded to 951-14669)

$309.99

$

Usually ships in 3-6 days

0

126

Troy-Bilt 624-05007

Main Cable
(Superseded to 924-05007)

$87.99

$

Usually ships in 3-6 days

0

138

Troy-Bilt 736-04629

Spring Washer 5

$3.99

$

Usually ships in 3-6 days

0
