261011x89A - Yard King 26" Walk-Behind Mower (2002) Fixed Wheel Assembly Parts Diagram

26" Walk-Behind Mower

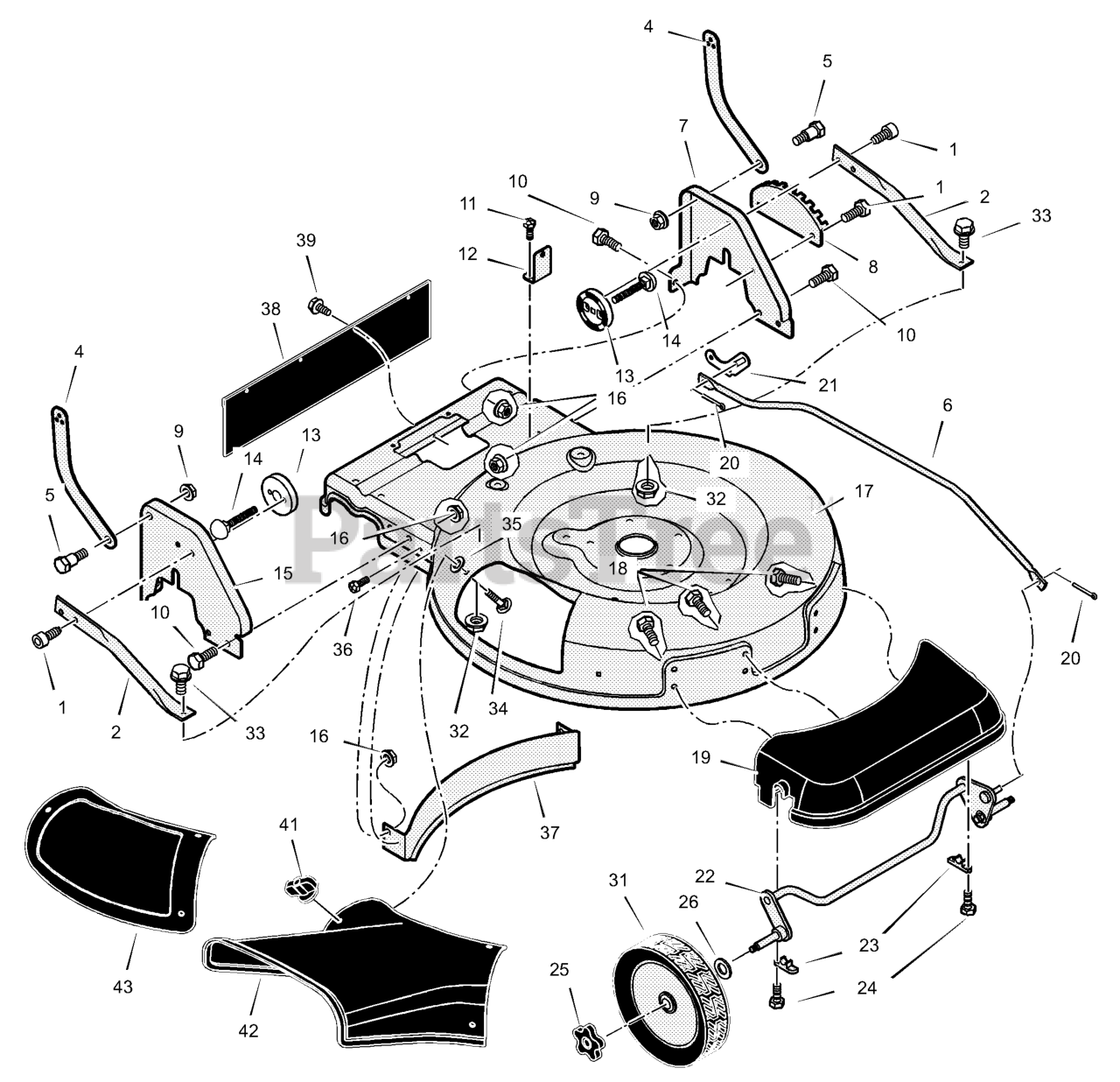

Fixed Wheel Assembly Parts Diagram

  • Title

1

Murray 710277

Screw

$18.99

$

Usually ships in 2-12 days

0

2

Murray 1101378E020

Brace, Handle Bracket

$

$

Currently unavailable

4

Murray 1101229E724

Support, Handle

$

$

Currently unavailable

5

Murray 710200

Bolt, Shoulder

$7.99

$

Usually ships in 2-12 days

0

6

Murray 1101468E020

Link, Lifter

$

$

Currently unavailable

7

Murray 1101168E020

Bracket, Left Handle

$

$

Currently unavailable

8

Murray 1101206E020

Plate, Index

$

$

Currently unavailable

9

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 15

0

10

Murray 001X85MA

Screw

$3.99

$

Usually ships in 2-12 days

0

11

Murray 26X233MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 1101213E020

Bracket, Blade Drive Cable

$

$

Currently unavailable

13

Murray 1101155MA

Support, Handle Adjuster

$10.99

$

Usually ships in 2-12 days

0

14

Murray 002X76MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1101169E020

Bracket, Right Handle

$

$

Currently unavailable

16

Murray 45171MA

Nut

$3.49

$

Usually ships in 2-12 days

0

17

Murray 1101221E020

Housing, Mower

$

$

Currently unavailable

18

Murray 26X301MA

Screw

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1101223MA

Panel, Front

$30.99

$

Usually ships in 2-12 days

0

20

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

21

Murray 1101465E020

Bracket Assembly, Lifter

$

$

Currently unavailable

22

Murray 1101186E020

Crossbar Assembly, Front

$

$

Currently unavailable

23

Murray 1101158MA

Clip, Front

$9.49

$

Usually ships in 2-12 days

0

24

Murray 26X300MA

Screw

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672449MA

Knob, Axle

$5.99

$

In Stock, only 2 left!

0

26

Murray 0020X3MA

Washer, Spring

$4.49

$

In Stock, Qty 7

0

31

Murray 1101146MA

Wheel and Tire

$

$

Not available

32

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

34

Murray 002X95MA

Bolt, Carriage

$15.99

$

Usually ships in 2-12 days

0

35

Murray 028X55MA

Retainer, Bolt

$3.49

$

Usually ships in 2-12 days

0

36

Murray 26X293MA

Screw

$3.99

$

Usually ships in 2-12 days

0

37

Murray 1101171E020

Baffle, Rear

$

$

Currently unavailable

38

Murray 1101200MA

Deflector, Rear

$6.99

$

In Stock, only 1 left!

0

39

Murray 710271

Screw

$

$

Currently unavailable

41

Murray 1101222MA

Knob

$5.99

$

Usually ships in 2-12 days

0

42

Murray 1101161MA

Deflector, Chute

$77.99

$

Usually ships in 2-12 days

0

43

Murray 1101162MA

Cover, Mulch

$28.99

$

Usually ships in 2-12 days

0
