262 - Husqvarna Chainsaw (1991-03) Crankcase Parts Diagram

Chainsaw

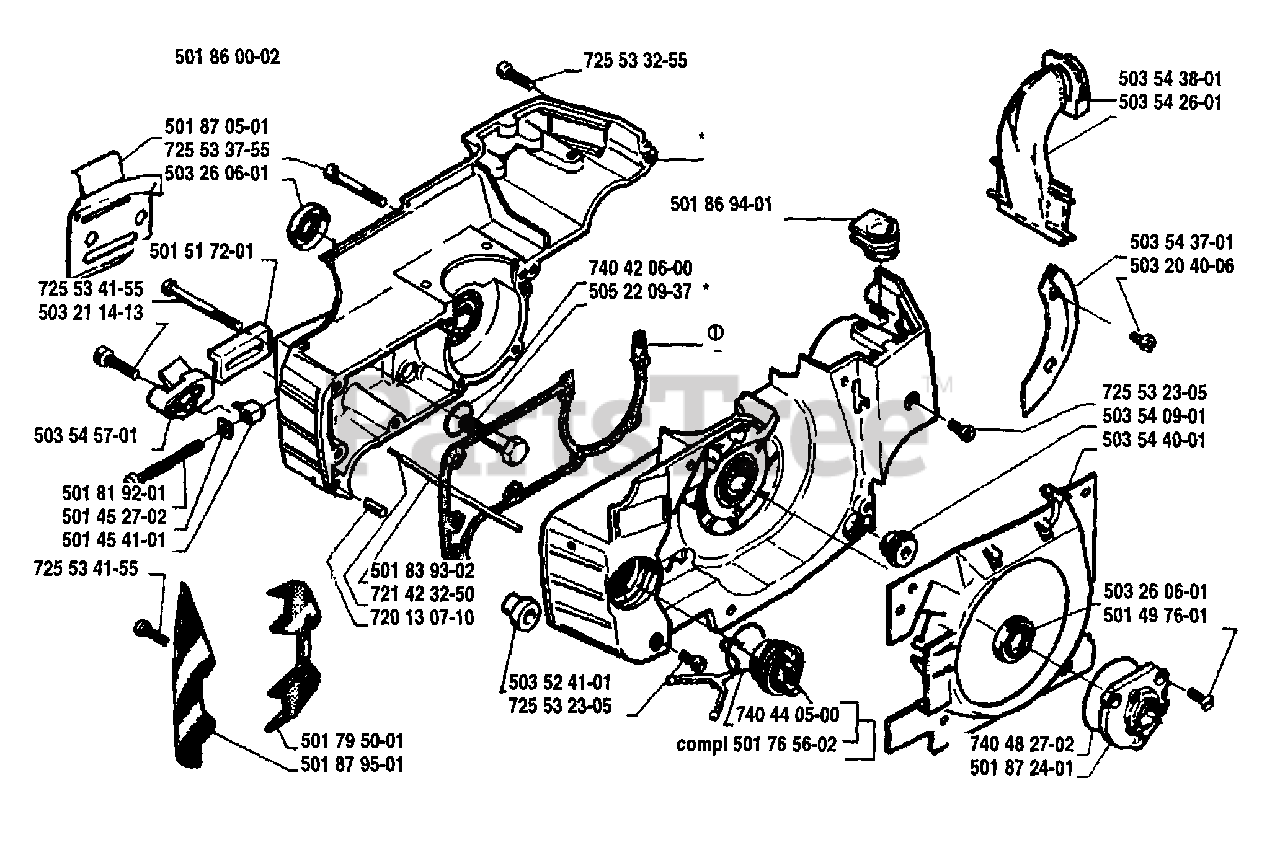

Crankcase Parts Diagram

  • Title

501860002

Husqvarna 501860002

CRANK CASE W/BEARING
(Superseded to 501860004)

$

$

Not available

501870501

Husqvarna 501870501

CHAIN GUIDE PLATE

$6.99

$

In Stock, only 1 left!

0

725533755

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 9

0

503260601

Husqvarna 503260601

SEALING RING
(Superseded to 505275719)

$19.99

$

In Stock, Qty 10

0

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 2 left!

0

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 9

0

503211413

Husqvarna 503211413

SCREW
(Superseded to 503210525)

$5.99

$

Usually ships in 3-10 days

0

503545701

Husqvarna 503545701

CHAIN CATCHER

$7.99

$

Usually ships in 3-10 days

0

501819201

Husqvarna 501819201

SCREW

$10.99

$

In Stock, Qty 7

0

501452702

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 8

0

501454101

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 5

0

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 9

0

501839302

Husqvarna 501839302

OIL TANK VENT

$

$

Not available

721423250

Husqvarna 721423250

SPIRAL PIN 3.5X18

$

$

Not available

720130710

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

503524101

Husqvarna 503524101

ABSORBER

$13.99

$

In Stock, only 1 left!

0

725532305

Husqvarna 725532305

SCREW MC6S 5X8
(Superseded to 725532555)

$4.99

$

In Stock, Qty 5

0

501795001

Husqvarna 501795001

FELLING DOG

$

$

Not available

501879501

Husqvarna 501879501

FELLING DOG

$

$

Not available

740440500

Husqvarna 740440500

O-RING

$7.49

$

In Stock, only 2 left!

0

501765602

Husqvarna 501765602

OIL CAP

$10.99

$

In Stock, only 3 left!

0

740482702

Husqvarna 740482702

O-RING

$5.99

$

In Stock, Qty 5

0

501872401

Husqvarna 501872401

BEARING COVER

$

$

Not available

503260601

Husqvarna 503260601

SEALING RING
(Superseded to 505275719)

$19.99

$

In Stock, Qty 10

0

501497601

Husqvarna 501497601

SCREW

$

$

Not available

503543701

Husqvarna 503543701

PLATE

$

$

Not available

503204006

Husqvarna 503204006

Screw, Fs 5X12

$

$

Not available

725532305

Husqvarna 725532305

SCREW MC6S 5X8
(Superseded to 725532555)

$4.99

$

In Stock, Qty 5

0

503540901

Husqvarna 503540901

BUFFER

$8.99

$

Usually ships in 3-10 days

0

503544001

Husqvarna 503544001

AIR CONDUCTOR
(Superseded to 503544003)

$14.99

$

Usually ships in 3-10 days

0

725533255

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

501869401

Husqvarna 501869401

BELLOWS
(Superseded to 503782401)

$

$

Not available

740420600

Husqvarna 740420600

O-RING 8X1.6

$3.99

$

In Stock, only 2 left!

0

505220937

Husqvarna 505220937

BAR BOLT

$8.99

$

Usually ships in 3-10 days

0

503543801

Husqvarna 503543801

GROMMET
(Superseded to 503543802)

$

$

Not available

503542501

Husqvarna 503542501

$

$

Currently unavailable
