262 XP - Husqvarna Chainsaw (SN: 19910900001 - 19924400000) FUEL TANK & HANDLE Parts Diagram

Chainsaw

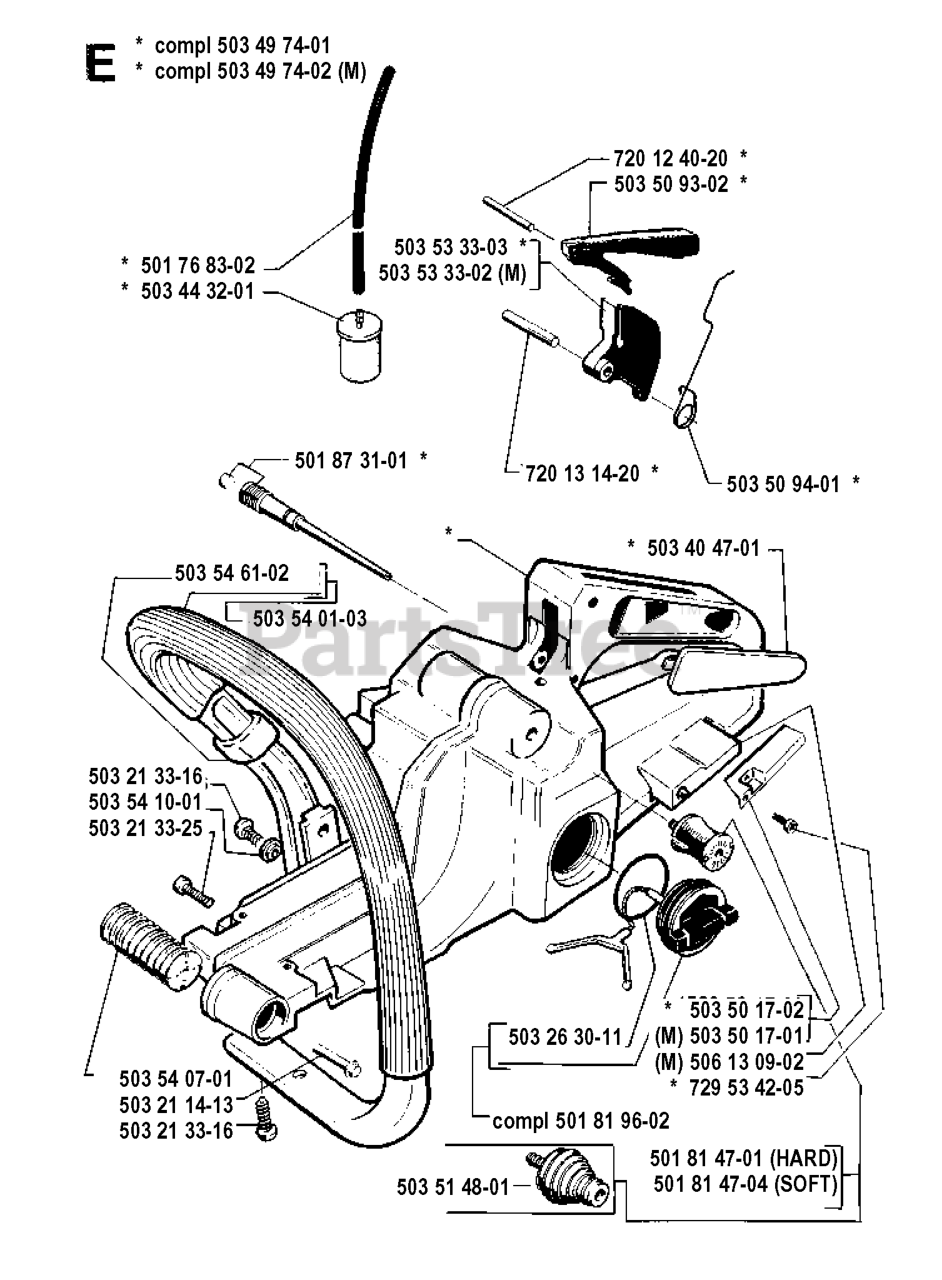

FUEL TANK & HANDLE Parts Diagram

  • Title

503 50 17-01

Husqvarna 503501701

Note: M

$

$

Currently unavailable

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

503 21 33-16

Husqvarna 503213316

SCREW
(Superseded to 503214972)

$4.99

$

In Stock, Qty 20+

0

501 87 31-01

Husqvarna 501873101

FUEL TANK VENT

$9.49

$

In Stock, Qty 6

0

503 21 14-13

Husqvarna 503211413

SCREW
(Superseded to 503210525)

$3.49

$

In Stock, only 2 left!

0

503 26 30-11

Husqvarna 503263011

O-RING
(Superseded to 503263017)

$6.99

$

In Stock, only 4 left!

0

720 13 14-20

Husqvarna 720131420

PARALLEL PIN 5X30
(Superseded to 720131520)

$

$

Not available

503 40 47-01

Husqvarna 503404701

HANDLE FILLER

$5.99

$

In Stock, only 2 left!

0

503 50 93-02

Husqvarna 503509302

THROTTLE LOCK

$

$

Not available

501 76 83-02

Husqvarna 501768302

FUEL HOSE
(Superseded to 581756103)

$5.99

$

In Stock, Qty 8

0

506 13 09-02

Husqvarna 506130902

Note: M

$

$

Currently unavailable

729 53 42-05

Husqvarna 729534205

REPL BY 729 53 44-05
(Superseded to 729534405)

$3.49

$

In Stock, Qty 20+

0

503 50 94-01

Husqvarna 503509401

SPRING

$

$

Not available

503 53 33-02

Husqvarna 503533302

LEVER
(Superseded to 503533301)

Note: M

$

$

Not available

503 54 01-03

Husqvarna 503540103

FRONT HANDLE

$

$

Not available

501 81 47-04

Husqvarna 501814704

ANTIVIBE ELEMENT
(Superseded to 503514801)

Note: SOFT

$14.99

$

In Stock, Qty 6

0

503 49 74-02

Husqvarna 503497402

Note: M

$

$

Currently unavailable

503 51 48-01

Husqvarna 503514801

ABSORBER

$14.99

$

In Stock, Qty 6

0

503 53 33-03

Husqvarna 503533303

THROTTLE LEVER

$

$

Not available

503 54 10-01

Husqvarna 503541001

MOVEMENT LIMITER

$

$

Not available

501 81 47-01

Husqvarna 501814701

ANTIVIBE ELEMENT
(Superseded to 501814702)

Note: HARD

$11.99

$

In Stock, only 2 left!

0

503 54 07-01

Husqvarna 503540701

ABSORBER

$

$

Not available

503 54 61-02

Husqvarna 503546102

SUPPORT

$

$

Not available

503 49 74-01

Husqvarna 503497401

TANK UNIT CPL.

$

$

Not available

503 50 17-02

Husqvarna 503501702

COVER STD

$

$

Not available

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 15

0

503 21 33-25

Husqvarna 503213325

SCREW
(Superseded to 503214925)

$3.49

$

In Stock, only 2 left!

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

In Stock, only 2 left!

0
