262 XP - Husqvarna Chainsaw (SN: 19960100001 - 19981400000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

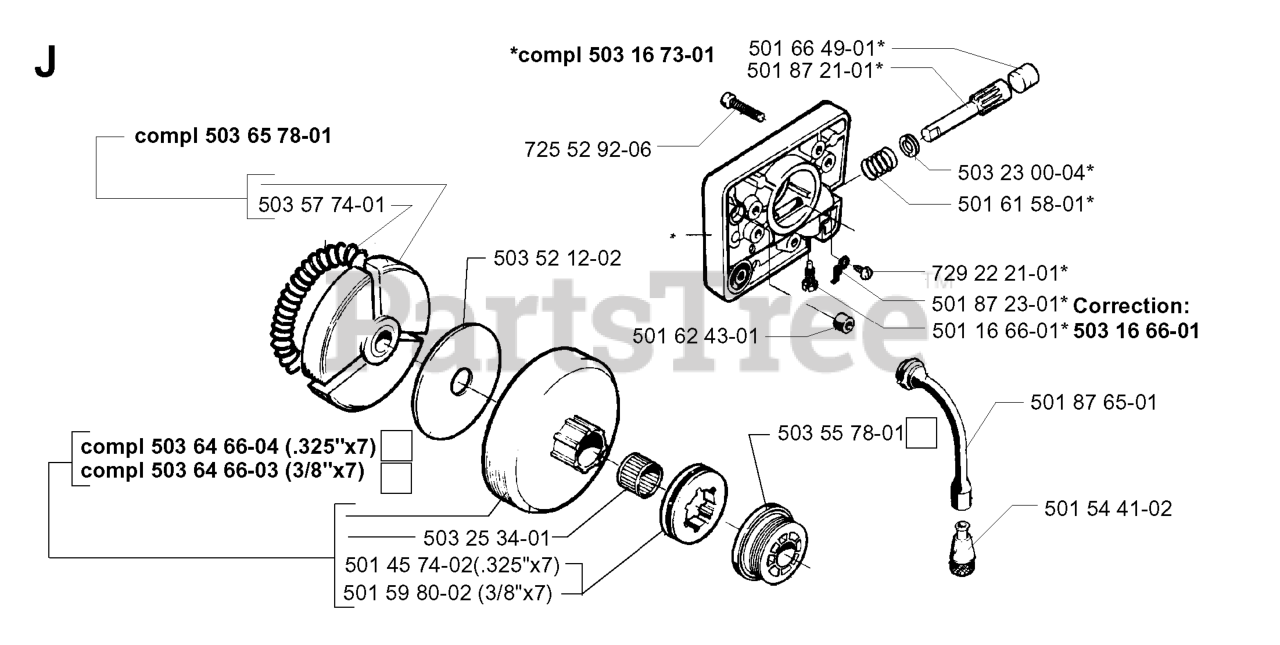

CLUTCH & OIL PUMP Parts Diagram

  • Title

503 57 74-01

Husqvarna 503577401

CLUTCH SPRING

$7.99

$

In Stock, only 2 left!

0

729 22 21-01

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

503 65 78-01

Husqvarna 503657801

CLUTCH COMPLETE
(Superseded to 503577101)

$95.02

$

Usually ships in 3-10 days

0

503 64 66-03

Husqvarna 503646603

CLUTCH DRUM COMP-3/8 X 7

Note: 3/8X7

$69.99

$

In Stock, only 1 left!

0

501 62 43-01

Husqvarna 501624301

GASKET

$

$

Not available

503 52 12-02

Husqvarna 503521202

WASHER

$

$

Not available

501 45 74-02

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: .325X7

$8.49

$

In Stock, Qty 20+

0

503 64 66-04

Husqvarna 503646604

CLUTCH DRUM CPL 325X7

Note: .325X7

$

$

Not available

503 16 73-01

Husqvarna 503167301

OIL PUMP

$

$

Not available

501 66 49-01

Husqvarna 501664901

PLUG

$

$

Not available

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, Qty 5

0

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$7.49

$

Usually ships in 3-10 days

0

501 87 21-01

Husqvarna 501872101

PUMP PLUNGER

$

$

Not available

501 87 23-01

Husqvarna 501872301

Catch Adj.Screw

$

$

Not available

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8X7

$8.49

$

In Stock, Qty 20+

0

501 87 65-01

Husqvarna 501876501

OIL HOSE

$11.99

$

Usually ships in 3-10 days

0

503 55 78-01

Husqvarna 503557801

WORM WHEEL

$10.99

$

In Stock, only 1 left!

0

503 25 34-01

Husqvarna 503253401

SUPPORT BUSHING

$21.99

$

In Stock, Qty 20+

0

503 16 66-01

Husqvarna 503166601

SCREW

Note: CORRECTION:

$

$

Not available

501 61 58-01

Husqvarna 501615801

SPRING

$6.49

$

Usually ships in 3-10 days

0
