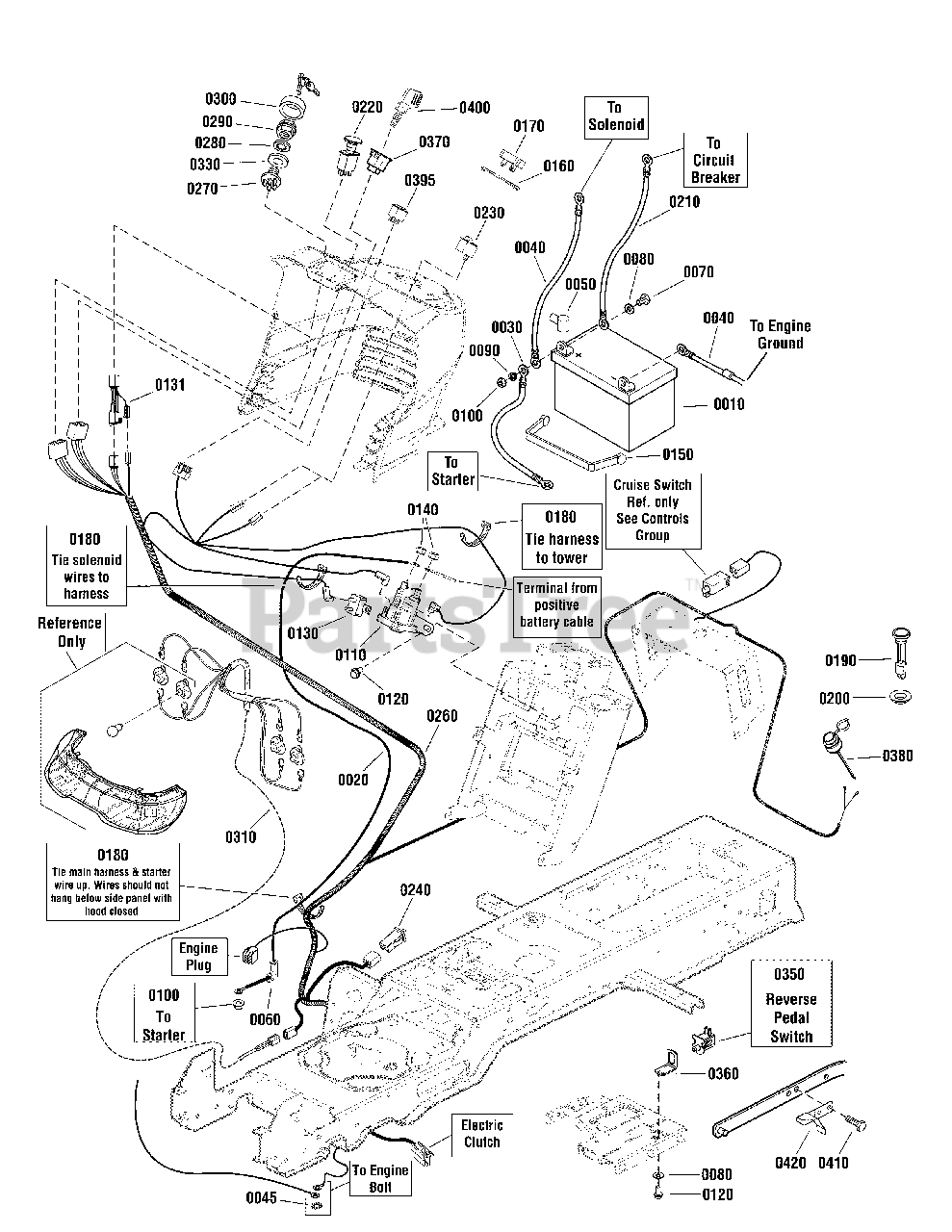

2620 (2691158-00) - Massey Ferguson 50" Lawn Tractor, 20hp Electrical Group Parts Diagram

50" Lawn Tractor, 20hp

Electrical Group Parts Diagram

  • Title

0010

BATTERY, 12 Volt

Note: (Not a serviceable part)

$

$

Not available

0020

Simplicity 1755468YP

CABLE, Electric, #6 X 8", Red

$9.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1721830SM

CABLE, #6 25.0 Lg Red

$19.99

$

In Stock, only 1 left!

0

0040

Simplicity 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals

$24.99

$

Usually ships in 2-12 days

0

0045

Simplicity 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 1677296SM

BOOT, Insulator, Battery Terminal PVC Red

$6.49

$

In Stock, only 2 left!

0

0070

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0060

Simplicity 1713535SM

BOOT, Insulator, Red

$5.99

$

Usually ships in 2-12 days

0

0080

Simplicity 2821319SM

WASHER, 1/4, .27 ID x .62 OD x .05 THK
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0090

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0100

Simplicity 2816622SM

NUT, HEX 1/4-20 NC-2B YELLOW
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0110

Simplicity 1755381YP

SOLENOID

$24.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0130

Simplicity 1665238SM

BREAKER, Circuit, 12Volt, 20 AMPS W/Tab

$14.99

$

In Stock, Qty 8

0

0131

Simplicity 1739717SM

HARNESS, Jumper

Note: (22HP Models Only)

$

$

Not available

0140

Simplicity 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

0160

Simplicity 1725524SM

PLUG, Dash, Hour Meter, Later Models

$5.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1731184SM

METER & CLIP, Hour, Digital, Later Models (Includes Ref. No. 48)

$64.99

$

In Stock, only 2 left!

0

0180

Simplicity 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0190

Simplicity 1722300SM

FUEL, Gauge

$34.99

$

In Stock, only 1 left!

0

0200

Simplicity 1722337SM

GROMMET

$8.99

$

In Stock, only 2 left!

0

0210

Simplicity 1665237SM

WIRE, 12 Gauge, 7.9 LG

$11.99

$

In Stock, only 1 left!

0

0220

Simplicity 5022180SM

SWITCH, Blade Engage
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0230

Simplicity 1716951SM

SWITCH, Head lights

$21.99

$

In Stock, only 1 left!

0

0240

Simplicity 1732006SM

SWITCH, Push Button (NO/NC)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0260

Simplicity 1739708YP

HARNESS, Wiring

$199.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, Qty 6

0

0290

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

0310

Simplicity 1722669SM

HARNESS, Headlight Assembly

$40.99

$

Usually ships in 2-12 days

0

0330

Simplicity 2101025SM

WASHER, 5/8

$4.49

$

Usually ships in 2-12 days

0

0350

Simplicity 1704379SM

SAFETY SWITCH (Seat), Operator Present
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 6

0

0360

Simplicity 1726810ASM

BRACKET, Switch Mounting, Reverse Pedal

$12.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1726556SM

SWITCH, Reverse Mow Module
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0

0395

Simplicity 1716329SM

SWITCH, Electric Lift, 6 Terminal

$47.99

$

In Stock, Qty 15

0

0400

Simplicity 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0410

Simplicity 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, Qty 10

0

0420

Simplicity 1727215ASM

ACTUATOR, Switch 20GA

$21.99

$

Usually ships in 2-12 days

0
