2620 (31BM63P3766) - Troy-Bilt Storm 26" Snow Thrower (2009) 2-Way & 4-Way Extended Chute Parts Diagram

Storm 26" Snow Thrower

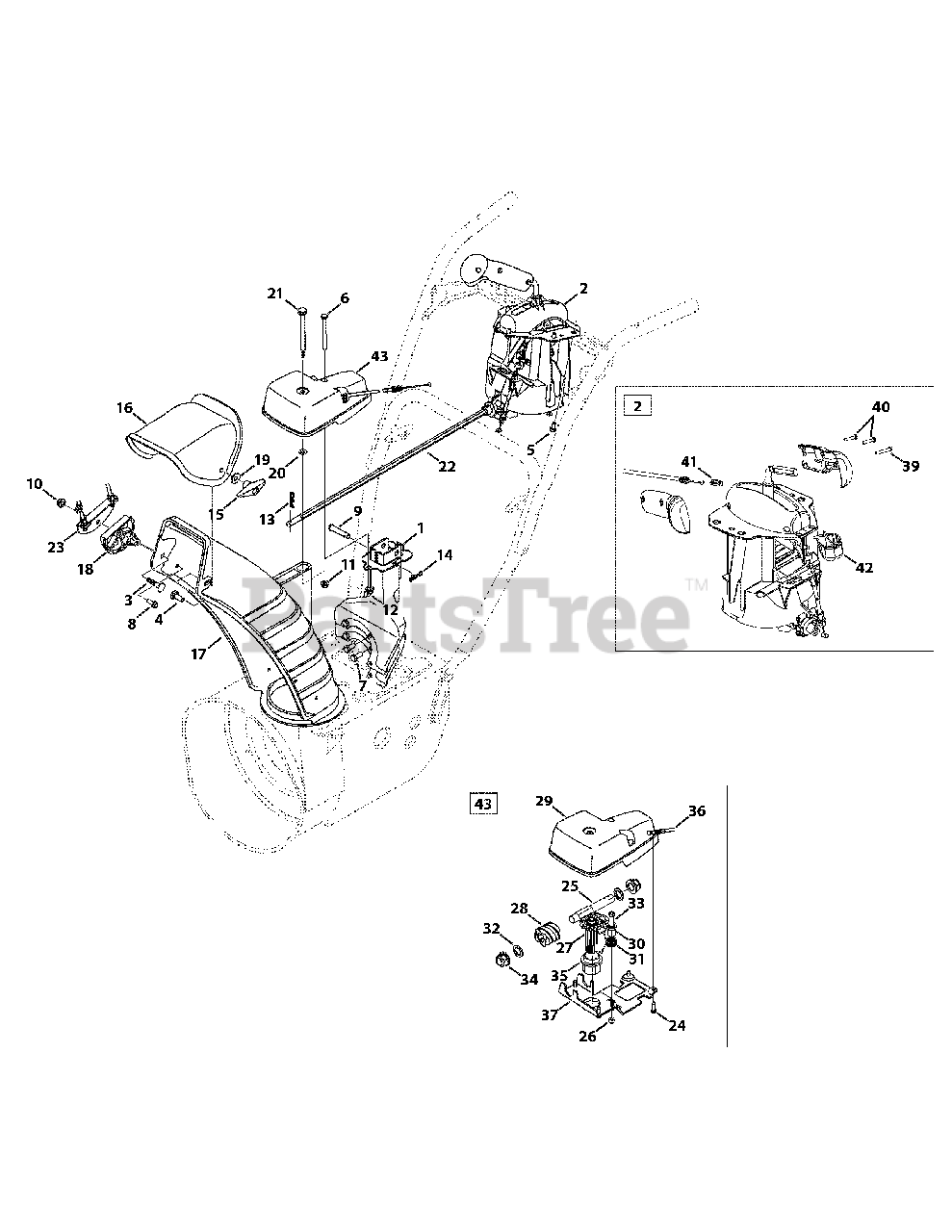

2-Way & 4-Way Extended Chute Parts Diagram

  • Title

1

Troy-Bilt 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$37.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 984-04338

Chute Control, 4-Way
(Superseded to 984-04338A)

Note: 4-way, Includes cables

$202.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 753-06153

4-Way Joystick Housing

Note: 4-way (Not shown)

$79.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 753-06152

Gear Set Kit

Note: 4-way (Not shown)

$23.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 984-04324A

Shift Assembly

Note: 4-way (Not shown)

$100.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 715-04095

Spring Pin, .156 dia. x .875 Lg.

Note: 4-way (Not shown)

$4.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 684-04350

Block Assembly, Joint

Note: 4-way (Not shown)

$26.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 746-04528A

Chute Cable
(Superseded to 946-04528B)

Note: 4-way, Not shown (Front housing cable)

$38.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 746-04477

Chute Cable includes routing clip
(Superseded to 946-04477)

Note: 4-way, Not shown (Rear housing cable)

$41.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 984-04348

Chute Control, 2-Way

Note: 2-way

$121.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 753-06154

2-Way Joystick Housing

Note: 2-way (Not shown)

$49.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06152

Gear Set Kit

Note: 2-way (Not shown)

$23.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 684-04347

Shift Assembly
(Superseded to 984-04347)

Note: 2-way (Not shown)

$62.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06151

Control Trigger Housing Kit

Note: 2-way and 4-way

$26.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0262

Bolt, Carriage, 5/16-18 x 1.50 - 28" Models

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18 x .750 - 24" & 26" Models

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

5

Troy-Bilt 710-04187

Screw, HL, 1/4-15 x 0.50
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

6

Troy-Bilt 710-04370

Hex Head Screw, 1/4-20 x 3.00

$3.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0627

Hex Head Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0895

Screw, HL, 1/4-15 x 0.750

$5.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

10

Troy-Bilt 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

14

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 720-04072A

Star Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-04427A

Chute, Upper Remote
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 731-04426A

Chute, Upper Manual Tilt
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

17

Troy-Bilt 731-06440A

Chute, Lower

$48.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-06451

Cable Guide, Chute Tilt

$4.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

20

Troy-Bilt 736-04446

Washer, Flat, .25 x .630

$3.99

$

In Stock, Qty 6

0

21

Troy-Bilt 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 747-05116

Chute Rod, 3/8 Hex

$28.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 784-5594-0637

Cable Bracket

$10.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

25

Troy-Bilt 711-05186

Hex Shaft

$9.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 712-0896

Hexlock Nut, 1/4-28

$4.49

$

In Stock, Qty 6

0

27

Troy-Bilt 717-04667

Gear, 14T
(Superseded to 717-04667B)

$9.99

$

In Stock, Qty 10

0

28

Troy-Bilt 717-04672

Worm Gear
(Superseded to 717-04672A)

$8.99

$

In Stock, Qty 5

0

29

Troy-Bilt 731-06906

Gear Cover

$17.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 731-06943

Pawl Lock
(Superseded to 731-06943A)

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt 732-04638A

Torsion Spring, .721 ID x .474
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-04391

Screw, Shoulder, .340 x .950 x 1/4-28

$5.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 941-0225

Hex Bearing

$6.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 741-04388

Flange Bearing
(Superseded to 741-04388A)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 946-04619A

Cable Lock
(Superseded to 946-04619B)

$32.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 790-00342A-0637

Gear Bracket
(Superseded to 790-00342C-0637)

$26.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-04353

Screw, #8 x 1.00

$6.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 710-04879

Screw, 8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 731-04893A

Joystick Plug

$5.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 731-07031

Joystick Trigger

$6.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 918-04801

Chute Rotation Gearbox
(Superseded to 918-04801B)

$119.99

$

In Stock, only 4 left!

0
