2620 - Weed Eater String Trimmer CUTTING HEAD(S) & DRIVE SHAFT Parts Diagram

String Trimmer

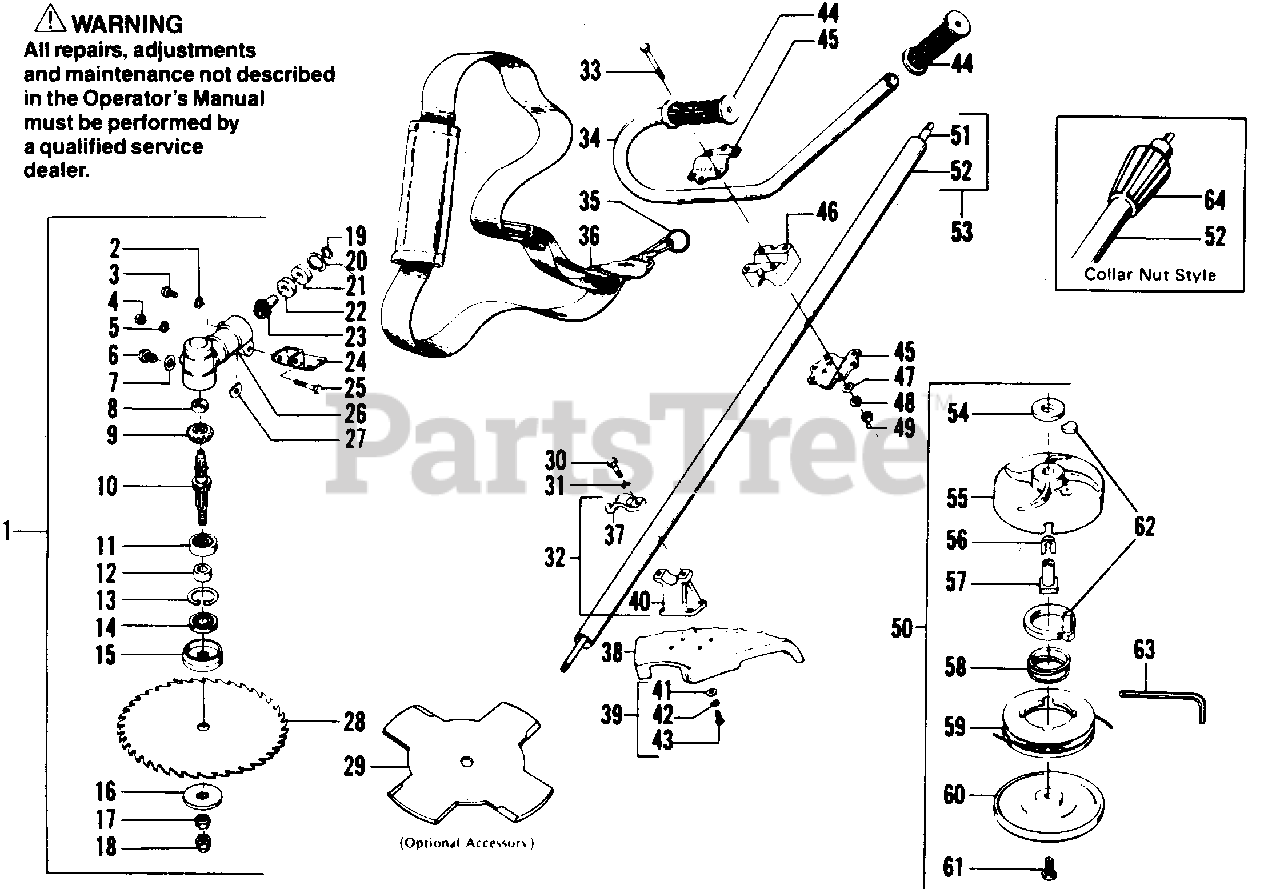

CUTTING HEAD(S) & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530093744

Gear Box Ass'y w/fasteners (Inc. 2-27)

$

$

Not available

2

Poulan 530091578

Lockwasher - Housing Bolt

$

$

Not available

3

Poulan 530091579

Bolt - 6 x 12mm

$

$

Not available

4

Poulan 530093703

Nut - 6mm - Housing (Gear Box)

$

$

Not available

5

Poulan 530091578

Lockwasher - 6mm - Housing (Gear Box)

$

$

Not available

6

Poulan 530091581

Oil Plug

$

$

Not available

7

Poulan 530091582

Washer

$

$

Not available

8

Poulan 530091586

Bearing - Gear Box

$

$

Not available

9

Poulan 530091587

Gear - Bevel

$

$

Not available

10

Poulan 530091588

Shaft - Splined Drive

$

$

Not available

11

Poulan 530091598

Ball Bearing

$

$

Not available

12

Poulan 530091591

Collar - Shaft

$

$

Not available

13

Poulan 530091592

Snap Ring

$

$

Not available

14

Poulan 530091589

Oil Seal

$

$

Not available

15

Poulan 530092143

Blade Adaptor - Upper

$

$

Not available

16

Poulan 530091594

Blade Adaptor - Lower

$

$

Not available

17

Poulan 530091595

Locknut

$

$

Not available

18

Poulan 530091596

Nut

$

$

Not available

19

Poulan 530091573

Snap Ring - Gear Housing

$

$

Not available

20

Poulan 530091574

Snap Ring - Gear Housing Bearing

$

$

Not available

21

Poulan 530091575

Bearing - Sealed Pinion Gear

$

$

Not available

22

Poulan 530092329

Bearing - Pinion Gear

$

$

Not available

23

Poulan 530091576

Pinion Gear

$

$

Not available

24

Poulan 530093706

Bracket-Shield to Gear Box, See Service Ref.1

$

$

Not available

25

Poulan 530093704

Bolt 6 x 42mm - Housing (Gear Box)

$

$

Not available

26

Poulan 530091585

Housing - Gear Box

$

$

Not available

27

Poulan 530091584

Fiber - Filler Washer

$

$

Not available

28

Poulan 952701547

10" Brush Blade

$

$

Not available

29

Poulan 952701546

8" Weed Blade (Optional)

$

$

Not available

30

Poulan 530091616

Bolt - 5 x 25mm

$

$

Not available

31

Poulan 530091615

Washer - 5mm

$

$

Not available

32

Poulan 530091569

Shield Mounting Bracket Ass'y (Inc. 37 & 40)

$

$

Not available

33

Poulan 530015405

Bolt -#1/4 - 20 x 1 - 7/8" - Handlebar

$

$

Not available

34

Poulan 530093169

Handlebar

$

$

Not available

35

Poulan 530092231

Key-Ring - Shoulder Strap

$

$

Not available

36

Poulan 530093086

Shoulder Harness Strap

$

$

Not available

37

Poulan 530091613

Shield Mounting Bracket - Top

$

$

Not available

38

Poulan 530093743

Shield w/fasteners

$14.99

$

Usually ships in 3-10 days

0

39

Poulan 530091572

Shield Mounting Kit (Inc. 41,42,43 - 4 each)

$

$

Not available

40

Poulan 530091614

Shield Mounting Bracket - Bottom

$

$

Not available

41

Poulan 530091622

Washer - 4mm - Flat

$

$

Not available

42

Poulan 530091623

Lockwasher - 4mm

$

$

Not available

43

Poulan 530093705

Screw - 4mm x 16mm

$1.49

$

Usually ships in 3-10 days

0

44

Poulan 530092086

Grip - Handlebar

$

$

Not available

45

Poulan 530092079

Handlebar Clamp

$

$

Not available

46

Poulan 530092084

Handlebar Block

$13.99

$

Usually ships in 3-10 days

0

47

Poulan 530001503

Washer - Handlebar

$

$

Not available

48

Poulan 530001642

Lockwasher - Handlebar

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530015197

Nut - #1/4 - 20

$6.49

$

In Stock, Qty 5

0

50

Poulan 530093954

Cutting Head Assembly (Inc. 54-63)

$

$

Not available

51

Poulan 530093087

Drive Shaft

$

$

Not available

52

48" Drive Shaft Housing w/bearings

$

$

Not available

52

Poulan 530092113

Collar Nut Style (Incl. #64)

$117.99

$

Usually ships in 3-10 days

0

52

Poulan 530093088

Pinch Clamp Style

$

$

Not available

53

Poulan 530092363

48" Drive Shaft Housing and Drive Shaft Ass'y (Inc. 51 & 52)

$

$

Not available

54

Poulan 530091664

Spacer

$

$

Not available

55

Poulan 530091656

Hub

$21.99

$

Usually ships in 3-10 days

0

56

Poulan 530091425

Line Saver

$

$

Not available

57

Poulan 530091423

Drive Adaptor

$

$

Not available

58

Poulan 530091657

Spring

$

$

Not available

59

Poulan 952701526

Spool w/line
(Superseded to 952711515)

$

$

Not available

60

Poulan 530091424

Cover - Cutting Head

$

$

Not available

61

Poulan 530091662

Screw - #3/8 - 16 x 7/8" - Cover

$

$

Not available

62

Poulan 530093602

Release Button Ass'y (Incl. Lock Ring)

$

$

Not available

63

Poulan 530091663

Allen Wrench - Cutting Head

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530011726

Collar Nut

$

$

Not available

Poulan 530064696

Operator's Manual

$

$

Not available
