265 ACX - Husqvarna Automower Robotic Lawn Mower (2013-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

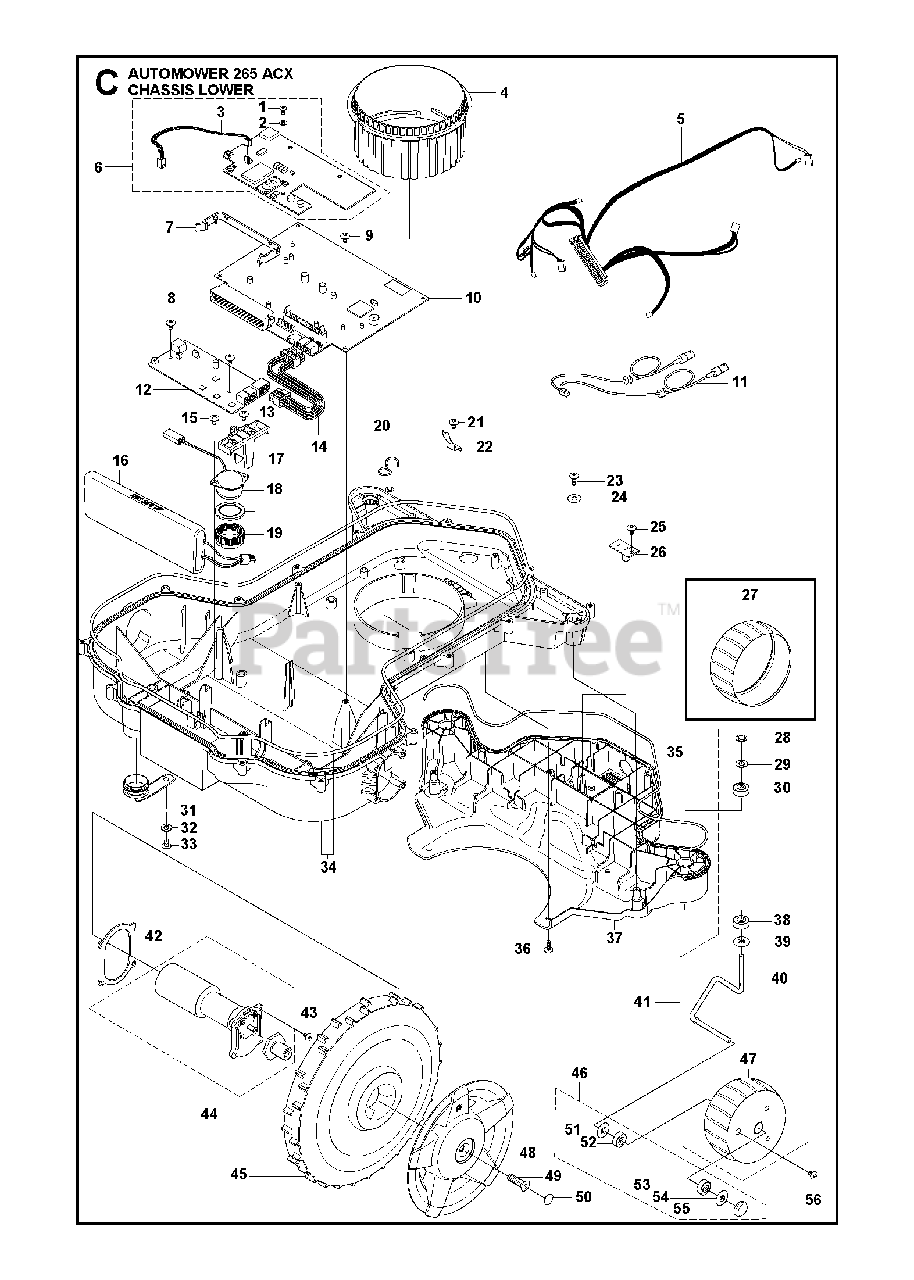

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 522597101

SCREW GSM- MODULE

Note: . 6

$

$

Not available

2

Husqvarna 522597201

WASHER GSM- MODULE

Note: . 6

$

$

Not available

3

Husqvarna 576219401

LOOM LOOM GPS TRACKING MODULE

Note: . 6

$

$

Not available

4

Husqvarna 535122102

CUTTING HEIGHT NUT

$

$

Not available

5

Husqvarna 501003704

$

$

Currently unavailable

6

Husqvarna 575242403

$

$

Currently unavailable

7

Husqvarna 578056101

CLIP MAIN CONNECTOR

$

$

Not available

7

Husqvarna 578056102

CLIP MAIN CONNECTOR 50PCS

Note: 50 pcs

$

$

Not available

8

Husqvarna 575543312

SCREW 12MM

Note: Yellow 12mm

$

$

Not available

9

Husqvarna 575543310

SCREW SILVER 10MM

Note: Silver 10mm

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 578974301

Note: (MCB)

$

$

Currently unavailable

11

Husqvarna 523056002

$

$

Currently unavailable

12

Husqvarna 581757802

Note: (PCB)

$

$

Currently unavailable

13

Husqvarna 575543314

SCREW 14MM

Note: Grey 14mm

$4.99

$

In Stock, Qty 18

0

14

Husqvarna 578898401

$

$

Currently unavailable

15

Husqvarna 502859601

SCREW

Note: 2 5x10

$

$

Not available

16

Husqvarna 578848702

Note: Li-Ion

$

$

Currently unavailable

17

Husqvarna 579734201

$

$

Currently unavailable

18

Husqvarna 501004201

HORN

$

$

Not available

19

Husqvarna 579521201

NUT BUZZER

$

$

Not available

20

Husqvarna 535139601

HOLDER

$

$

Not available

21

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 535122401

SPRING

$

$

Not available

23

Husqvarna 575543314

SCREW 14MM

Note: Grey 14mm

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

26

Husqvarna 578788801

PRINTED CIRCUIT ASSY
(Superseded to 592852201)

Note: Sensor board

$22.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: . 47

$9.49

$

In Stock, only 2 left!

0

28

Husqvarna 576019301

LOCK WASHER PUSH-ON TYPE P 8 S

Note: . 41

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 576214301

WASHER 16 OD X 6.5 ID

Note: . 41

$

$

Not available

30

Husqvarna 510144601

BALL BEARING FRONT WH

Note: . 41

$

$

Not available

31

Husqvarna 574427402

PLUG SERVICE PLUG

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 575543314

SCREW 14MM

Note: Grey 14mm

$4.99

$

In Stock, Qty 18

0

34

Husqvarna 575943902

$

$

Currently unavailable

35

Husqvarna 522039301

$

$

Currently unavailable

36

Husqvarna 575543314

SCREW 14MM

Note: Grey 14mm

$4.99

$

In Stock, Qty 18

0

37

Husqvarna 510086702

$

$

Currently unavailable

38

Husqvarna 510144601

BALL BEARING FRONT WH

Note: . 41

$

$

Not available

39

Husqvarna 535087803

WASHER FRONT WHEEL CE

Note: . 41

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 505193501

Note: . 41

$

$

Currently unavailable

41

Husqvarna 574300302

Note: Front wheel

$

$

Currently unavailable

42

Husqvarna 535139203

Gasket

Note: . 44

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 575543316

SCREW

Note: Orange 16mm

$

$

Not available

44

Husqvarna 544907003

DRIVE MOTOR

$454.99

$

Usually ships in 3-10 days

0

45

Husqvarna 544905803

REAR WHEEL
(Superseded to 544905804)

$34.99

$

Usually ships in 3-10 days

0

46

Husqvarna 574300601

KIT FRONT WHEEL BEARING KIT -

Note: Bearing. 41

$

$

Not available

47

Husqvarna 575231701

WHEEL, FRONT

Note: . 41

$20.99

$

Usually ships in 3-10 days

0

48

Husqvarna 544905102

HUB CAP

Note: . 41

$14.99

$

Usually ships in 3-10 days

0

49

Husqvarna 535139401

SCREW

Note: M8x14

$

$

Not available

50

Husqvarna 504200801

COVER WASHER

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 535087803

WASHER FRONT WHEEL CE

Note: . 41 46

$5.99

$

Usually ships in 3-10 days

0

52

Husqvarna 510144601

BALL BEARING FRONT WH

Note: . 41 46

$

$

Not available

53

Husqvarna 510144601

BALL BEARING FRONT WH

Note: . 41 46

$

$

Not available

54

Husqvarna 535087803

WASHER FRONT WHEEL CE

Note: . 41 46

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 521933102

COVER WASHER FRONT WHEEL AXEL

Note: . 41 46

$

$

Not available

56

Husqvarna 575507601

SCREW ITXPANT PT 40 THREAD

Note: . 47

$

$

Not available
