265 - International Harvester Snow Blower (1971 - 1981) Clutch Controls, Handle Bar & Extension Parts Diagram

Snow Blower

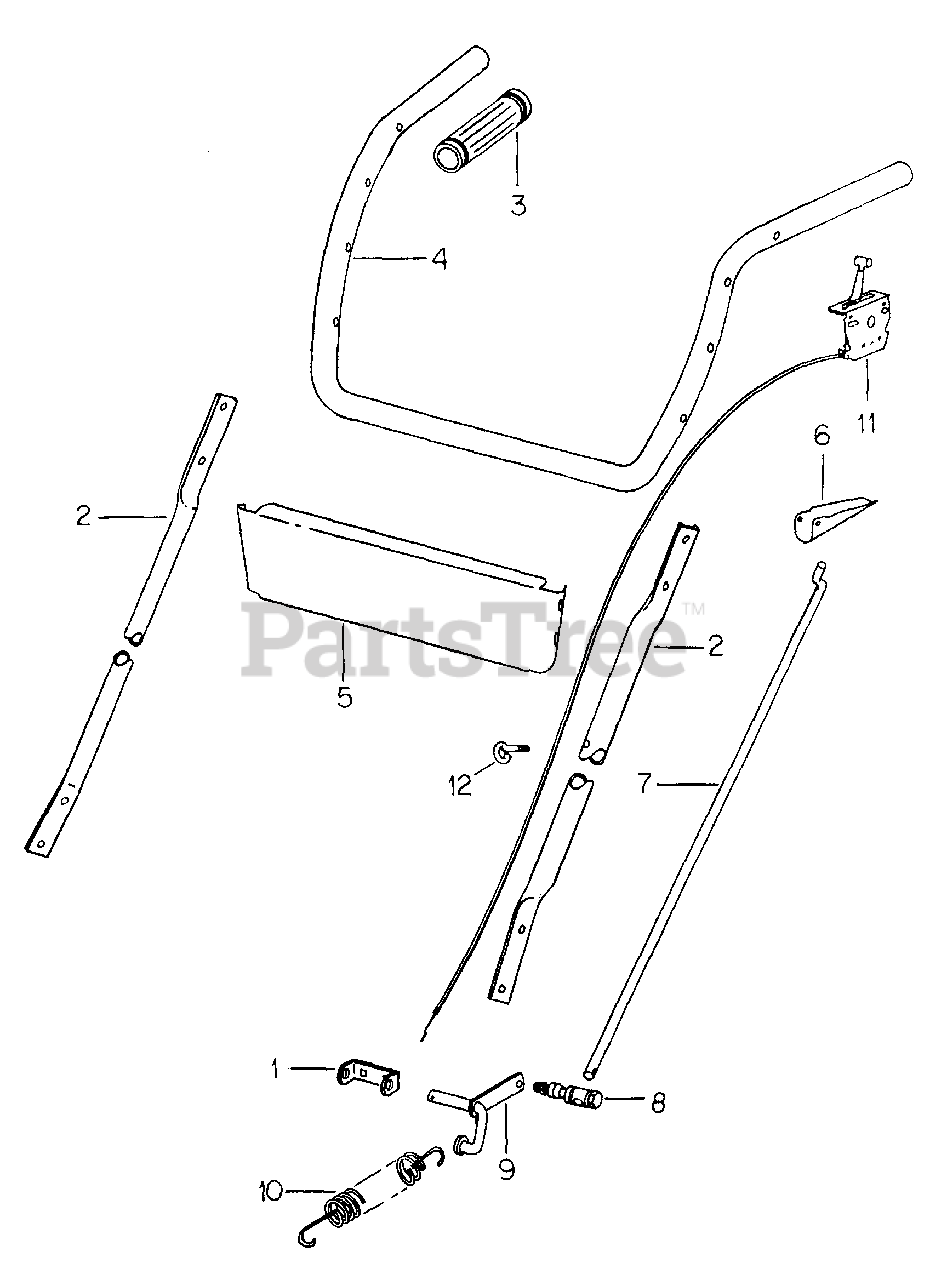

Clutch Controls, Handle Bar & Extension Parts Diagram

  • Title

1

Cub Cadet IH-549029-R1

BRACKET, PIVOT

$

$

Currently unavailable

Cub Cadet IH-14990-R1

BOLT, 5/16 X 5/8 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-549044-R1

EXTENSION, HANDLE BAR

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

3

Cub Cadet IH-386283-R1

GRIP, RUBBER HANDLE

$

$

Currently unavailable

4

Cub Cadet IH-549045-R1

BAR, HANDLE

$

$

Currently unavailable

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CAD HEX. LOCK

$

$

Currently unavailable

5

Cub Cadet IH-549719-R1

PLATE, SUPPORT

$

$

Currently unavailable

6

Cub Cadet IH-549047-R1

HANDLE, CLUTCH

$

$

Not available

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CAD HEX. LOCK

$

$

Currently unavailable

7

Cub Cadet IH-58491-C1

ROD, CLUTCH

Note: (1972 & SINCE W/PRODUCT ID NO. 3080001U1111)

$

$

Not available

7

Cub Cadet IH-549048-R1

ROD, CLUTCH ADJ

Note: (UP TO 1972 W/PRODUCT ID NO. 265U1111)

$

$

Currently unavailable

7

Cub Cadet IH-549049-R1

ROD, CLUTCH LONG

Note: (UP TO 1972 W/PRODUCT ID NO. 265U1111)

$

$

Currently unavailable

Cub Cadet IH-148145

SPRING, 3/32 RETAINING

$

$

Currently unavailable

8

Cub Cadet IH-58492-C1

JOINT, BALL

Note: (1972 & SINCE W/PRODUCT ID NO. 3080001U1111)

$

$

Currently unavailable

9

Cub Cadet IH-549030-R1

LEVER, CLUTCH

$

$

Currently unavailable

10

Cub Cadet IH-549031-R1

SPRING, TENSION

$

$

Not available

11

Cub Cadet IH-549058-R1

CONTROL, THROTTLE

$

$

Not available

Cub Cadet IH-169756

SCREW, 10-32 X 1/2 SLT PAN-HD TAP

$

$

Currently unavailable

Cub Cadet IH-549059-R1

CLIP, SNAP ON

$

$

Not available

12

Cub Cadet IH-549046-R1

EYEBOLT

$

$

Not available

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable
