265 - International Harvester Snow Blower (1971 - 1981) Engine Crankcase Parts Diagram

Snow Blower

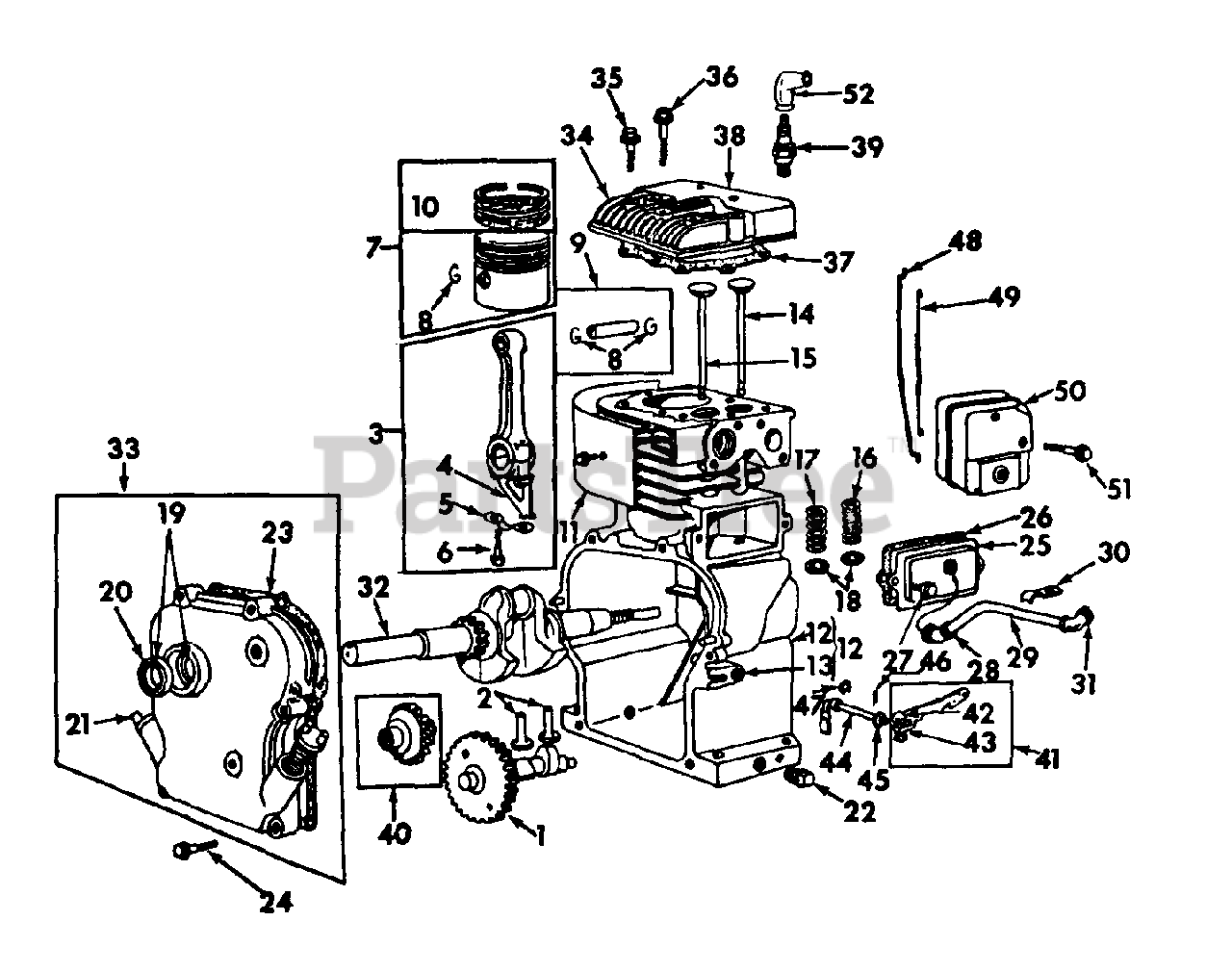

Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet IH-549354-R1

CAMSHAFT

$

$

Not available

2

Cub Cadet IH-549355-R1

TAPPET, VALVE

$

$

Not available

3

Cub Cadet IH-549358-R91

ROD ASSY, CONNECTING - STD
(Superseded to BS-299430)

$40.99

$

Usually ships in 2-12 days

0

4

Cub Cadet IH-549360-R1

DIPPER, CONNECTING ROD

$

$

Currently unavailable

5

Cub Cadet IH-549361-R1

LOCK, SCREW HEAD

$

$

Currently unavailable

6

Cub Cadet IH-549362-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

7

Cub Cadet IH-549366-R91

PISTON ASSY, STD

$

$

Not available

8

RETAINER, PISTON PIN

Note: (NOT SERVICED SEPARATELY. ORDER PIN ASSY, IH-549367-R1)

$

$

Not available

9

Cub Cadet IH-549367-R1

PIN ASSY, PISTON - STD
(Superseded to BS-298909)

$9.99

$

In Stock, only 1 left!

0

10

Cub Cadet IH-539658-R1

RING SET, PISTON CHROME - STD

$

$

Not available

Cub Cadet IH-539659-R1

RING SET, PISTON - STD
(Superseded to BS-298982)

$53.99

$

In Stock, only 2 left!

0

11

Cub Cadet IH-549375-R1

SHIELD CYLINDER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

12

Cub Cadet IH-549383-R91

CYLINDER ASSY, ENGINE

$

$

Currently unavailable

13

BUSHING, GOVERNOR SHAFT

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

14

Cub Cadet IH-549387-R1

VALVE, INTAKE
(Superseded to BS-261044S)

$23.99

$

In Stock, only 2 left!

0

15

Cub Cadet IH-549388-R1

VALVE, EXHAUST
(Superseded to BS-211119S)

$

$

Not available

16

Cub Cadet IH-549865-R1

SPRING, INTAKE VALVE

$

$

Currently unavailable

17

Cub Cadet IH-539668-R1

SPRING, EXHAUST VALVE

$

$

Not available

18

Cub Cadet IH-549389-R1

RETAINER, VALVE SPRING
(Superseded to BS-692194)

$6.49

$

In Stock, only 2 left!

0

19

BUSHING & OIL SEAL, COVER

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

20

Cub Cadet IH-549403-R91

OIL SEAL & SPACER, COVER

$

$

Currently unavailable

21

Cub Cadet IH-549404-R1

PLUG, OIL FILLER
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet IH-444576

PLUG, 1/4-18 AUTOMOTIVE SQ-HD OIL DRAIN
(Superseded to 751-3001)

$

$

Not available

23

GASKET, CRANKCASE

Note: (NOT SERVICED SEPARATELY. ORDER KIT, IH-549469-R91)

$

$

Not available

24

Cub Cadet IH-549406-R1

SCREW, CRANKCASE COVER MTG

$

$

Currently unavailable

25

Cub Cadet IH-549413-R1

BREATHER, VALVE CHAMBER

$

$

Currently unavailable

26

GASKET, VALVE COVER

Note: (NOT SERVICED SEPARATELY, ORDER KIT, IH-549469-R91)

$

$

Not available

27

Cub Cadet IH-549415-R1

SCREW, BREATHER MTG
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet IH-549416-R1

GROMMET, BREATHER
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-549417-R1

TUBE, BREATHER

$

$

Currently unavailable

30

Cub Cadet IH-549418-R1

CLAMP, BREATHER TUBE

$

$

Currently unavailable

31

Cub Cadet IH-549419-R1

GROMMET, BREATHER TUBE
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet IH-549423-R1

CRANKSHAFT

$

$

Not available

33

Cub Cadet IH-549401-R1

COVER, CRANKCASE

$

$

Not available

34

Cub Cadet IH-549450-R1

HEAD, CYLINDER

$

$

Not available

35

Cub Cadet IH-549451-R1

SCREW, CYL HEAD-SHORT
(Superseded to BS-691640)

$3.99

$

In Stock, only 4 left!

0

36

Cub Cadet IH-549452-R1

SCREW, CYL HEAD-LONG

$

$

Not available

37

GASKET, CYLINDER HEAD

Note: (NOT SERVICED SEPARATELY, ORDER KIT, IH-549469-R91)

$

$

Not available

38

Cub Cadet IH-549378-R1

COVER, CYLINDER HEAD

$

$

Not available

39

IH-CJ8

PLUG, SPARK, CHAMPION

$

$

Not available

40

Cub Cadet IH-549884-R1

GEAR, GOVERNOR

$

$

Currently unavailable

Cub Cadet IH-373170-R1

WASHER, GOVERNOR GEAR

$

$

Currently unavailable

41

Cub Cadet IH-549894-R91

LEVER ASSY, GOVERNOR

$

$

Currently unavailable

42

BOLT, GOVERNOR LEVER

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

43

WASHER, GOVERNOR LEVER

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

44

Cub Cadet IH-549897-R1

CRANK, GOVERNOR

$

$

Currently unavailable

45

Cub Cadet IH-549898-R1

WASHER, GOVERNOR CRANK

$

$

Currently unavailable

46

Cub Cadet IH-549899-R1

COTTER, GOVERNOR CRANK
(Superseded to BS-93306)

$

$

Not available

47

Cub Cadet IH-268552-R1

RING, GOVERNOR CRANK RETAINER
(Superseded to BS-93307)

$6.49

$

In Stock, Qty 5

0

48

Cub Cadet IH-549905-R1

LINK, GOVERNOR

$

$

Currently unavailable

49

Cub Cadet IH-549906-R1

SPRING, GOVERNOR LINK

$

$

Not available

50

Cub Cadet IH-79197-C1

MUFFLER, EXHAUST
(Superseded to BS-494585)

Note: (REPLACES IH-549903-R1)

$24.99

$

In Stock, only 3 left!

0

51

Cub Cadet IH-549904-R1

SCREW, MUFFLER MOUNTING

$

$

Not available

52

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 13

0

Cub Cadet IH-549469-R91

KIT, ENGINE GASKET
(Superseded to BS-495603)

Note: (CONSISTS OF THE FOLLOWING 7 ITEMS)

$34.99

$

Usually ships in 2-12 days

0

GASKET, CARBURETOR MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE - .005 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE - .009 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CYLINDER HEAD

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, FUEL TANK MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, VALVE COVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available
