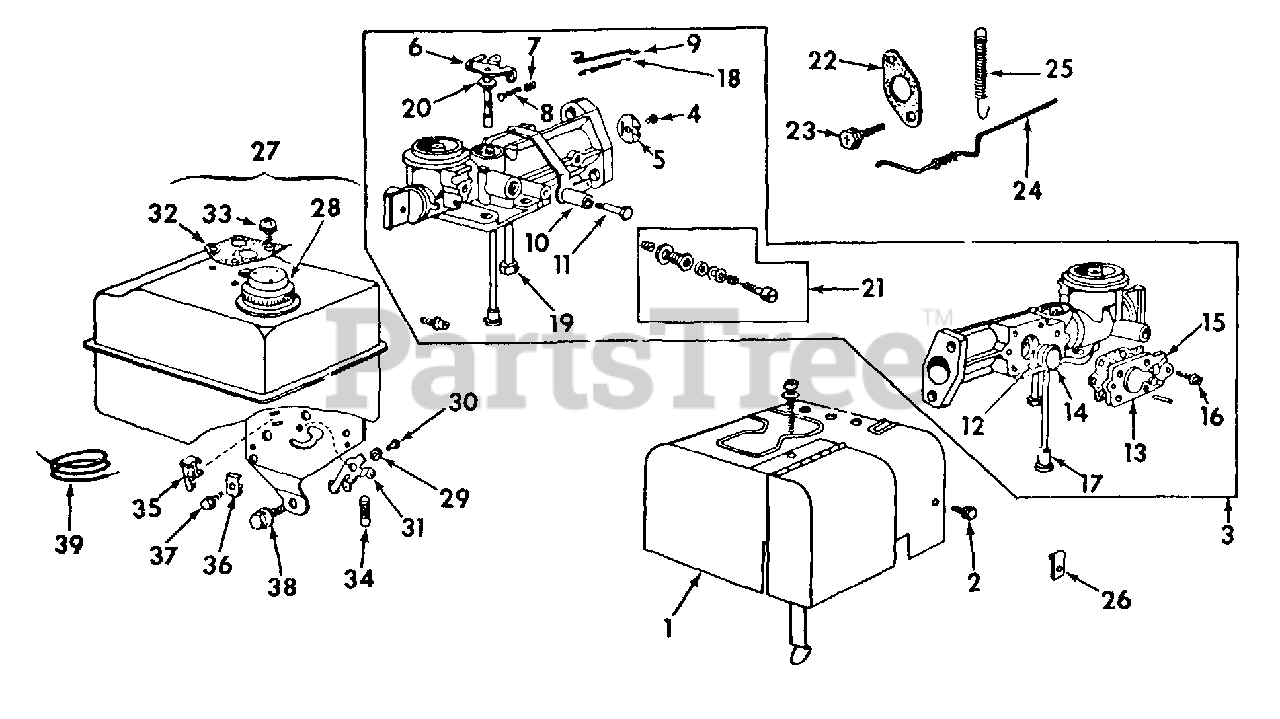

265 - International Harvester Snow Blower (1971 - 1981) Engine Fuel System Parts Diagram

Snow Blower

Engine Fuel System Parts Diagram

  • Title

1

Cub Cadet IH-549380-R1

HOOD, SNOW

$

$

Currently unavailable

2

Cub Cadet IH-549913-R1

SCREW, NO. 6 X 3/8 SHEET METAL

$

$

Currently unavailable

3

Cub Cadet IH-549473-R91

CARBURETOR ASSY
(Superseded to BS-299437)

$185.99

$

In Stock, only 3 left!

0

4

SCREW, THROTTLE VALVE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

5

VALVE, THROTTLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

6

SHAFT LEVER ASSY, THROTTLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

7

SPRING, THROTTLE ADJUSTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

8

SCREW, THROTTLE ADJUSTING SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

9

LINK, THROTTLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

10

BELLCRANK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

11

SCREW, SHOULDER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

12

SPRING, FUEL PUMP DIAPHRAGM

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

13

DIAPHRAGM

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

14

CAP, SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

15

COVER, DIAPHRAGM

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

16

SCREW, DIAPHRAGM COVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

17

SCREEN, FUEL PIPE HOUSING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

18

SPRING, THROTTLE LINK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

19

FUEL PIPE ASSY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

20

WASHER, THROTTLE SHAFT

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

21

Cub Cadet IH-549491-R91

KIT, NEEDLE VALVE

$

$

Not available

22

GASKET, CARBURETOR

Note: (NOT SERVICED SEPARATELY, ORDER KIT, IH-549 469-R91)

$

$

Not available

23

Cub Cadet IH-549493-R1

SCREW, CARBURETOR MOUNTING

$

$

Not available

24

Cub Cadet IH-549863-R1

ROD, CHOKE EXTENSION

$

$

Currently unavailable

25

Cub Cadet IH-549864-R1

SPRING, THROTTLE RETURN
(Superseded to BS-261094)

$7.99

$

Usually ships in 2-12 days

0

26

Cub Cadet IH-549873-R1

CLAMP, CHOKE ROD

$

$

Currently unavailable

Cub Cadet IH-549874-R1

WASHER, CHOKE ROD

$

$

Currently unavailable

Cub Cadet IH-22784R1

SCREW, 6-32 X 1/4 CAD SLT-PAN-HD MACH

$

$

Currently unavailable

27

Cub Cadet IH-549866-R91

TANK W/CAP, FUEL
(Superseded to BS-494592)

$

$

Not available

28

Cub Cadet IH-549867-R1

CAP, FUEL TANK

$

$

Currently unavailable

29

Cub Cadet IH-549868-R1

BUSHING, CONTROL LEVER

$

$

Currently unavailable

30

Cub Cadet IH-549869-R1

RIVET, TUBULAR

$

$

Currently unavailable

31

Cub Cadet IH-549870-R1

LEVER, GOVERNOR CONTROL

$

$

Currently unavailable

32

GASKET, TANK MOUNTING

Note: (NOT SERVICED SEPARATELY, ORDER KIT, IH-549469-R91)

$

$

Not available

33

SCREW, FUEL TANK MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

34

Cub Cadet IH-549885-R1

SPRING, GOVERNOR
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 13

0

35

SWITCH ASSY, STOP

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

36

Cub Cadet IH-549887-R1

CLAMP, CASING
(Superseded to BS-691024)

$3.99

$

In Stock, only 1 left!

0

37

Cub Cadet IH-549888-R1

SCREW W/LOCKWASHER. HEX-HD
(Superseded to BS-690804)

$2.99

$

Usually ships in 2-12 days

0

38

SCREW, TANK BRACKET MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

39

Cub Cadet IH-549890-R1

WIRE ASSY, STOP SWITCH

$

$

Not available

Cub Cadet IH-549469-R91

KIT, GASKET
(Superseded to BS-495603)

$32.99

$

In Stock, Qty 20+

0
