265 - International Harvester Snow Blower (1971 - 1981) Main Drive Housing, Axle, Drive Gears Parts Diagram

Snow Blower

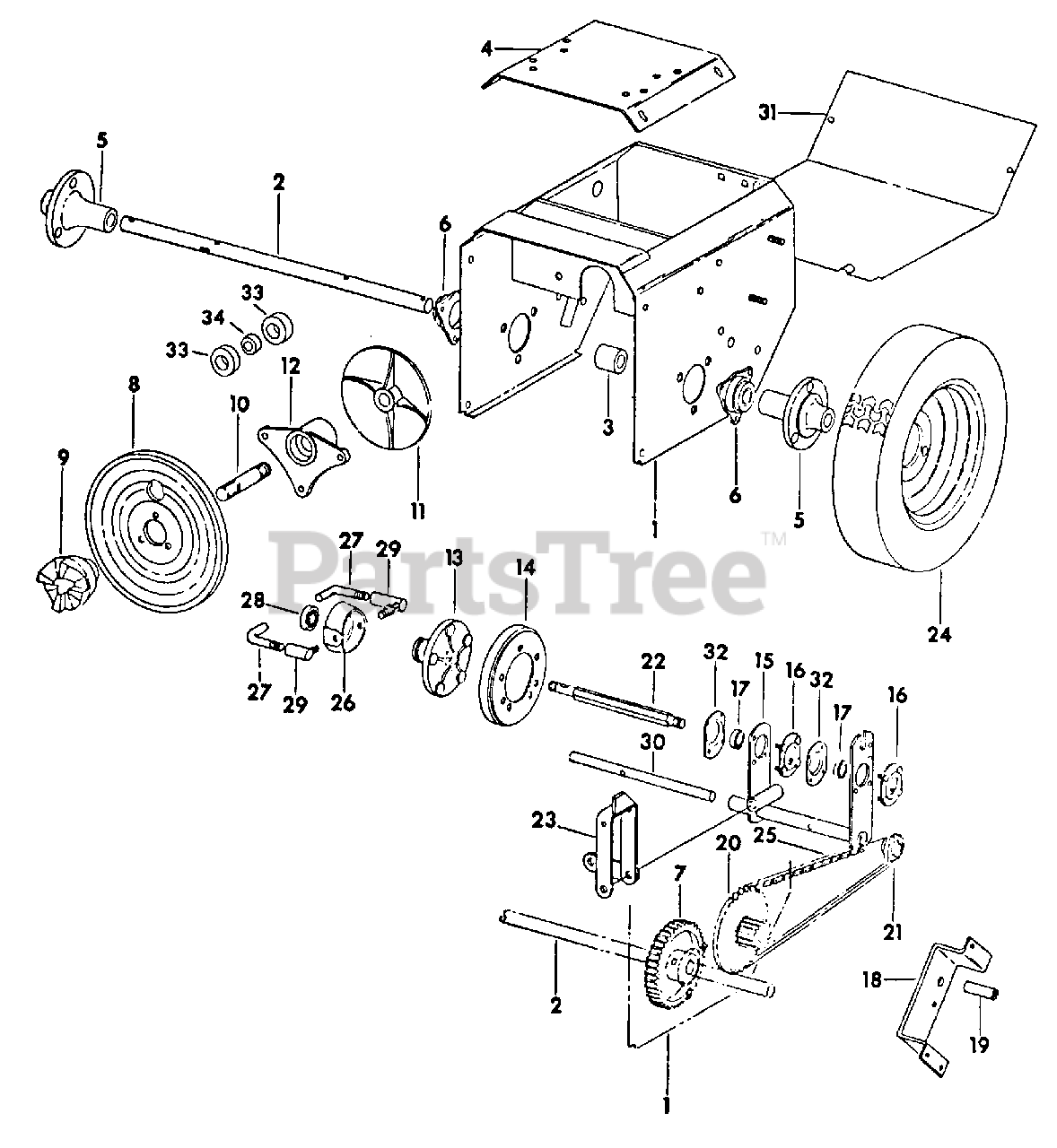

Main Drive Housing, Axle, Drive Gears Parts Diagram

  • Title

1

Cub Cadet IH-548999-R1

HOUSING. MAIN DRIVE

$

$

Currently unavailable

2

Cub Cadet IH-58489-C1

AXLE

Note: (1972 AND SINCE W/PROOUCT ID NO. 3080001U1111)

$

$

Not available

Cub Cadet IH-549720-R1

WASHER, .762 X 1.375 X 16 GA HARDENED

$

$

Currently unavailable

2

Cub Cadet IH-549003-R1

AXLE

Note: (UP TO 1972 W/PRODUCT ID NO. 265U1111)

$

$

Currently unavailable

3

Cub Cadet IH-549004-R1

SPACER, AXLE

$

$

Currently unavailable

4

Cub Cadet IH-549005-R1

PLATE, TOP

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

5

Cub Cadet IH-58490-C1

HUB, WHEEL

Note: (1972 & SINCE W/PRODUCT ID NO. 3080001U1111)

$

$

Currently unavailable

Cub Cadet IH-180085

SCREW, 5/16-18 X 1-3/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-472146-R1

NUT, 5/16-18 CDP HEX. LOCK

$

$

Not available

5

Cub Cadet IH-549006-R1

BRACKET, WHEEL MTG

Note: (UP TO 1972 W/PRODUCT ID NO. 265U1111)

$

$

Currently unavailable

6

Cub Cadet IH-56633-C1

BEARING, FLANGE AXLE

Note: (1972 & SINCE W/PRODUCT ID NO. 3080001U1111)

$

$

Currently unavailable

6

Cub Cadet IH-548986-R1

FLANGE, AXLE BRG

Note: (UP TO 1972 W/PRODUCT ID NO. 265U1111)

$

$

Currently unavailable

Cub Cadet IH-14994-R1

BOLT, 5/16 X 3/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-549007-R1

GEAR, SPUR 40 TEETH

$

$

Not available

Cub Cadet IH-106751

KEY, 3/16 X 3/4 WOODRUFF 9
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

IH-102581

SCREW, 5/16-18 X 3/8 HDLS HEX-SOC-HD CUP-PT SET

$

$

Not available

Cub Cadet IH-21000-R1

PIN, 3/16 X 1-1/4 MED COILED SPRING

$

$

Currently unavailable

8

Cub Cadet IH-549008-R1

SHEAVE

$

$

Currently unavailable

9

Cub Cadet IH-549009-R1

CLUTCH

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

10

Cub Cadet IH-549010-R1

SHAFT, DRIVEN

$

$

Currently unavailable

11

Cub Cadet IH-549011-R1

DISC, DRIVE

$

$

Not available

Cub Cadet IH-61035-C1

WASHER, .760 X 1.250 X 10 GA C-Z

$

$

Currently unavailable

12

Cub Cadet IH-549012-R1

HOUSING, BEARING

$

$

Not available

13

Cub Cadet IH-549014-R1

HUB, DRIVEN DISC

$

$

Not available

14

Cub Cadet IH-549015-R1

WHEEL, FRICTION

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

15

Cub Cadet IH-549016-R1

BRACKET, DRIVE

$

$

Currently unavailable

16

Cub Cadet IH-549017-R1

RETAINER, BRG

$

$

Currently unavailable

Cub Cadet IH-549715-R1

NUT, GRIPCO CENTERLOCK

$

$

Currently unavailable

17

Cub Cadet IH-549716-R91

BEARING, BALL

$

$

Not available

Cub Cadet IH-454319-R1

RING, RETAINING

$

$

Not available

18

Cub Cadet IH-549019-R1

BRACKET, TRANSFER

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16-18 REG LOCK

$

$

Currently unavailable

19

Cub Cadet IH-549020-R1

BUSHING

$

$

Not available

20

Cub Cadet IH-549021-R1

SPROCKET, SPUR GEAR

$

$

Not available

Cub Cadet IH-549655-R1

BUSHING, BRONZE
(Superseded to 941-0181)

$

$

Not available

Cub Cadet IH-15123-R1

BOLT, 5/16-18 X 2-3/4 SQ-NK CRG

$

$

Currently unavailable

21

Cub Cadet IH-549022-R1

SPROCKET 9 TEETH

$

$

Not available

22

Cub Cadet IH-549023-R1

SHAFT, HEX.

$

$

Not available

Cub Cadet IH-685547-R1

NUT, 1/2-20 HEX. LOCK

$

$

Currently unavailable

23

Cub Cadet IH-549025-R1

BRACKET, SHIFTING

$

$

Currently unavailable

Cub Cadet IH-186283

SCREW, 3/8-16 X 3-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 HEX. LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet IH-549026-R1

WHEEL W/TIRE ASSY

$

$

Currently unavailable

Cub Cadet IH-180175

SCREW, 1/2-13 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 ZND REG LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

NUT, 1/2-13 ZND HEX.
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

25

CHAIN, ROLLER

$

$

Not available

26

Cub Cadet IH-549027-R1

COLLAR, BRG

$

$

Currently unavailable

27

Cub Cadet IH-549028-R1

LINK, SHIFT

$

$

Not available

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COTTER
(Superseded to 914-0474)

$

$

Not available

28

Cub Cadet IH-549718-R91

BEARING, BALL

$

$

Not available

29

Cub Cadet IH-19322-R1

JOINT, 1/4-28 BALL

$

$

Not available

30

Cub Cadet IH-549024-R1

SHAFT, PIVOT

$

$

Currently unavailable

Cub Cadet IH-103386

PIN, 1/8 X 1-1/4 COT.

$

$

Currently unavailable

31

Cub Cadet IH-549032-R1

PLATE, BOTTOM GUARD

$

$

Currently unavailable

Cub Cadet IH-169756

SCREW, 10-32 X 1/2 SLT PAN-HD TAP.

$

$

Currently unavailable

32

Cub Cadet IH-549018-R1

RETAINER, BRG

$

$

Currently unavailable

33

Cub Cadet IH-475627-R91

BEARING, BALL

$

$

Not available

34

Cub Cadet IH-549013-R1

SPACER, BEARING

$

$

Currently unavailable

Cub Cadet IH-475879-R91

CHAIN, LINKS

$

$

Currently unavailable

Cub Cadet IH-1306D

CONNECTING LINK
(Superseded to 913-0723)

$

$

Not available

$

$

Not available
