265 RX - Husqvarna String Trimmer (SN: 20023100001 - 20145199999) IGNITION SYSTEM Parts Diagram

String Trimmer

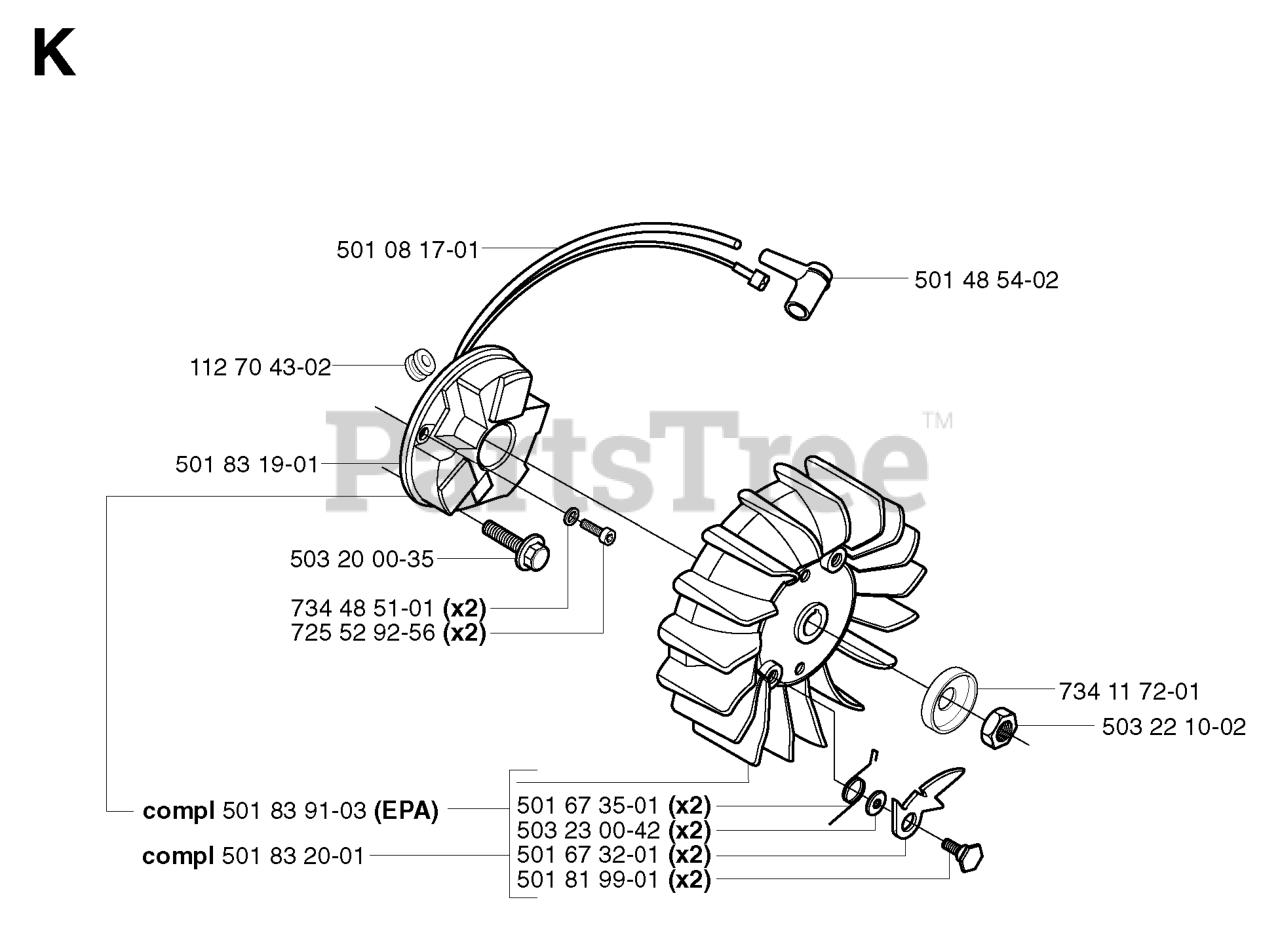

IGNITION SYSTEM Parts Diagram

  • Title

734 11 72-01

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

503 23 00-42

Husqvarna 503230042

WASHER

$3.49

$

Usually ships in 3-10 days

0

112 70 43-02

Husqvarna 112704302

Grommet

$

$

Not available

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$16.99

$

In Stock, Qty 20+

0

501 67 35-01

Husqvarna 501673501

SPRING

$3.49

$

In Stock, Qty 20+

0

501 83 20-01

Husqvarna 501832001

FLYWHEEL

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$5.49

$

In Stock, Qty 9

0

734 48 51-01

Husqvarna 734485101

FLAT WASHER 4.3X8

$

$

Not available

725 52 92-56

Husqvarna 725529256

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, only 1 left!

0

501 83 19-01

Husqvarna 501831901

IGNITION COIL

$

$

Not available

501 83 91-03

Husqvarna 501839103

IGNITION MODULE

Note: EPA

$

$

Not available

501 08 17-01

Husqvarna 501081701

REPAIR CABLE

$34.99

$

Usually ships in 3-10 days

0

503 22 10-02

Husqvarna 503221002

NUT M10X1

$70.99

$

In Stock, only 4 left!

0

503 20 00-35

Husqvarna 503200035

Screw

$

$

Not available

501 67 32-01

Husqvarna 501673201

PAWL

$7.99

$

In Stock, Qty 20+

0
