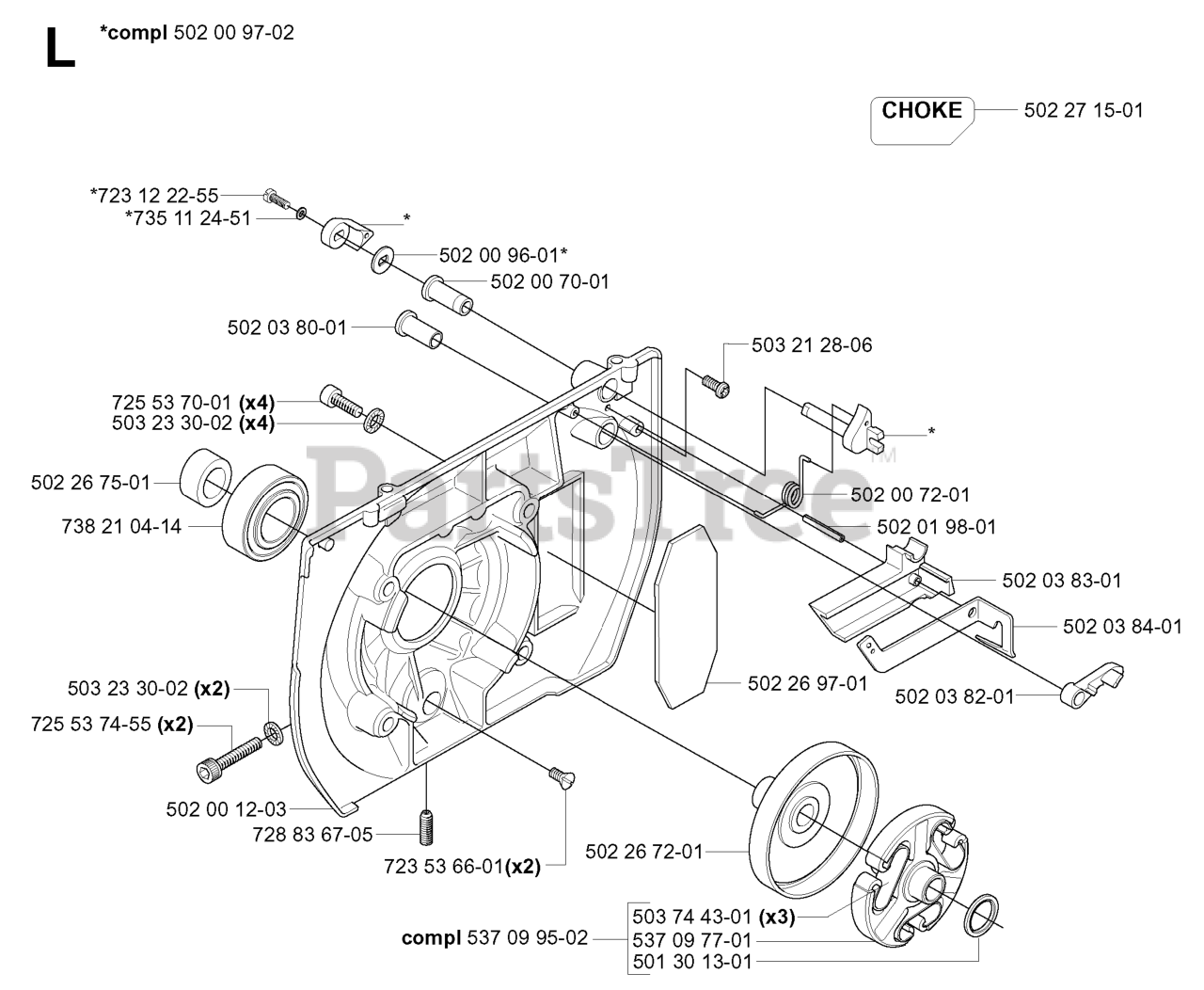

265 RX - Husqvarna String Trimmer CLUTCH Parts Diagram

String Trimmer

CLUTCH Parts Diagram

  • Title

502 26 72-01

Husqvarna 502267201

CLUTCH DRUM

$

$

Not available

503 74 43-01

Husqvarna 503744301

CLUTCH SPRING

$9.49

$

In Stock, only 2 left!

0

502 00 96-01

Husqvarna 502009601

Washer

$

$

Not available

537 09 95-02

Husqvarna 537099502

CLUTCH

$

$

Not available

502 03 84-01

Husqvarna 502038401

SPRING

$

$

Not available

502 00 70-01

Husqvarna 502007001

BUSHING

$

$

Not available

502 26 97-01

Husqvarna 502269701

PARTITION

$

$

Not available

502 03 82-01

Husqvarna 502038201

LEVER

$8.07

$

Usually ships in 3-10 days

0

502 03 80-01

Husqvarna 502038001

BUSHING

$

$

Not available

537 09 77-01

Husqvarna 537097701

CLUTCH

$

$

Not available

502 00 12-03

Husqvarna 502001203

Cover

$

$

Not available

502 03 83-01

Husqvarna 502038301

SPRING RETAINER

$

$

Not available

502 00 97-02

Husqvarna 502009702

CHOKE LOCK CONTROL

$18.45

$

Usually ships in 3-10 days

0

725 53 74-55

Husqvarna 725537455

SCREW MC6S 6X30

$4.99

$

In Stock, only 3 left!

0

502 00 72-01

Husqvarna 502007201

SPRING

$3.49

$

Usually ships in 3-10 days

0

738 21 04-14

Husqvarna 738210414

BALL BEARING

$

$

Not available

723 53 66-01

Husqvarna 723536601

Screw

$

$

Not available

503 23 30-02

Husqvarna 503233002

SPRING WASHER 6.4X10

$2.23

$

Usually ships in 3-10 days

0

728 83 67-05

Husqvarna 728836705

Screw Sk6ss 6x14

$

$

Not available

503 23 30-02

Husqvarna 503233002

SPRING WASHER 6.4X10

$2.23

$

Usually ships in 3-10 days

0

502 01 98-01

Husqvarna 502019801

PIN

$

$

Not available

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

502 26 75-01

Husqvarna 502267501

SPACER

$3.49

$

Usually ships in 3-10 days

0

502 27 15-01

Husqvarna 502271501

Choke

$

$

Currently unavailable

723 12 22-55

Husqvarna 723122255

SCREW MCS 3X8

$2.23

$

Usually ships in 3-10 days

0

735 11 24-51

Husqvarna 735112451

Spring Washer 3.2x6

$

$

Not available

501 30 13-01

Husqvarna 501301301

WASHER

$

$

Not available

725 53 70-01

Husqvarna 725537001

SCREW MC6S 6X20
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0
