265-WU - Troy-Bilt 179cc Engine 265-WU General Assembly Parts Diagram

179cc Engine

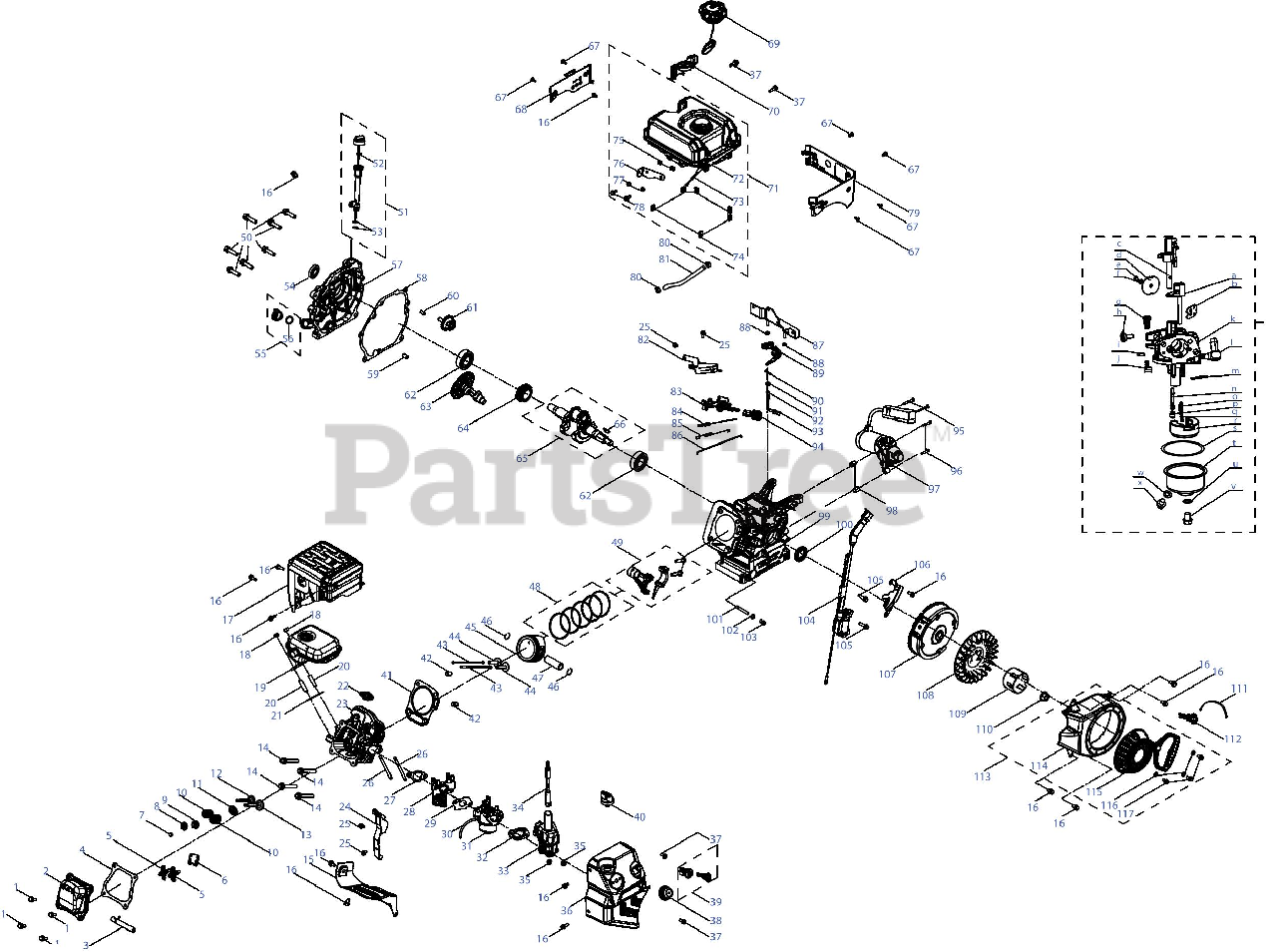

265-WU General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04968

Bolt, M6x16

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054A

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-15045

Breather Hose

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 951-11565

Gasket, Valve Cover
(Superseded to 751P11565B)

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-15139

Rocker Arm Base

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 951-12002

Valve Adjust Cap, Exhaust
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 951-12003

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 951-12000

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

11

Troy-Bilt 951-11894

Intake Valve Seal

$10.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 951-14099

Intake Vavle
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-04933

Bolt, M8x55

$3.99

$

In Stock, Qty 10

0

15

Troy-Bilt 951-11113

Shroud

$9.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-04915

Bolt, M6x12

$4.49

$

In Stock, Qty 8

0

17

Troy-Bilt 951-15155

Muffler Guard

$69.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

19

Troy-Bilt 951-15158

Muffler

$75.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-04911

Stud, M8x34

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 951-11289

Gasket, Muffler
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 8

0

22

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 951-14928

Cylinder Head
(Superseded to 751P14928A)

$45.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 951-15185

Snow Guard

$12.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 710-05103

Bolt, M6x12

$4.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 951-15580

Stud, M6x90

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 951-15160

Insulator

$7.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 951-11569A

Gasket, Carburetor
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 935-05038

Fuel Hose,3.2x6.5x170

$12.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 951-15162

Carburetor

$101.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 951-11897

Gasket, Air Filter
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 951-15186

Heater Box

$

$

Not available

34

Troy-Bilt 951-15581

Choke Linkage
(Superseded to 751P18086)

$5.99

$

In Stock, Qty 7

0

35

Troy-Bilt 712-05015

Nut, M6

$6.99

$

In Stock, only 4 left!

0

36

Troy-Bilt 951-15164

Control Panel
(Superseded to 951-15164A)

$25.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 710-05003

Bolt, M6x18

$4.49

$

In Stock, Qty 5

0

38

Troy-Bilt 951-10639A

Primer

$15.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 951-15022

Stop Switch
(Superseded to 951-15022A)

$10.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 951-15450

Choke Lever

$

$

Not available

41

Troy-Bilt 951-11898

Gasket, Cylinder Head

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 715-04108

Pin, 10x16

$4.49

$

In Stock, only 3 left!

0

43

Troy-Bilt 951-14105

Push Rod
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 951-11899

Tappet

$8.49

$

In Stock, Qty 6

0

45

Troy-Bilt 951-11900

Piston

$34.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 951-11632

Circlip

$4.49

$

In Stock, only 2 left!

0

47

Troy-Bilt 951-11901

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 951-11688

Piston Ring Set

$19.99

$

In Stock, only 4 left!

0

49

Troy-Bilt 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 710-04932

Bolt, M8x32

$4.49

$

Usually ships in 3-6 days

0

51

Troy-Bilt 951-05020A

Dipstick
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 921-04663

O-Ring, 21x2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 951-12397

O-Ring, 15.2x1.5

$5.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-11368

Oil Seal, 25x41.25x6
(Superseded to 751P11368A)

$3.49

$

In Stock, only 3 left!

0

55

Troy-Bilt 931-09966

Oil Plug

$6.49

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-11577

O-Ring, 15.8x2.5

$4.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 10

0

59

Troy-Bilt 715-04096

Pin, 9x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 715-04092

Pin, 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 951-11576

Governor Gear
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11369

Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-15128

Camshaft

$48.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-15130

Drive Timing Gear

$14.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-15129

Crankshaft

$122.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

67

Troy-Bilt 951-15189

Bolt, M5x14

$4.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 951-15191

Decorative Sheet, Right

$7.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-15172

Fuel Cap

$

$

Not available

70

Troy-Bilt 951-15170

Decorative Cover

$6.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 951-15173

Fuel Tank Assembly

$

$

Not available

72

Fuel Tank

$

$

Not available

73

Troy-Bilt 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 951-15578

Fuel Tank Mount Thread Tab

$3.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 712-05186

Nut, M6

$4.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 951-15577

Fuel Tank Mount Tab

$4.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 736-05197

Washer, 6.5x1.5x12

$4.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 710-06567

Bolt, M6x20

$4.49

$

Usually ships in 3-6 days

0

79

Troy-Bilt 951-15231

Decorative Sheet, Left

$7.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt 951-11700

Clamp
(Superseded to 951-11700A)

$4.49

$

In Stock, only 3 left!

0

81

Troy-Bilt 951-15169

Fuel Hose, 6.3x12.5x162
(Superseded to 951-15169A)

$22.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-15168

Governor Shield

$6.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-15153

Governor Gear Bracket Assembly

$18.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-14882

Governor Spring
(Superseded to 751P19229)

$7.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 951-10664

Idle Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 10

0

86

Troy-Bilt 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, only 3 left!

0

87

Troy-Bilt 951-15174

Fuel Tank Bracket

$11.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 712-05015

Nut, M6

$6.99

$

In Stock, only 4 left!

0

89

Troy-Bilt 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 714-04078

Cotter Pin

$4.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-11902

Oil Seal, 6x11x4
(Superseded to 951-11902A)

$3.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 736-04461

O-Ring, 5.2x1.9

$3.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 951-14053

Governor Gear Shaft

$15.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 951-10757

Throttle Lever Knob
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 6

0

95

Troy-Bilt 751-15472

Screw, M4x48

$4.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 710-05182

Bolt, M6x32

$4.49

$

In Stock, only 1 left!

0

97

Troy-Bilt 951-15229

Electric Starter

$367.99

$

Usually ships in 3-6 days

0

98

Troy-Bilt 715-04088

Pin, 8x8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-14198

Crankcase

$185.99

$

Usually ships in 3-6 days

0

100

Troy-Bilt 951-11370

Oil Seal, 25x41.25x6
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

101

Troy-Bilt 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

102

Troy-Bilt 736-04440

Washer, 10x1.5x16
(Superseded to 736-04440A)

$6.99

$

In Stock, Qty 6

0

103

Troy-Bilt 710-04906

Earth Bolt

$6.99

$

In Stock, Qty 6

0

104

Troy-Bilt 951-15151

Ignition Module

$98.99

$

Usually ships in 3-6 days

0

105

Troy-Bilt 710-04919

Bolt, M6x25

$4.49

$

Usually ships in 3-6 days

0

106

Troy-Bilt 951-11109

Lower Shield

$7.49

$

Usually ships in 3-6 days

0

107

Troy-Bilt 951-12416

Flywheel
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

108

Troy-Bilt 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

In Stock, only 1 left!

0

109

Troy-Bilt 951-14887

Starter Cup

$14.99

$

Usually ships in 3-6 days

0

110

Troy-Bilt 712-04287

Nut, M14x1.5

$6.99

$

In Stock, only 1 left!

0

111

Troy-Bilt 725-06031

Tape, L=150mm

$2.49

$

Usually ships in 3-6 days

0

112

Troy-Bilt 951-10630

Stop Switch Key

$6.99

$

In Stock, Qty 17

0

113

Troy-Bilt 951-05442

Recoil Starter

$79.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 951-15228

Blower Housing

$44.99

$

Usually ships in 3-6 days

0

115

Troy-Bilt 951-15538

Recoil Starter

$70.99

$

In Stock, only 1 left!

0

116

Troy-Bilt 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

117

Troy-Bilt 710-06354

Bolt, M6x10

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 951-15162

Carburetor

$101.99

$

In Stock, only 1 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw, M3x6

$

$

Not available

f

Troy-Bilt 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Idle Jet

$

$

Not available

h

Idle Adjusting Screw

$

$

Not available

i

Mixture Screw

$

$

Not available

j

Troy-Bilt 937-05005

Primer Line

$5.99

$

Usually ships in 3-6 days

0

k

Carburetor Body

$

$

Not available

l

Fuel Nipple

$

$

Not available

m

Float Pin

$

$

Not available

n

Nozzle Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Troy-Bilt 951-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Troy-Bilt 908-05001

Float Bowl

$8.49

$

Usually ships in 3-6 days

0

u

Troy-Bilt 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, only 1 left!

0

v

Troy-Bilt 710-04945

Bolt

$4.49

$

In Stock, Qty 7

0

w

Troy-Bilt 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 15

0

x

Troy-Bilt 710-04938

Drain Bolt

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt 952Z265-WU

Complete Engine

$793.99

$

Usually ships in 3-6 days

0
