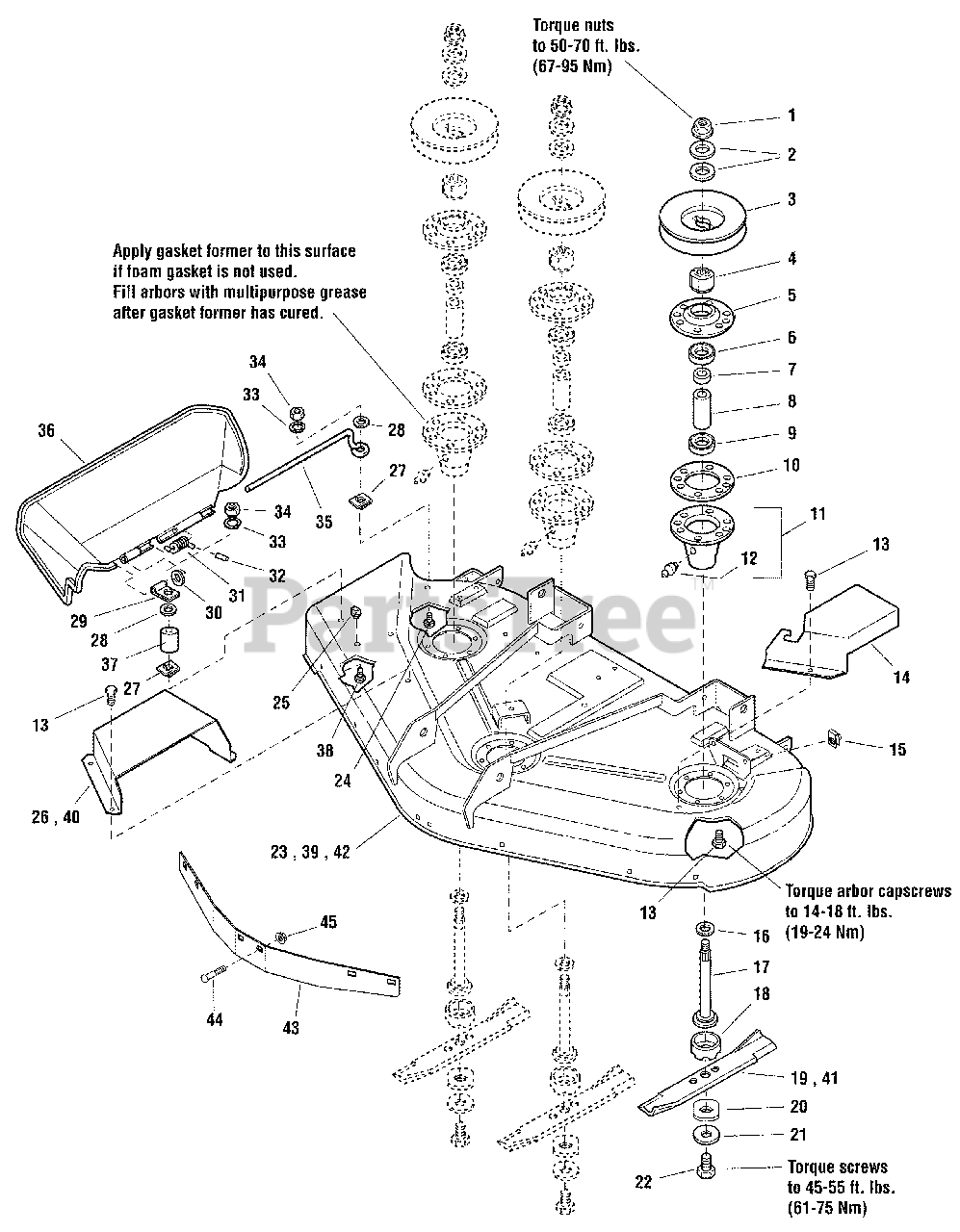

2650 (5900705) - Simplicity Champion 50" Zero-Turn Mower, 26hp 44" & 50" Mower Deck - Housing, Arbors, & Blades Group - B&S Professional Series Parts Diagram

Champion 50" Zero-Turn Mower, 26hp

44" & 50" Mower Deck - Housing, Arbors, & Blades Group - B&S Professional Series Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, HEX FLANGE, 9/16-18

$5.99

$

In Stock, Qty 19

0

2

Simplicity 1713675SM

WASHER, BELLEVILLED, 9/16

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713613SM

HUB

$15.99

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

COVER, ARBOR HOUSING

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 2108202SM

BEARING, BALL, 3/4 X 1-3/4 X 5/8

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724SM

SPACER, 21/32 X 3/4 X 5/8

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1732544SM

SPACER, 11/16 X 5/32 X 2-11/16

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897SM

BEARING, BALL, 11/16 X 1-9/16 X 15/32

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

SEAL, FOAM

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

ARBOR HOUSING ASSEMBLY

Note: (INCLUDES REF. NO. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, GREASE
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5400403CSM

GUARD, BELT - LH - ORG

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2" DEEP

$5.99

$

In Stock, Qty 9

0

16

Simplicity 1713619SM

WASHER, 9/16, BLACK

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1713609SM

SHAFT, ARBOR

$30.99

$

In Stock, Qty 9

0

18

Simplicity 1713196SM

SHIELD, GRASS, LOWER

$9.49

$

In Stock, Qty 20+

0

19

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

Note: (44" Models)

$25.99

$

In Stock, Qty 20+

0

20

Simplicity 1713089SM

WASHER, HEX, 11/16 X 2

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1656916SM

WASHER, SPRING, 15/32, BLACK

$7.49

$

In Stock, Qty 20+

0

22

Simplicity 2823471SM

BOLT, 7/16-14 X 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5600122

DECK SHELL W/ DECALS

Note: (44" Models)

$

$

Not available

24

Simplicity 1931318SM

BOLT-RD HD SH SQ NK 1/4-20X0. 875 G5 BLK

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1705115SM

PLUG,HOLE

$4.49

$

In Stock, Qty 6

0

26

Simplicity 5401091CSM

GUARD, BELT - RH, 44", SMI ORANGE

$37.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960518SM

NUT-PUSH FOR .250 DIA THREAD .500 OD BLK
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

28

Simplicity 1960353SM

WASHER-0.250(0.26IDX0.84ODX.12THK) BLK
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1704873SM

CLAMP, WIRE, .312DIA. (1) .281HOLE BLK

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1919326SM

WASHER-0.312 (0.34IDX0.75ODX.06THK) BLK

$4.49

$

In Stock, Qty 18

0

31

Simplicity 7101082SM

SPRING, TORSION, CHUTE, 44/50
(Superseded to 1759750YP)

$8.49

$

In Stock, only 1 left!

0

32

Simplicity 1723323SM

CAP, VINYL

$4.99

$

In Stock, Qty 6

0

33

Simplicity 1916964SM

LOCKWASHER, SPRING .250 BLK
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

34

Simplicity 1916622SM

NUT-HEX 1/4-20 BLK 588514
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

35

Simplicity 1706709

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 6

0

36

Simplicity 1705449SM

DEFLECTOR, BLACK

$122.99

$

In Stock, Qty 13

0

37

Simplicity 1710703SM

SPACER-0.328IDX0.499ODX0.625LG PM

$6.49

$

In Stock, only 3 left!

0

38

Simplicity 5025144X14SM

BOLT, CARRIAGE, 1/4-20 X 1.25, GD5,BLACK

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 5600233

DECK SHELL W/ DECALS

Note: (50" Models)

$

$

Not available

40

Simplicity 5048446CSM

GUARD, BELT, RH

Note: (50" Models)

$31.99

$

Usually ships in 2-12 days

0

41

Simplicity 1708229ASM

BLADE, MOWER, 18-1/8
(Superseded to 1716697ASM)

Note: (50" Models)

$24.99

$

In Stock, Qty 20+

0

42

Simplicity 5600126

DECK SHELL W/ DECALS
(Superseded to 5600126YP)

Note: (50" Export Models)

$2485.99

$

Usually ships in 2-12 days

0

43

Simplicity 1734181A

BAFFLE - FRONT 44/50 - BLACK
(Superseded to 1734181ASM)

$43.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4 CARRIAGE

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0
