26551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE MODEL NO. TVS840-8014B Parts Diagram

Walk-Behind Mower

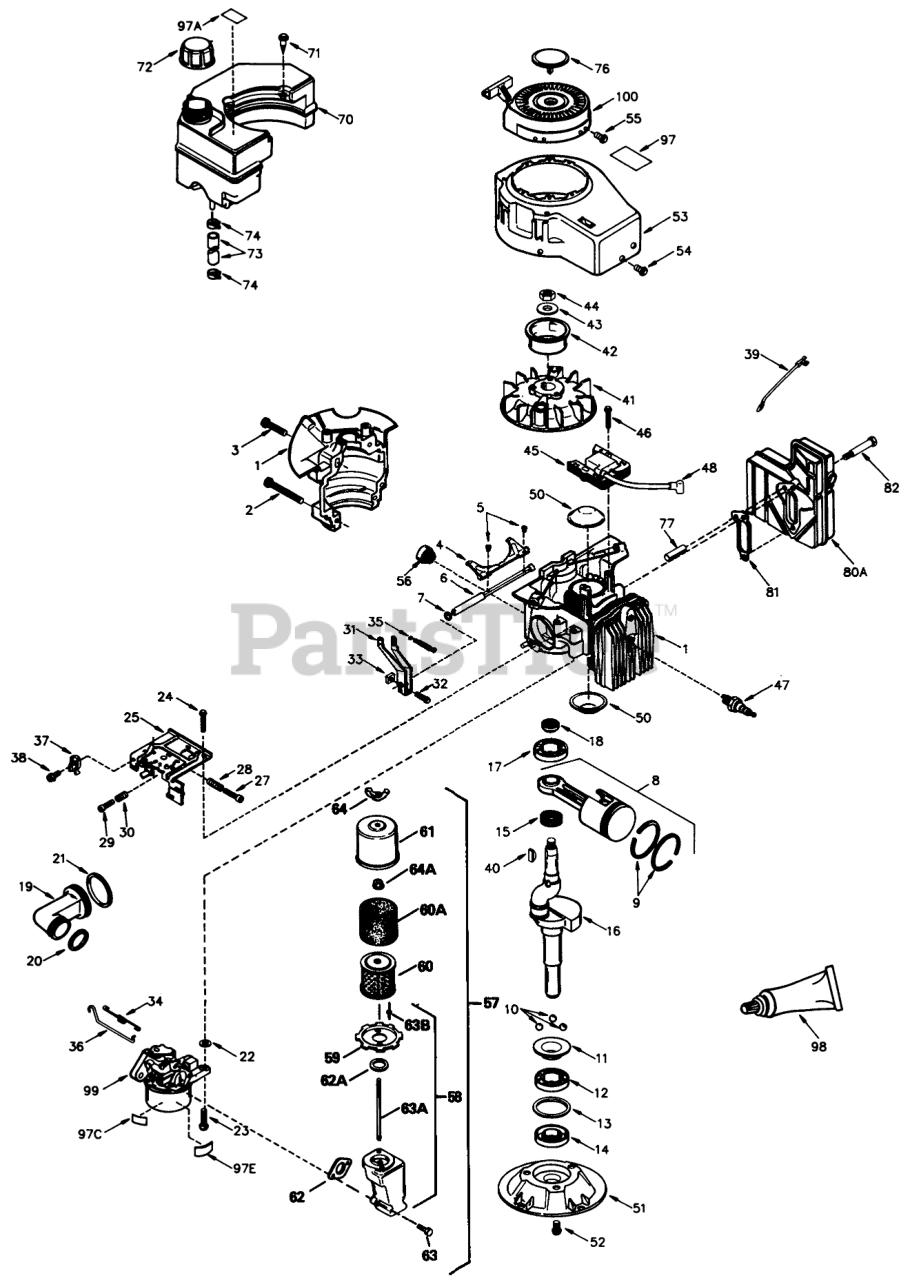

ENGINE MODEL NO. TVS840-8014B Parts Diagram

  • Title

1

Tecumseh 250294

Cylinder Assembly (Incl. Ref. # 2, 3, 50 & 56A)

$

$

Currently unavailable

2

Tecumseh 650891

Screw

$

$

Not available

3

Tecumseh 650892

Screw

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 490304

Governor Lever

$5.49

$

Usually ships in 3-12 days

0

5

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

6

Tecumseh 490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

7

Tecumseh 510337

Oil Seal

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 310279A

Piston & Rod Assembly (Incl. Ref. #9 & 15)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

9

Tecumseh 310239

Ring Set-Piston

$28.99

$

Usually ships in 3-12 days

0

10

Tecumseh 570673

Ball

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510338

Ring-Slide

$3.99

$

Usually ships in 3-12 days

0

12

Tecumseh 530158

Ball Bearing

$26.99

$

In Stock, only 1 left!

0

13

Tecumseh 530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

14

Tecumseh 510339

Oil Seal

$7.49

$

Usually ships in 3-12 days

0

15

Tecumseh 530164

Bearing-Strip

$13.99

$

Usually ships in 3-12 days

0

16

Tecumseh 290601

Crankshaft

$

$

Currently unavailable

17

Tecumseh 530161

Ball Bearing

$22.99

$

In Stock, only 1 left!

0

18

Tecumseh 510340

Oil Seal

$5.49

$

In Stock, only 1 left!

0

19

Tecumseh 570674

Intake Pipe Assembly (Incl. Ref. #20 & 21)

$

$

Not available

20

Tecumseh 510341

"O" Ring

$1.49

$

In Stock, Qty 5

0

21

Tecumseh 510342

"O" Ring

$1.49

$

In Stock, Qty 5

0

22

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, Qty 20+

0

23

Toro 792067

Screw-Hex. Washer Hd.

$

$

Currently unavailable

24

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

25

Tecumseh 570675

Control Bracket Assembly (Incl. Ref. #27-30)
(Superseded to 570675A)

$23.99

$

Usually ships in 3-12 days

0

27

Tecumseh 650606

Screw-Phillips Hd.
(Superseded to 651051)

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 32924

Spring

$1.99

$

In Stock, Qty 5

0

29

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 4 left!

0

30

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 2 left!

0

31

Tecumseh 490306

Lever-Governor

$3.99

$

Usually ships in 3-12 days

0

32

Tecumseh 29826

Screw

$1.99

$

In Stock, Qty 5

0

33

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 490307

Spring-Throttle Link

$6.49

$

In Stock, only 1 left!

0

35

Tecumseh 490308

Spring-Governor

$3.99

$

In Stock, only 1 left!

0

36

Tecumseh 490309

Link-Governor

$1.49

$

Usually ships in 3-12 days

0

37

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 650837

Screw-Hex. Hd.

$1.99

$

In Stock, only 1 left!

0

39

Tecumseh 611148

Wire-Ground

$

$

Currently unavailable

40

Tecumseh 611107

Key-Flywheel

$3.49

$

Usually ships in 3-12 days

0

41

Tecumseh 611149

Flywheel

$76.99

$

Usually ships in 3-12 days

0

42

Tecumseh 34449

Cup-Starter
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

43

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 13

0

44

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 12

0

45

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, Qty 20+

0

46

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, Qty 5

0

47

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

48

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 19

0

50

Tecumseh 570683

Cover-Port

$3.99

$

Usually ships in 3-12 days

0

51

Tecumseh 330180

Adapter

$

$

Not available

52

Toro 792067

Screw-Hex. Washer Hd.

$

$

Currently unavailable

53

Tecumseh 350430

Housing-Blower

$

$

Not available

54

Tecumseh 650894

Screw

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 650884

Screw, Hex Hd.
(Superseded to 650926)

$1.49

$

In Stock, Qty 20+

0

56

Tecumseh 430233

Filter-Fuel

$3.99

$

Usually ships in 3-12 days

0

57

Tecumseh 730575

Air Cleaner Kit (Incl. Ref. #58, 60, 60A, 61, 62, 63, 64 & 97B)
(Superseded to 730575C)

$

$

Not available

58

Tecumseh 450249

Air Cleaner Elbow Assy. (Incl. Ref. #59, 62A, 63A & 63B)
(Superseded to 450249A)

$70.99

$

Usually ships in 3-12 days

0

59

Tecumseh 34699

Bracket-Air Cleaner

$5.49

$

Usually ships in 3-12 days

0

60

Tecumseh 34782

Filter-Air Cleaner (Incl. Ref. #64A)
(Superseded to 34782B)

$13.99

$

In Stock, Qty 8

0

60A

Tecumseh 34783

Filter-Pre-Air

$3.99

$

In Stock, Qty 16

0

61

Tecumseh 34781

Body, Air Cleaner

$

$

Not available

62

Tecumseh 27272A

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 20+

0

62A

Tecumseh 34698A

Gasket, Air Cleaner

$2.99

$

In Stock, only 4 left!

0

63

Tecumseh 650163

Screw, Fil hd.

$1.99

$

In Stock, Qty 5

0

63A

Tecumseh 650901

Stud

$3.99

$

Usually ships in 3-12 days

0

63B

Rivet-Pop

$

$

Not available

64

Tecumseh 650513

Nut-Wing
(Superseded to 650825)

$1.99

$

In Stock, Qty 8

0

64A

Tecumseh 650825

Nut & Lockwasher

$1.99

$

In Stock, Qty 8

0

70

Tecumseh 410258

Fuel Tank Assy.

$42.99

$

Usually ships in 3-12 days

0

71

Tecumseh 650895

Screw-Hex. Hd.

$1.49

$

In Stock, only 2 left!

0

72

Tecumseh 410259

Cap-Fuel
(Superseded to 410286)

$

$

Not available

73

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 16

0

74

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

76

Tecumseh 35392

Plug Starter

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 390315

Pin

$3.49

$

Usually ships in 3-12 days

0

80A

Tecumseh 390316

Muffler
(Superseded to 390316A)

$85.99

$

Usually ships in 3-12 days

0

81

Toro 51343A

Gasket-Muffler

$

$

Currently unavailable

82

Tecumseh 650893

Screw-Hex. Hd.

$5.49

$

In Stock, only 2 left!

0

97

Tecumseh 34686

Decal-Name
(Superseded to 34686A)

$

$

Not available

97A

Tecumseh 550230

Decal-Fuel Mixture
(Superseded to 550230A)

$

$

Not available

97C

Tecumseh 34144

Decal-Primer

$

$

Not available

97E

Tecumseh 550234

Decal-Instruction

$

$

Not available

98

Tecumseh 510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0

99

Tecumseh 632434

Carburetor Assembly (Incl. Ref. #20)
(Superseded to 632755)

$

$

Not available

100

Tecumseh 590621

Starter-Rewind
(Superseded to 590785)

$41.99

$

In Stock, Qty 13

0
