26551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

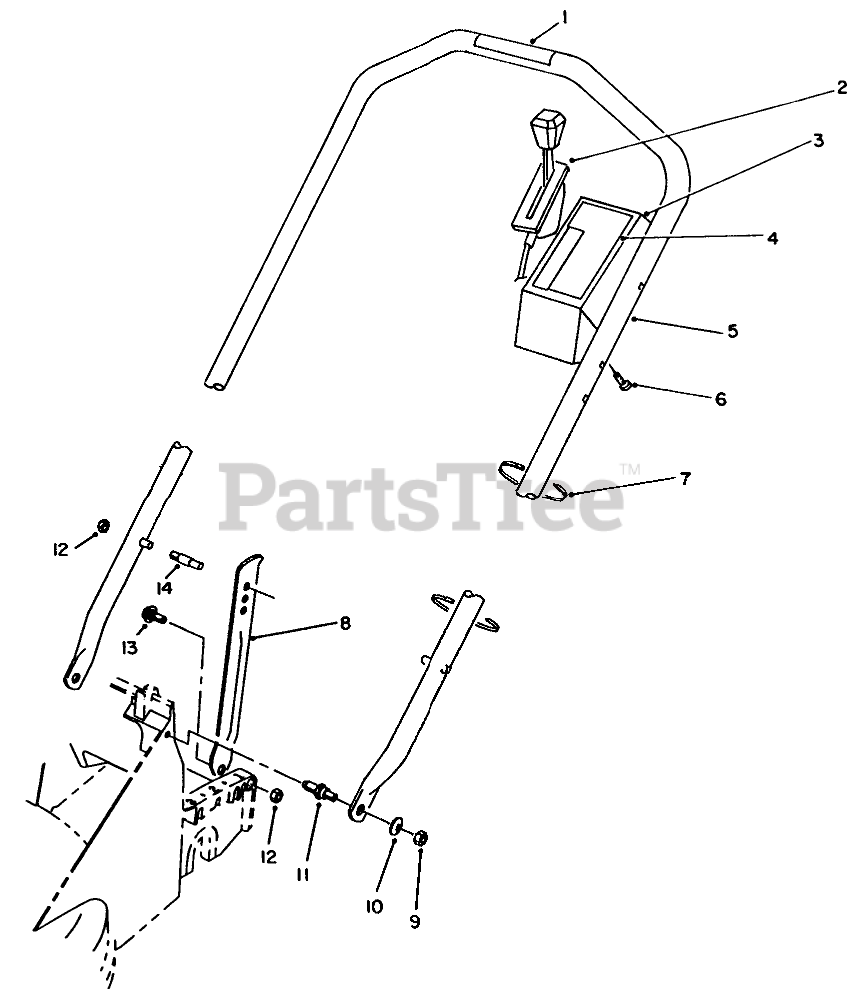

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 70-7910

DECAL - DANGER
Usually ships same day

Not available

$

$

2

Toro Part# 71-0651

Control-Throttle Bend Type #1 Sheath Lg. 54-1/2" Wire Lg. 2-3/16"
(Superseded to 71-0652)
Usually ships in 5 to 8 days

$

$87.70

0

3

Toro Part# 13-6979

Cover-Control (Incl. Ref. # 4)
Usually ships same day

Not available

$

$

4

Toro Part# 66-0590

DECAL - INSTRUCTION
Usually ships same day

Not available

$

$

5

Toro Part# 13-6969

Handle (Incl. Ref. # 1)
Usually ships same day

Not available

$

$

6

Toro Part# 32104-76

SCREW-HWHTF
Usually ships in 1 day

$

$2.23

0

7
Usually ships in 1 day

$

$0.77

0

8

Toro Part# 65-5730

HANDLE LATCH
Usually ships same day

Not available

$

$

9

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

10

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

11

Toro Part# 66-0450

SCREW - SHOULDER STUD
Usually ships same day

Not available

$

$

12

Toro Part# 3296-47

NUT-LOCK, NI
Usually ships in 1 day

$

$3.46

0

13

Toro Part# 66-0440

SCREW - SHOULDER
Usually ships same day

Not available

$

$

14

Toro Part# 49-2750

HANDLE PIN
Usually ships in 5 to 8 days

$

$26.16

0
