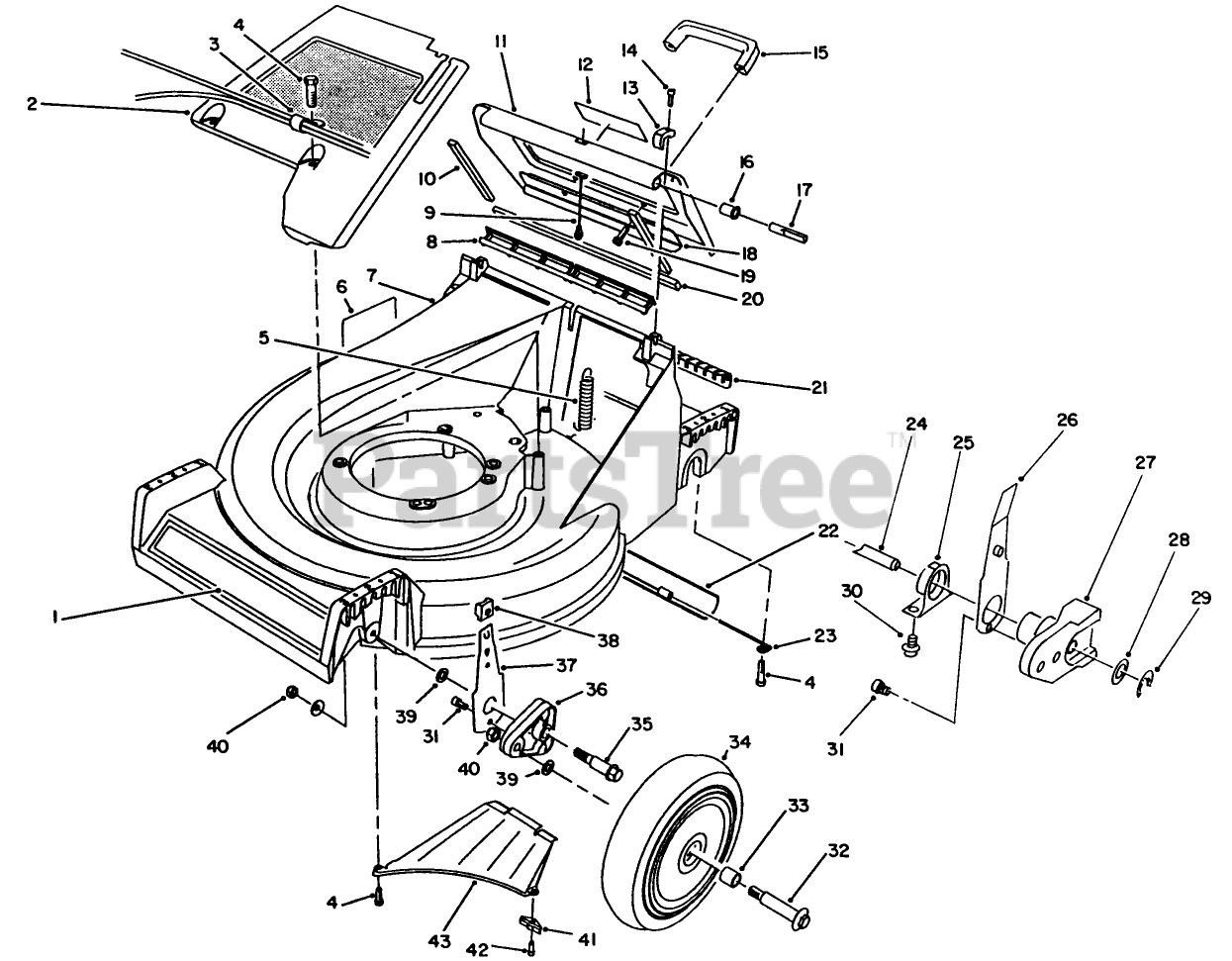

26551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 66-0470

DISCONTINUED

$

$

Not available

2

Toro 65-5660

See Supercession: 65-5660-03
(Superseded to 65-5660-03)

$59.99

$

Usually ships in 3-6 days

0

3

Toro 2412-68

CLAMP

$

$

Not available

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 11

0

5

Toro 65-5360

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0

6

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

7

Toro 13-6589

DISCONTINUED

$

$

Not available

8

Toro 65-5160

DISCONTINUED

$

$

Not available

9

Toro 65-5370

DOOR CABLE

$19.99

$

In Stock, only 1 left!

0

10

Toro 65-5480

DISCONTINUED

$

$

Not available

11

Toro 13-2189

DISCONTINUED

$

$

Not available

12

Toro 63-9050

DISCONTINUED

$

$

Not available

13

Toro 65-5140

DISCONTINUED

$

$

Not available

14

Toro 65-5210

SCREW-HSH

$

$

Not available

15

Toro 65-5100

HANDLE-DOOR

$10.99

$

In Stock, only 2 left!

0

16

Toro 65-5460

DOOR BUSHING

$3.49

$

Usually ships in 3-6 days

0

17

Toro 65-5290

DISCONTINUED

$

$

Not available

18

Toro 66-0610

DISCONTINUED

$

$

Not available

19

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

20

Toro 65-5490

DOOR END SEAL

$40.99

$

Usually ships in 3-6 days

0

21

Toro 65-5150

ACCESS COVER

$

$

Not available

22

Toro 66-0520

DISCONTINUED

$

$

Not available

23

Toro 66-0150

DISCONTINUED

$

$

Not available

Toro 66-0140

DISCONTINUED

$

$

Not available

24

Toro 66-0530

SHAFT - AXLE

$72.99

$

Usually ships in 3-6 days

0

25

Toro 66-0360

CAP-END

$10.99

$

Usually ships in 3-6 days

0

26

Toro 65-5440

SPRING ARM ASM

$29.99

$

Usually ships in 3-6 days

0

27

Toro 65-5041

DISCONTINUED
(Superseded to 65-5043)

$

$

Not available

28

Toro 65-4730

WASHER-ARM, PIVOT

$1.99

$

In Stock, Qty 20+

0

29

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

30

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 11

0

31

Toro 65-5220

SCREW-HSH, THREAD FORMING

$4.49

$

Usually ships in 3-6 days

0

32

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 1 left!

0

33

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

34

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$33.99

$

In Stock, only 4 left!

0

35

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 6

0

36

Toro 66-0580

ARM-PIVOT, FRONT

$19.99

$

In Stock, only 3 left!

0

37

Toro 66-0540

FRONT SPRING ARM ASM

$21.99

$

Usually ships in 3-6 days

0

38

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

39

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

40

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

41

Toro 66-0640

DISCONTINUED

$

$

Not available

42

Toro 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

43

Toro 65-5010

DISCONTINUED
(Superseded to 65-5010-03)

$

$

Not available
