26551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

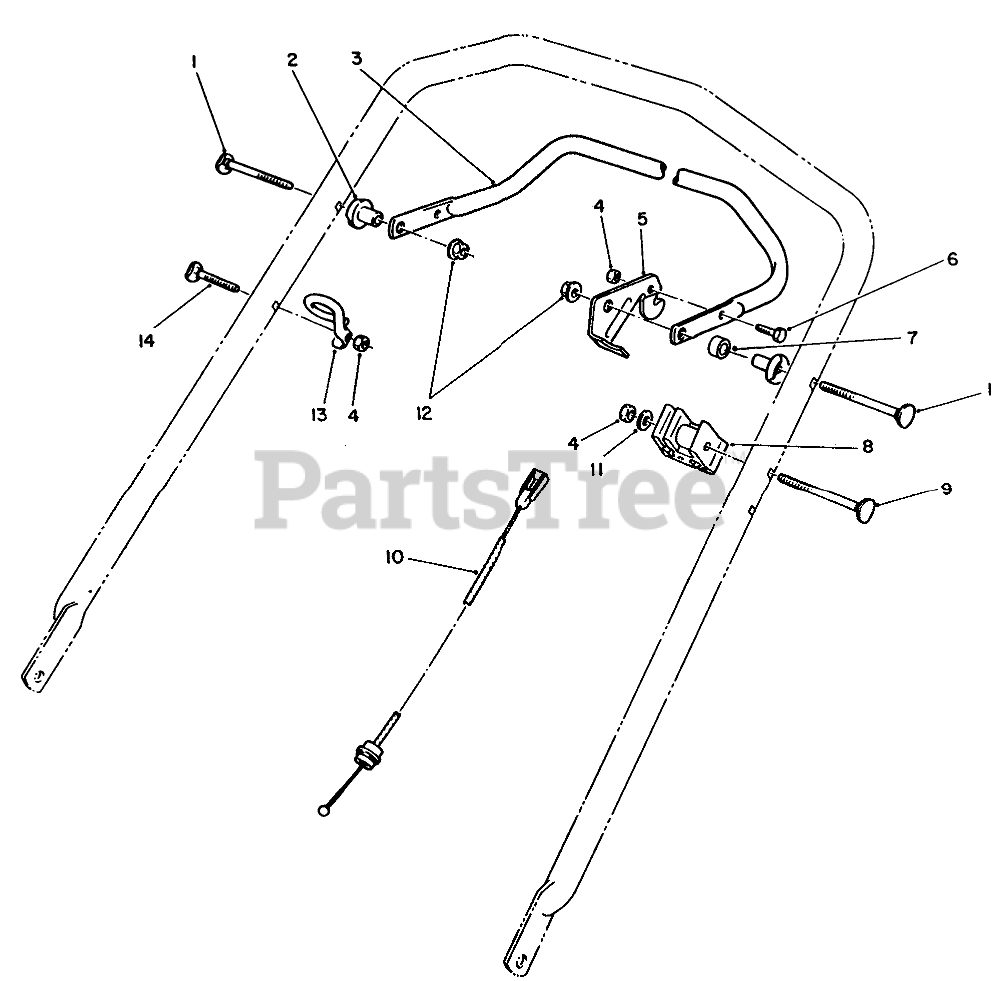

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 17-9426

SCREW-HANDLE
Usually ships in 1 day

$

$3.34

0

2

Toro Part# 66-0330

SPACER-SUPPORT
Usually ships in 5 to 8 days

$

$5.37

0

3

Toro Part# 52-7430

Bar-Control
(Superseded to 52-7430-03)
Usually ships same day

Not available

$

$

4

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

5

Toro Part# 66-5350

LEVER-CONTROL
Usually ships in 5 to 8 days

$

$11.05

0

6

Toro Part# 321-3

SCREW-HH
Usually ships in 1 day

$

$1.13

0

7

Toro Part# 256-276

SPACER-NYLON
Usually ships in 5 to 8 days

$

$2.23

0

8

Toro Part# 71-0960

SUPPORT-CABLE
Usually ships in 5 to 8 days

$

$7.03

0

9

Toro Part# 46-6432

SCREW-HANDLE
Usually ships in 5 to 8 days

$

$9.94

0

10

Toro Part# 66-0720

BRAKE CABLE
Usually ships in 5 to 8 days

$

$56.72

0

11

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

12

Toro Part# 3296-58

NUT-LOCK, NI
Usually ships in 1 day

$

$2.05

0

13

Toro Part# 46-8081

GUIDE-ROPE
Usually ships in 5 to 8 days

$

$17.33

0

14

Toro Part# 46-6435

Screw-Handle
(Superseded to 321-13)
Usually ships in 1 day

$

$4.03

0
