266 - Husqvarna Chainsaw (1993-09) CARBURETOR DETAILS Parts Diagram

Chainsaw

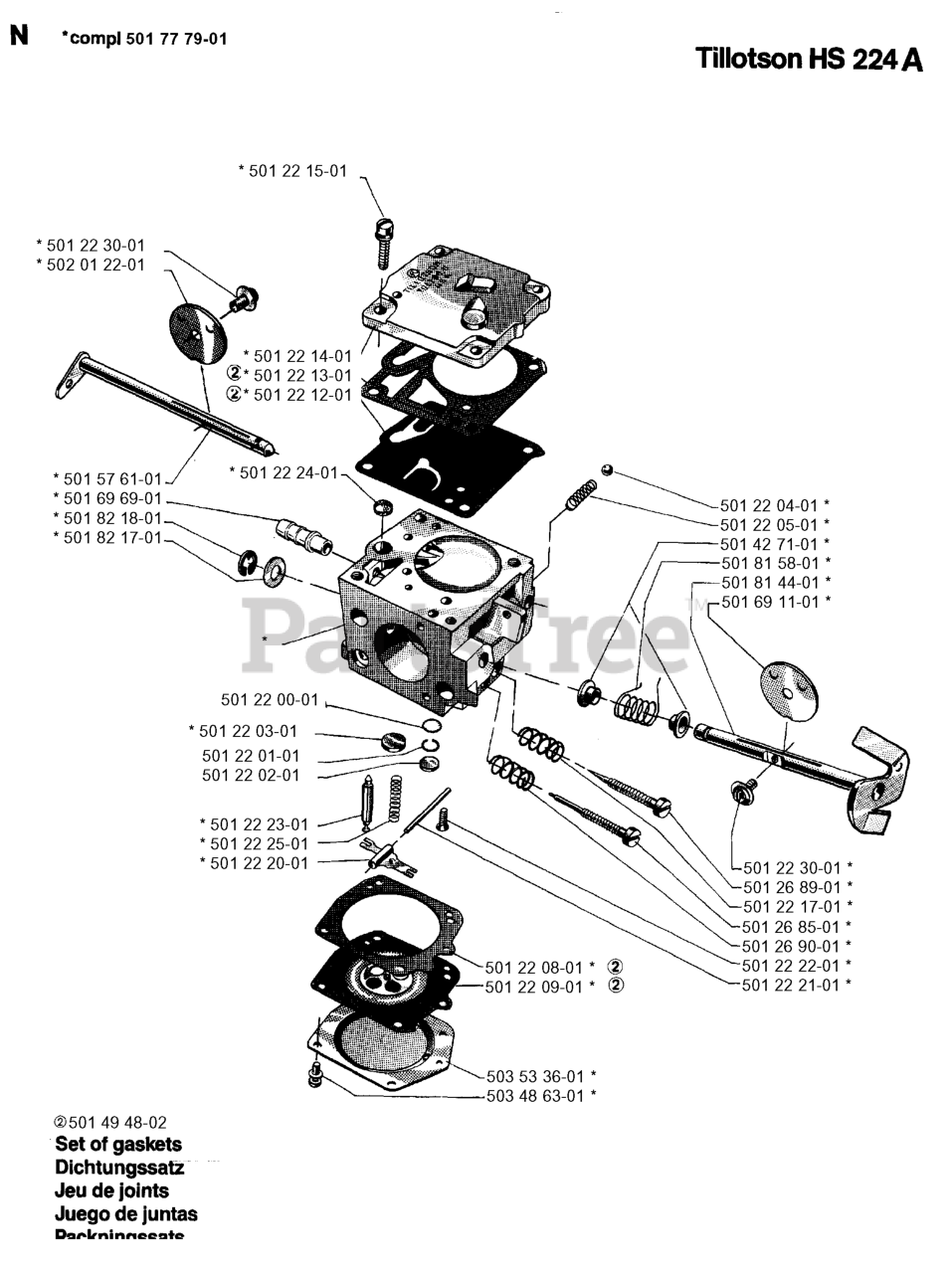

CARBURETOR DETAILS Parts Diagram

  • Title

501 22 13-01

Husqvarna 501221301

GASKET, PUMP SIDE

Note: 501 49 48-02 SET OF GASKETS

$6.99

$

In Stock, only 3 left!

0

501 22 01-01

Husqvarna 501220101

LOCKING RING

$

$

Not available

501 26 85-01

Husqvarna 501268501

IDLE ADJ. SCREW

$28.99

$

Usually ships in 3-10 days

0

501 22 23-01

Husqvarna 501222301

NEEDLE

$13.99

$

In Stock, only 1 left!

0

501 22 17-01

Husqvarna 501221701

SPRING

$3.49

$

In Stock, Qty 8

0

501 22 20-01

Husqvarna 501222001

LEVER

$

$

Not available

501 22 12-01

Husqvarna 501221201

FUEL PUMP DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$11.99

$

Usually ships in 3-10 days

0

501 26 90-01

Husqvarna 501269001

SPRING

$5.99

$

Usually ships in 3-10 days

0

501 22 09-01

Husqvarna 501220901

METERING DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$25.99

$

In Stock, Qty 11

0

501 22 25-01

Husqvarna 501222501

SPRING

$5.99

$

In Stock, only 1 left!

0

501 69 69-01

Husqvarna 501696901

NIPPLE
(Superseded to 503801301)

$10.99

$

Usually ships in 3-10 days

0

501 22 08-01

Husqvarna 501220801

GASKET, METERING SIDE

Note: 501 49 48-02 SET OF GASKETS

$24.99

$

Usually ships in 3-10 days

0

501 22 30-01

Husqvarna 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

501 22 14-01

Husqvarna 501221401

CAP

$34.99

$

Usually ships in 3-10 days

0

501 22 22-01

Husqvarna 501222201

SCREW

$

$

Not available

501 22 05-01

Husqvarna 501220501

SPRING

$4.99

$

In Stock, only 1 left!

0

501 82 18-01

Husqvarna 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

501 57 61-01

Husqvarna 501576101

CHOKE SHAFT AND LEVER

$

$

Not available

501 22 04-01

Husqvarna 501220401

BALL

$10.37

$

In Stock, only 1 left!

0

501 77 79-01

Husqvarna 501777901

CARBURETOR

$

$

Not available

501 81 44-01

Husqvarna 501814401

THROTTLE SHAFT

$

$

Not available

503 53 36-01

Husqvarna 503533601

COVER
(Superseded to 501821901)

$

$

Not available

501 26 89-01

Husqvarna 501268901

NEEDLE H

$12.99

$

Usually ships in 3-10 days

0

503 48 63-01

Husqvarna 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0

501 22 21-01

Husqvarna 501222101

SHAFT

$7.49

$

In Stock, only 1 left!

0

501 22 15-01

Husqvarna 501221501

SCREW

$4.99

$

In Stock, Qty 7

0

502 01 22-01

Husqvarna 502012201

CHOKE FLAP

$

$

Not available

501 22 24-01

Husqvarna 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

501 69 11-01

Husqvarna 501691101

THROTTLE FLAP

$6.99

$

In Stock, Qty 7

0

501 4

Husqvarna 501494802

DIAPHRAGM SET

$31.99

$

In Stock, Qty 15

0

501 22 02-01

Husqvarna 501220201

PLUG (TIL 179-60X)

$

$

Not available

501 22 03-01

Husqvarna 501220301

Plug

$

$

Not available

501 22 00-01

Husqvarna 501220001

SCREEN

$

$

Not available

501 81 58-01

Husqvarna 501815801

SPRING

$

$

Not available

501 42 71-01

Husqvarna 501427101

Bushing

$2.99

$

Usually ships in 3-10 days

0

501 82 17-01

Husqvarna 501821701

WASHER

$5.99

$

In Stock, only 1 left!

0
