26620 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

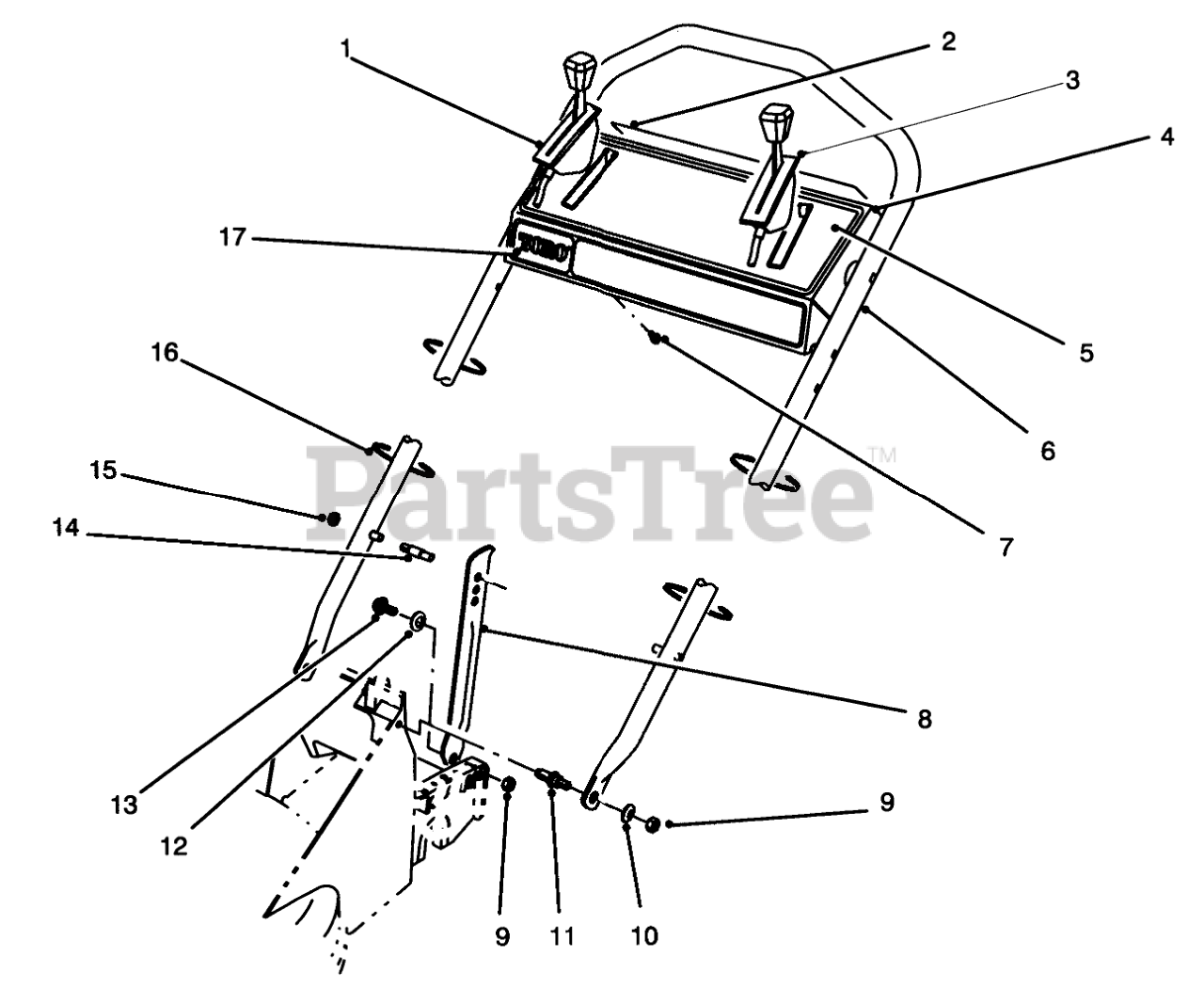

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2713

GROUND SPEED CONTROL

$116.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$

$

Not available

3

Toro 66-0236

THROTTLE CONTROL

$144.99

$

Usually ships in 3-6 days

0

4

Toro 13-6019

Control Panel Assembly (Incl. Ref. #2 & 5)

$

$

Not available

5

Toro 66-0290

DECAL - INSTRUCTION

$

$

Not available

6

Toro 84-8331

UPPER HANDLE, PVC DIP

$302.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 65-5730

HANDLE LATCH

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

12

Toro 256-313

NYLON WASHER

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$38.99

$

Usually ships in 3-6 days

0

15

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$4.49

$

In Stock, Qty 20+

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

17

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available
