26620 BF - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

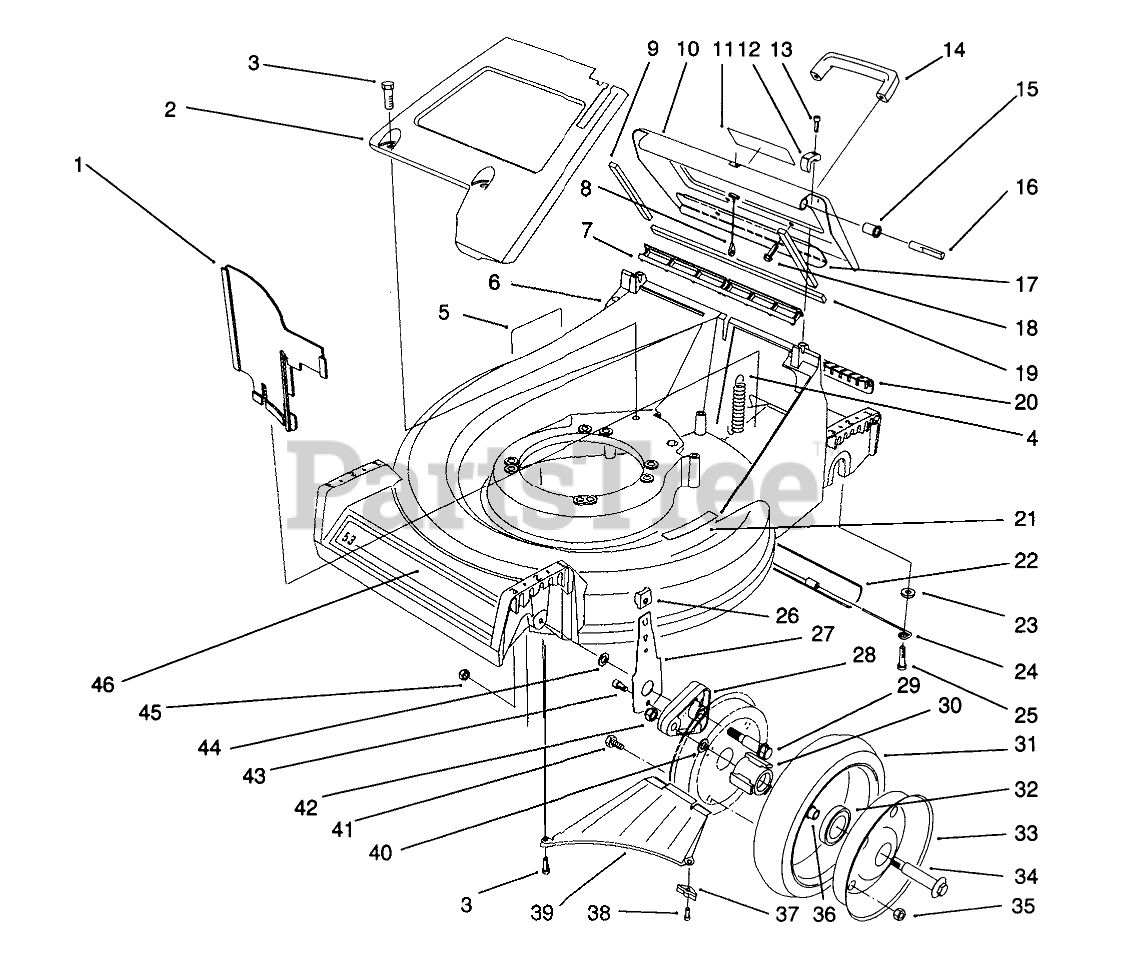

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

2

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$46.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 65-5360

EXTENSION-SPRING

$23.99

$

Usually ships in 3-6 days

0

5

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

6

Toro 13-5869

Housing-53cm (Incl. Ref. #5 & 21)

$

$

Not available

7

Toro 65-5160

DOOR SEAL

$

$

Not available

8

Toro 65-5370

DOOR CABLE

$15.99

$

In Stock, only 2 left!

0

9

Toro 65-5480

DOOR SIDE SEAL

$

$

Not available

10

Toro 13-5889

Door-Discharge (Incl. Ref. #9, 11, 17 & 19)

$

$

Not available

11

Toro 71-8370

DECAL - DANGER

$

$

Not available

12

Toro 65-5140

HINGE CLAMP

$

$

Not available

13

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 65-5100

HANDLE-DOOR

$9.49

$

In Stock, Qty 18

0

15

Toro 65-5460

DOOR BUSHING

$2.99

$

Usually ships in 3-6 days

0

16

Toro 65-5290

HINGE PIN

$

$

Not available

17

Toro 66-0610

DOOR - BRACE

$

$

Not available

18

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 65-5490

DOOR END SEAL

$32.99

$

Usually ships in 3-6 days

0

20

Toro 65-5150

ACCESS COVER

$3.99

$

Usually ships in 3-6 days

0

21

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

22

Toro 65-5350

TRAILING SHIELD

$43.99

$

Usually ships in 3-6 days

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 76-1980

SHIELD HANGER

$3.99

$

Usually ships in 3-6 days

0

25

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

26

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

27

Toro 66-0540

FRONT SPRING ARM ASM

$16.99

$

Usually ships in 3-6 days

0

28

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

29

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

30

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

31

Toro 53-7740

TIRE

$37.99

$

In Stock, Qty 9

0

32

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

33

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 3 left!

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #31-33 & 35)
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0

34

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

37

Toro 66-0640

Bracket-Discharge

$

$

Not available

38

Toro 65-5221

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

39

Toro 65-5010

Ramp Discharge
(Superseded to 65-5010-03)

$

$

Not available

40

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

41

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

42

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

43

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

44

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

45

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

46

Toro 70-7590

DECAL - 53 CM

$

$

Not available
