26622 - Toro Walk-Behind Mower (SN: 000003101 - 000999999) (1990) Housing Assembly Parts Diagram

Walk-Behind Mower

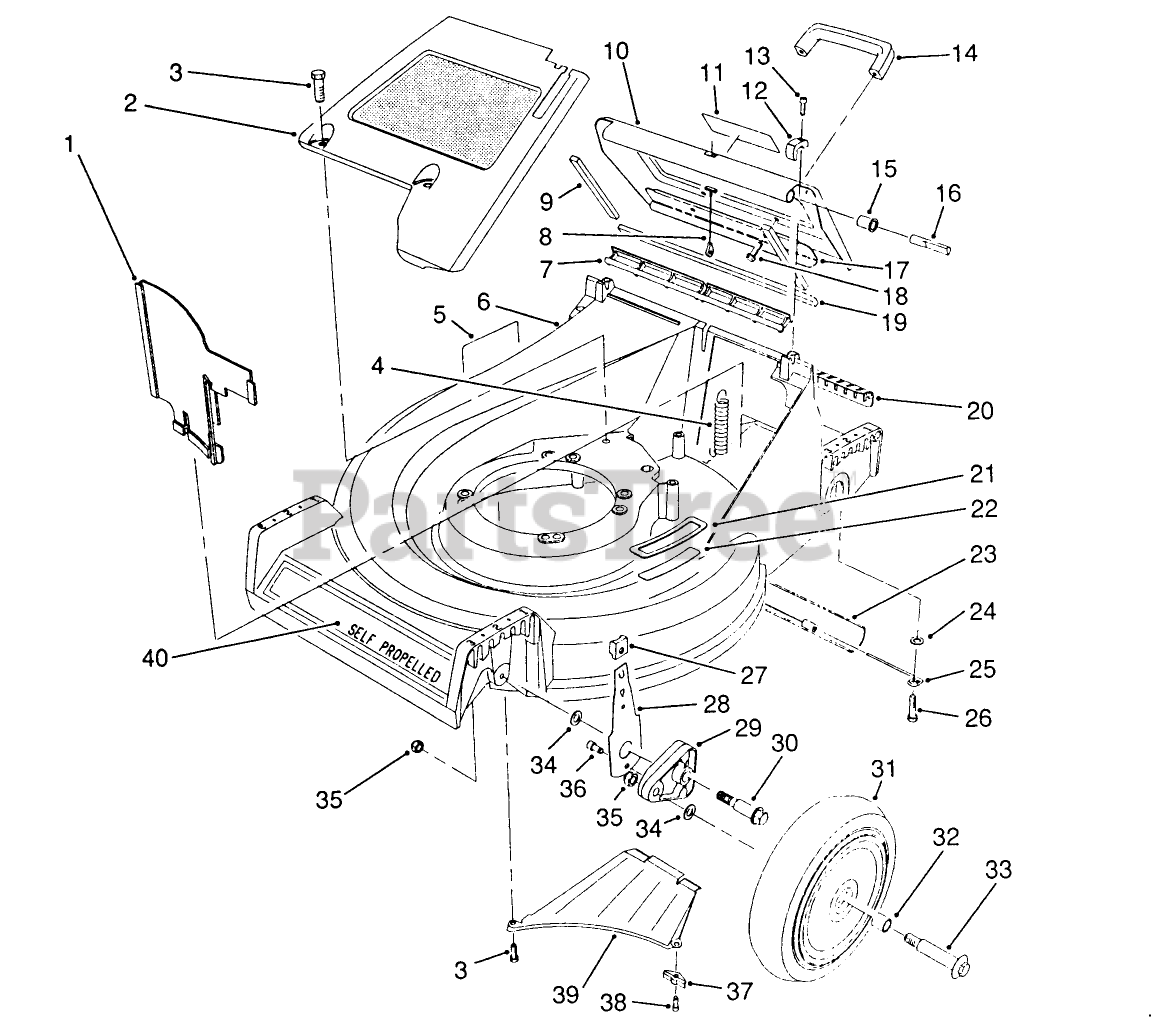

Housing Assembly Parts Diagram

  • Title

1

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

2

Toro 65-5660

See Supercession: 65-5660-03
(Superseded to 65-5660-03)

$59.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

4

Toro 65-5360

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0

5

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 3 left!

0

6

Toro 13-4689

DISCONTINUED

$

$

Not available

7

Toro 65-5160

DISCONTINUED

$

$

Not available

8

Toro 65-5370

DOOR CABLE

$19.99

$

In Stock, only 1 left!

0

9

Toro 65-5480

DISCONTINUED

$

$

Not available

10

Toro 13-2189

DISCONTINUED

$

$

Not available

11

Toro 63-9050

DISCONTINUED

$

$

Not available

12

Toro 65-5140

DISCONTINUED

$

$

Not available

13

Toro 65-5210

SCREW-HSH

$

$

Not available

14

Toro 65-5100

HANDLE-DOOR

$10.99

$

In Stock, only 2 left!

0

15

Toro 65-5460

DOOR BUSHING

$3.49

$

Usually ships in 3-6 days

0

16

Toro 65-5290

DISCONTINUED

$

$

Not available

17

Toro 66-0610

DISCONTINUED

$

$

Not available

18

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

19

Toro 65-5490

DOOR END SEAL

$40.99

$

Usually ships in 3-6 days

0

20

Toro 65-5150

ACCESS COVER

$

$

Not available

21

Toro 66-0110

STEP PAD

$

$

Not available

22

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

23

Toro 65-5350

TRAILING SHIELD

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

25

Toro 76-1980

SHIELD HANGER

$

$

Not available

26

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

27

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

28

Toro 66-0540

FRONT SPRING ARM ASM

$21.99

$

Usually ships in 3-6 days

0

29

Toro 66-0580

ARM-PIVOT, FRONT

$19.99

$

In Stock, only 3 left!

0

30

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 6

0

31

Toro 11-9509

See Supercession: 51-2751
(Superseded to 51-2751)

$33.99

$

In Stock, only 4 left!

0

32

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

33

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 2 left!

0

34

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

35

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

36

Toro 65-5220

SCREW-HSH, THREAD FORMING

$4.49

$

Usually ships in 3-6 days

0

37

Toro 66-0640

DISCONTINUED

$

$

Not available

38

Toro 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

39

Toro 65-5010

DISCONTINUED
(Superseded to 65-5010-03)

$

$

Not available

40

Toro 66-0460

DISCONTINUED

$

$

Not available
