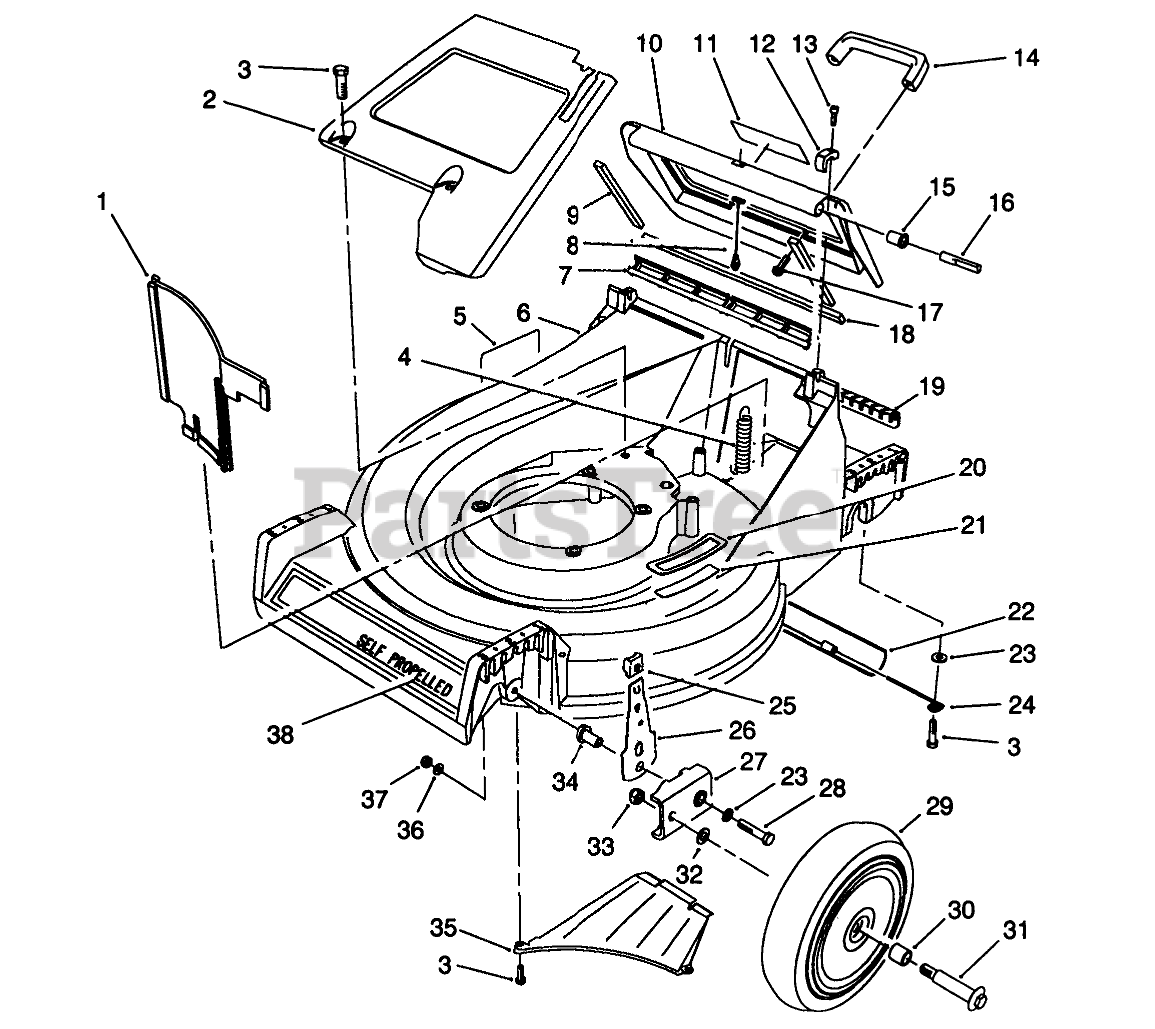

26624 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

2

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$46.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 65-5360

EXTENSION-SPRING

$23.99

$

Usually ships in 3-6 days

0

5

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

6

Toro 62-6700

Housing-21"

$

$

Not available

7

Toro 65-5160

DOOR SEAL

$

$

Not available

8

Toro 65-5370

DOOR CABLE

$15.99

$

In Stock, only 2 left!

0

9

Toro 65-5480

DOOR SIDE SEAL

$

$

Not available

10

Toro 65-5050

Door-Discharge
(Superseded to 13-2189)

$

$

Not available

11

Toro 63-9050

DECAL - WARNING

$

$

Not available

12

Toro 65-5140

HINGE CLAMP

$

$

Not available

13

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 65-5100

HANDLE-DOOR

$9.49

$

In Stock, Qty 18

0

15

Toro 65-5460

DOOR BUSHING

$2.99

$

Usually ships in 3-6 days

0

16

Toro 65-5290

HINGE PIN

$

$

Not available

17

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

18

Toro 65-5490

DOOR END SEAL

$32.99

$

Usually ships in 3-6 days

0

19

Toro 65-5150

ACCESS COVER

$3.99

$

Usually ships in 3-6 days

0

20

Toro 66-0110

STEP PAD

$

$

Not available

21

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

22

Toro 65-5350

TRAILING SHIELD

$43.99

$

Usually ships in 3-6 days

0

23

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 66-0150

LH SHIELD HANGER

$

$

Not available

Toro 66-0140

RH SHIELD HANGER

$

$

Not available

25

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

26

Toro 65-5400

Arm-Front Spring
(Superseded to 66-0410)

$

$

Not available

27

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

28

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

29

Toro 51-2750

Wheel & Tire Assembly (Incl. Ref. #30)
(Superseded to 51-2751)

$30.99

$

Usually ships in 3-6 days

0

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

31

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

33

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

34

Toro 65-5080

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

35

Toro 65-5010

Ramp Discharge
(Superseded to 65-5010-03)

$

$

Not available

36

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 65-5640

DECAL - 21" SP

$

$

Not available
