26625 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) STARTER MOTOR ASSEMBLY Parts Diagram

Walk-Behind Mower

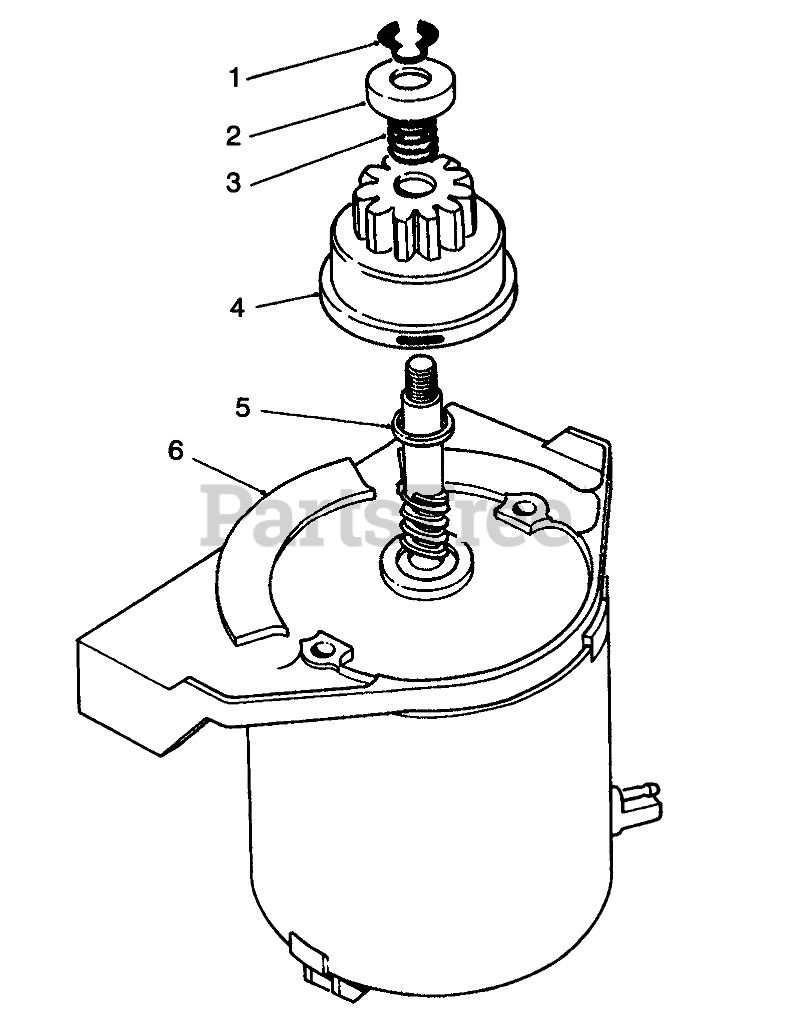

STARTER MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 32151-47

RING-RETAINING
Usually ships in 5 to 8 days

$

$2.45

0

2

Toro Part# 49-2170

PINION STOP
Usually ships in 1 day

$

$8.17

0

3

Toro Part# 44-0500

COMPRESSION SPRING
Usually ships in 5 to 8 days

$

$5.91

0

4

Toro Part# 43-4370

PINION ASM
Usually ships in 5 to 8 days

$

$79.36

0

Usually ships in 5 to 8 days

$

$36.42

0

6

Toro Part# 53-4460

END FRAME ASSY, MOTOR
Usually ships in 5 to 8 days

$

$78.61

0

Toro Part# 53-4500

Starter Motor Assembly (Incl. Ref. #1-6)

Note: Not illustrated

Usually ships in 5 to 8 days

$

$619.77

0
