26625 BG - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

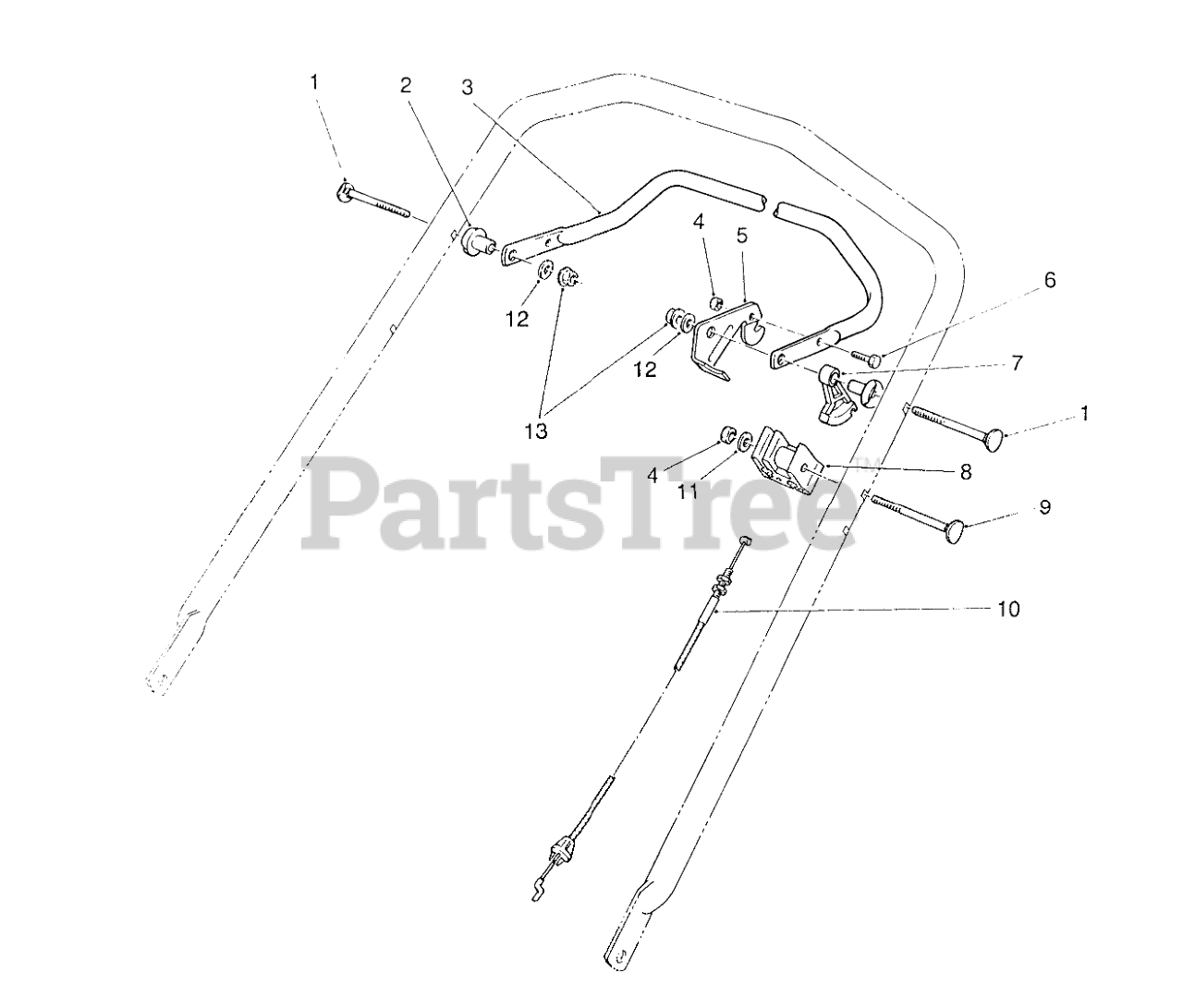

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 17-9426

SCREW-HANDLE
Usually ships in 1 day

$

$3.34

0

2

Toro Part# 66-0330

SPACER-SUPPORT
Usually ships in 5 to 8 days

$

$5.37

0

3

Toro Part# 52-7430

Bar-Control
(Superseded to 52-7430-03)
Usually ships same day

Not available

$

$

4

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

5

Toro Part# 46-8800

CONTROL LEVER
Usually ships same day

Not available

$

$

6

Toro Part# 321-3

SCREW-HH
Usually ships in 1 day

$

$1.13

0

7

Toro Part# 46-5520

LEVER-TRACTION
Usually ships same day

Not available

$

$

8

Toro Part# 71-0960

SUPPORT-CABLE
Usually ships in 5 to 8 days

$

$7.03

0

9

Toro Part# 46-6432

SCREW-HANDLE
Usually ships in 5 to 8 days

$

$9.94

0

10

Toro Part# 71-0620

TRACTION CABLE
Usually ships same day

Not available

$

$

11

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

12

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

13

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0
