26625 CG - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Handle Assembly Parts Diagram

Walk-Behind Mower

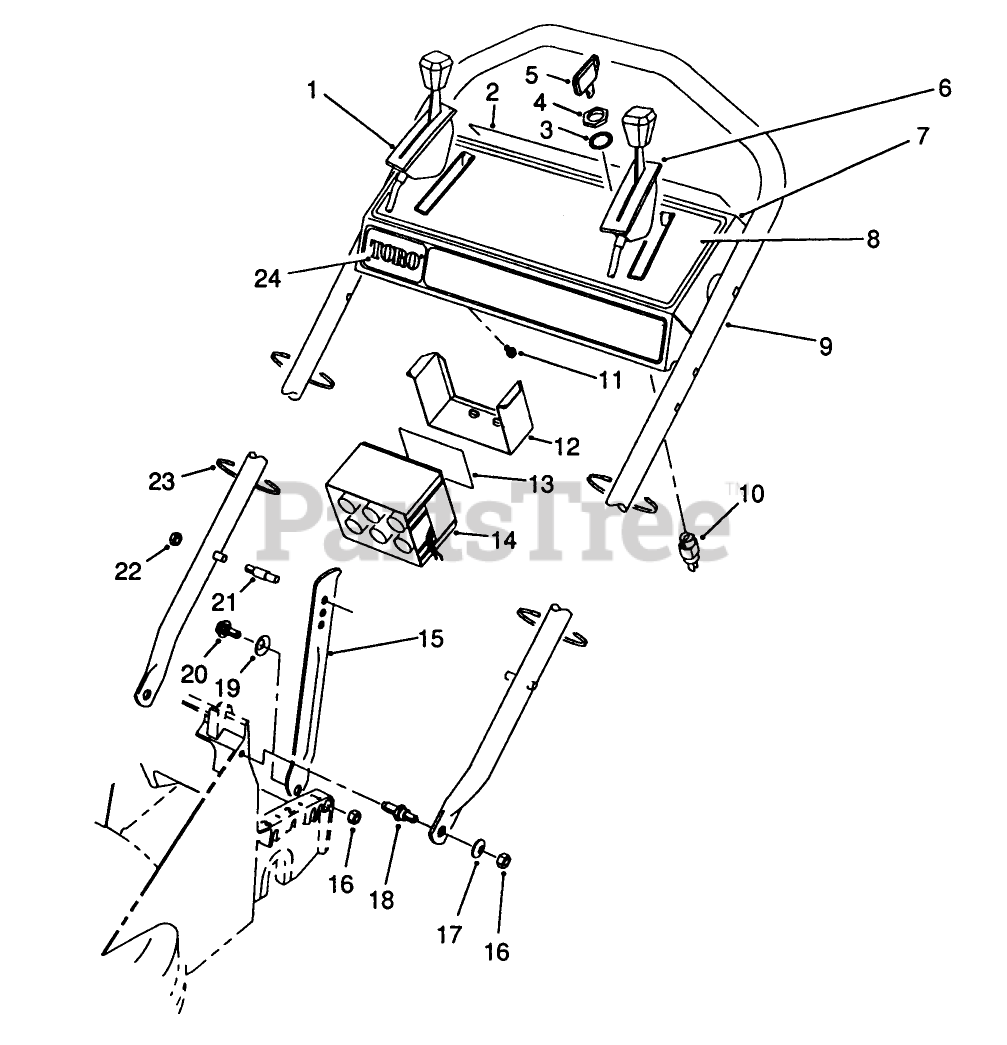

Handle Assembly Parts Diagram

  • Title

1

Toro 65-5530

See Supercession: 74-3560
(Superseded to 74-3560)

$71.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

See Supercession: 93-6655
(Superseded to 93-6655)

$

$

Not available

3

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

6

Toro 66-0230

See Supercession: 66-0236
(Superseded to 66-0236)

$144.99

$

Usually ships in 3-6 days

0

7

Toro 13-5859

DISCONTINUED

$

$

Not available

8

Toro 66-0280

DISCONTINUED

$

$

Not available

9

Toro 66-0320

DISCONTINUED

$

$

Not available

10

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

12

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 55-8190

See Supercession: 92-8659
(Superseded to 92-8659)

$

$

Not available

14

Toro 55-7520

BATTERY ASSEMBLY,WET

$176.99

$

Usually ships in 3-6 days

0

15

Toro 65-5730

DISCONTINUED

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

18

Toro 66-0450

DISCONTINUED

$

$

Not available

19

Toro 3290-478

WASHER-BELLEVILLE

$

$

Not available

20

Toro 65-5180

DISCONTINUED

$

$

Not available

21

Toro 49-2750

HANDLE PIN

$38.99

$

Usually ships in 3-6 days

0

22

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

24

Toro 65-5650

DISCONTINUED

$

$

Not available

Toro 49-8312

WIRE HARNESS

$133.99

$

Usually ships in 3-6 days

0

Toro 22-4710

See Supercession: 98-2391
(Superseded to 98-2391)

$

$

Not available
