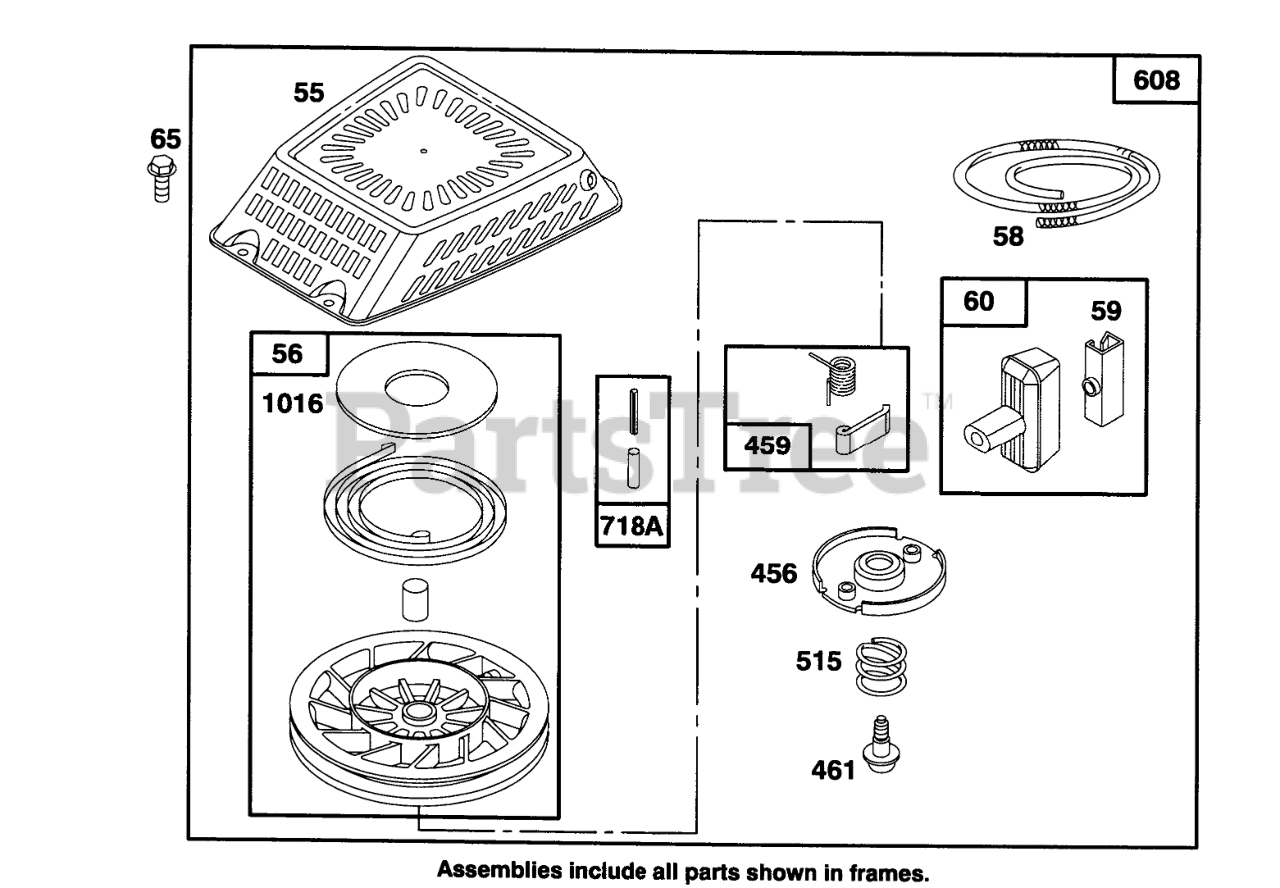

26630 B - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

ENGINE GTS 150 Parts Diagram

  • Title

8

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set-Part No. 77-8900

$3.99

$

Usually ships in 3-6 days

0

55

Toro 77-8890

Housing Rewind Starter
(Superseded to 94-1656)

$

$

Not available

56

Toro 77-9270

REWIND STARTER PULLEY

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$10.99

$

Usually ships in 3-6 days

0

60

Toro 77-8520

HANDLE-STARTER, REWIND

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

116

Toro 77-7660A

O-Ring

Note: Included in Gasket Set-Part No. 77-8900

$

$

Currently unavailable

456

Toro 77-8470

RETAINER - SPRING

$6.49

$

Usually ships in 3-6 days

0

459

Toro 77-8530

PAWL - RATCHET

$

$

Not available

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

515

Toro 77-8500

SPRING - RETAINER

$12.99

$

In Stock, only 1 left!

0

608

Toro 77-8840

StarterAssy-Rewind
(Superseded to 94-1661)

$

$

Not available

718A

Toro 77-8550

DAWL - SLEEVE

$

$

Not available

1016

Toro 77-8570

COVER - PULLEY

$

$

Not available
