26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 210000001 - 210999999) (2001) CYLINDER ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

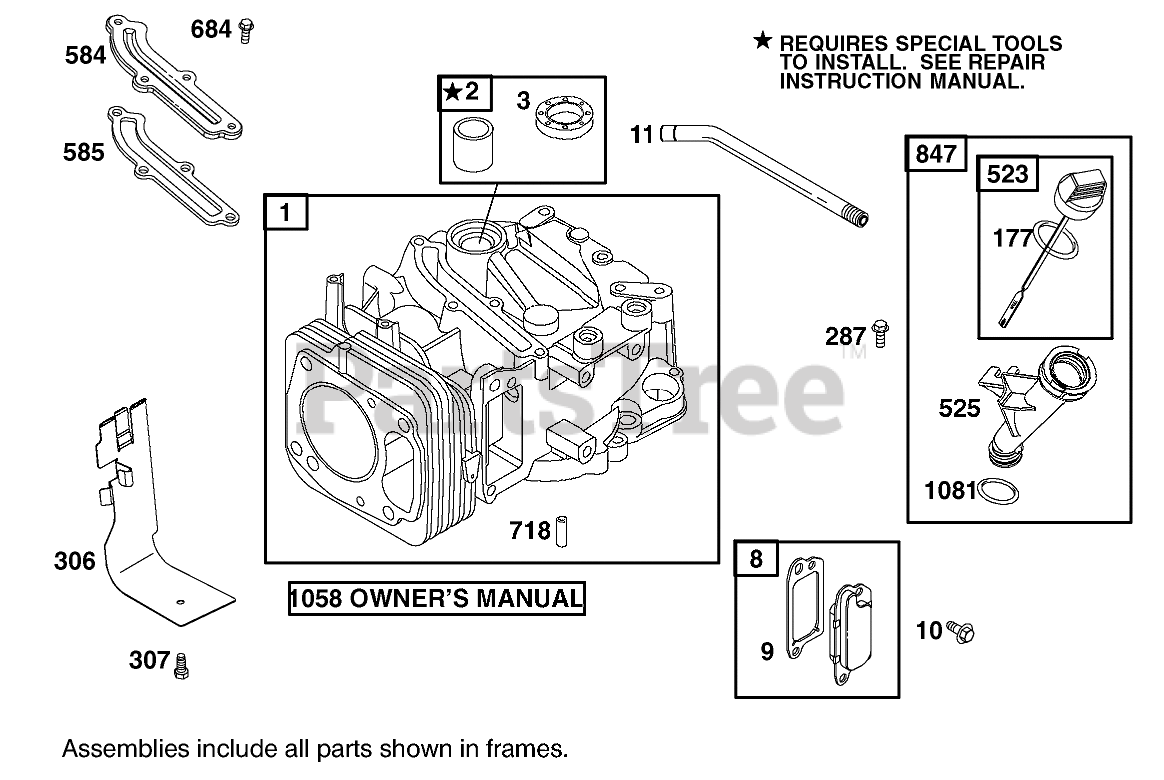

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-0900

CYLINDER ASM

$637.99

$

Usually ships in 3-6 days

0

2

Toro 99-0911

BUSHING

$

$

Not available

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Gasket Set-See Ref. 358.

$

$

Not available

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Valve Overhaul Gasket Set-See Ref. 1003.

$4.99

$

Usually ships in 3-6 days

0

10

Toro 99-0914

SCREW-HH

$

$

Not available

11

Toro 99-0915

TUBE-BREATHER

$

$

Not available

177

Toro 99-0916

O-RING

Note: Included in Gasket Set-See Ref. 358.

$9.49

$

Usually ships in 3-6 days

0

287

Toro 99-0927

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

306

Toro 99-0919

SHIELD-CYLINDER

$

$

Not available

307

Toro 99-0920

SCREW-HH

$

$

Not available

523

Toro 77-7260

DIPSTICK-OIL

$

$

Not available

525

Toro 99-0906

TUBE-FILTER, OIL

$

$

Not available

584

Toro 99-0922

BAFFLE-CYLINDER

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-See Ref. 358.

$14.99

$

Usually ships in 3-6 days

0

684

Toro 99-0920

SCREW-HH

$

$

Not available

718

Toro 99-0928

SLEEVE-DOWEL

$

$

Not available

847

Toro 99-9209

ALTERNATOR

$1047.99

$

Usually ships in 3-6 days

0

1058

Owner-s Manual

$

$

Not available

1081

Toro 99-0916

O-RING

Note: Included in Gasket Set-See Ref. 358.

$9.49

$

Usually ships in 3-6 days

0

Toro 105-8616

Block-Short, ZS (Incl. Ref. #1-3, 684, 584, 585, 9, 718. Page 23: 51, 122, 883, 1022, 7, 45, 933. Page 24: 4, 20, 15, 12, 25-29, 16, 146, 741, 32, 46, 43, 22. Page 26: 404, 615, 616.

Note: Not illustrated

$822.99

$

Usually ships in 3-6 days

0
