26636 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS-150 Parts Diagram

Walk-Behind Mower

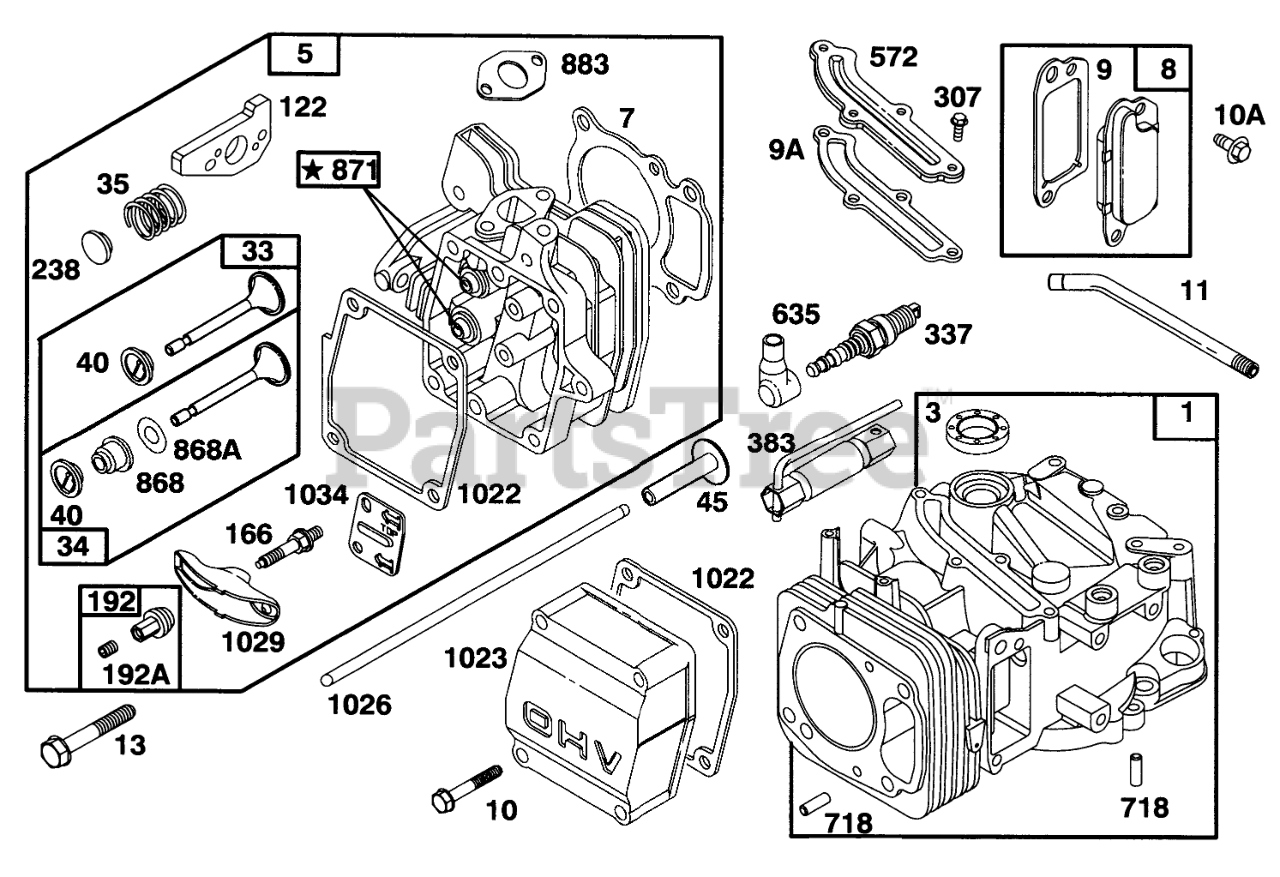

ENGINE GTS-150 Parts Diagram

  • Title

1

Toro 77-7590

CYLINDER ASSEMBLY

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$899.99

$

Usually ships in 3-6 days

0

3

Toro 77-9060

SEAL - OIL

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

3

Toro 77-9060

SEAL - OIL

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

5

Toro 77-7730

CYLINDER HEAD

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$34.99

$

Usually ships in 3-6 days

0

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set-Part No. 77-8900

$34.99

$

Usually ships in 3-6 days

0

8

Toro 77-9300

Breather Assy
(Superseded to 77-9260)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

9

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set-Part No. 77-8900

$5.49

$

Usually ships in 3-6 days

0

9

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$5.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$15.99

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set-Part No. 77-8900

$15.99

$

Usually ships in 3-6 days

0

10

Toro 77-7360

HEX HEAD SCREW

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

10A

Toro 77-9200

HEX HEAD SCREW

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

11

Toro 77-9410

TUBE - BREATHER

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

13

Toro 77-7630

CYLINDER HEAD SCREW

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

33

Toro 77-7860

EXHAUST VALVE

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

34

Toro 77-7880

INTAKE VALVE

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

35

Toro 77-7810

VALVE SPRING

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

40

Toro 77-7870

SPRING RETAINER

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

45

Toro 77-7610

VALVE TAPPET

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$36.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit-Part No. 77-9580

$36.99

$

Usually ships in 3-6 days

0

166

Toro 77-7780

ROCKER ARM STUD

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

192

Toro 77-7910

NUT - HEX SPECIAL

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

192A

Toro 77-9310

SCREW SET

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

238

Toro 77-7800

VALVE CAP

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

307

Toro 77-7420

SCREW - SEM

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

337

Toro 77-7330

PLUG-SPARK

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$3.99

$

Usually ships in 3-6 days

0

383

Toro 94-1664

WRENCH-SPARK PLUG

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

572

Toro 77-7400

BAFFLE - CYCLINDER
(Superseded to 99-0922)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

635

Toro 77-7340

SPARK PLUG ELBOW

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

718

Toro 77-7600

DOWEL - SLEEVE

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

1022

Toro 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set-Part No. 77-8900

$24.99

$

In Stock, only 1 left!

0

1022

Toro 77-7320

ROCKER COVER GASKET

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$24.99

$

In Stock, only 1 left!

0

1023

Toro 77-9320

COVER - VALVE

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

1026

Toro 77-7620

PUSH ROD

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

1029

Toro 77-7790

ROCKER ARM

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$37.99

$

In Stock, only 1 left!

0

1034

Toro 77-7770

PUSH ROD GUIDE

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available

Toro 77-9020

Short Block

Note: NUMBER 871 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Not available
