26636 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS-150 Parts Diagram

Walk-Behind Mower

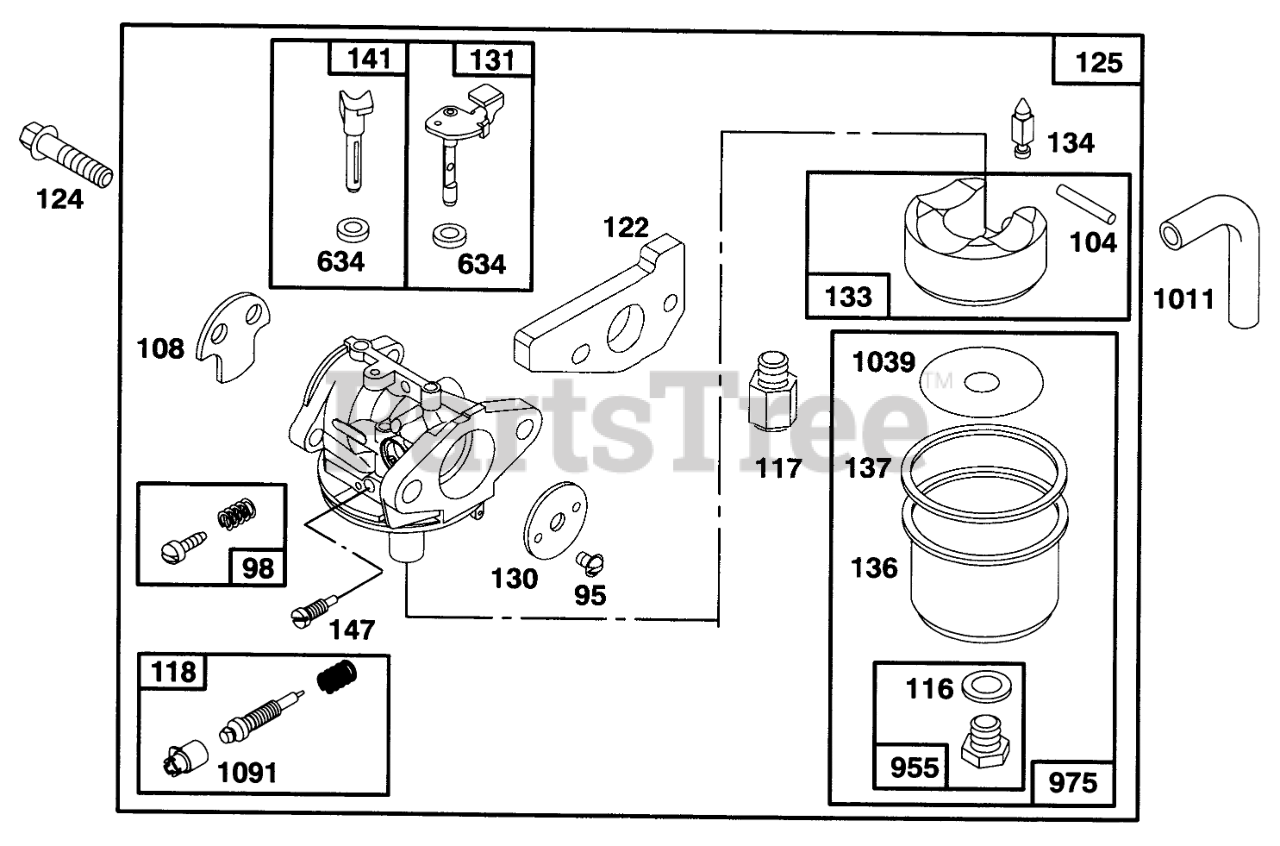

ENGINE GTS-150 Parts Diagram

  • Title

95

Toro 77-8090

SCREW - ROUND HEAD

$

$

Not available

98

Toro 77-8240

IDLE ADJUSTING SCREW

$

$

Not available

104

Toro 77-8180

FLOAT HINGE PIN

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$

$

Not available

108

Toro 77-9600

VALVE - CHOKE

$

$

Not available

116

Toro 77-8210

SEALING GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

$8.49

$

In Stock, Qty 20+

0

116

Toro 77-8210

SEALING GASKET

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$8.49

$

In Stock, Qty 20+

0

117

Toro 77-9610

Jet-Main
(Superseded to 94-1672)

$

$

Not available

Toro 94-1650

JET - HIGH ALTITUDE

$

$

Not available

118

Toro 77-9620

VALVE/SPRING - NEEDLE

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$

$

Not available

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$36.99

$

Usually ships in 3-6 days

0

124

Toro 77-7970

HEX HEAD SCREW

$6.49

$

Usually ships in 3-6 days

0

125

Toro 77-9630

ASSEMBLY - CARBURETOR

$

$

Not available

130

Toro 77-8080

THROTTLE VALVE

$

$

Not available

131

Toro 77-8160

THROTTLE SHAFT

$

$

Not available

133

Toro 77-8170

FLOAT-CARBURETOR

$37.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Inlet (Includes Seat)

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$27.99

$

Usually ships in 3-6 days

0

136

Toro 77-7240

FLOAT BOWL

$

$

Not available

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930

$9.49

$

In Stock, only 3 left!

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$9.49

$

In Stock, only 3 left!

0

141

Toro 77-8130

CHOKE SHAFT

$

$

Not available

147

Toro 77-9640

JET - PILOT

$

$

Not available

634

Toro 77-8150

SEAL WASHER

Note: Included in Carburetor Gasket Set-Part No. 77-8930

$

$

Not available

955

Toro 77-8220

HEX HEAD SCREW

$

$

Not available

975

Toro 77-8190

CARBURETOR BOWL ASM

$

$

Not available

1011

Toro 77-8040

VENT TUBE

$26.99

$

Usually ships in 3-6 days

0

1039

Toro 77-7250

FLOAT LIMITER

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$

$

Not available

1091

Toro 77-9650

CAP - LIMITER

Note: Incl. in Carburetor Overhaul Kit-Part No. 77-9580

$

$

Not available
