26636 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Handle Assembly Parts Diagram

Walk-Behind Mower

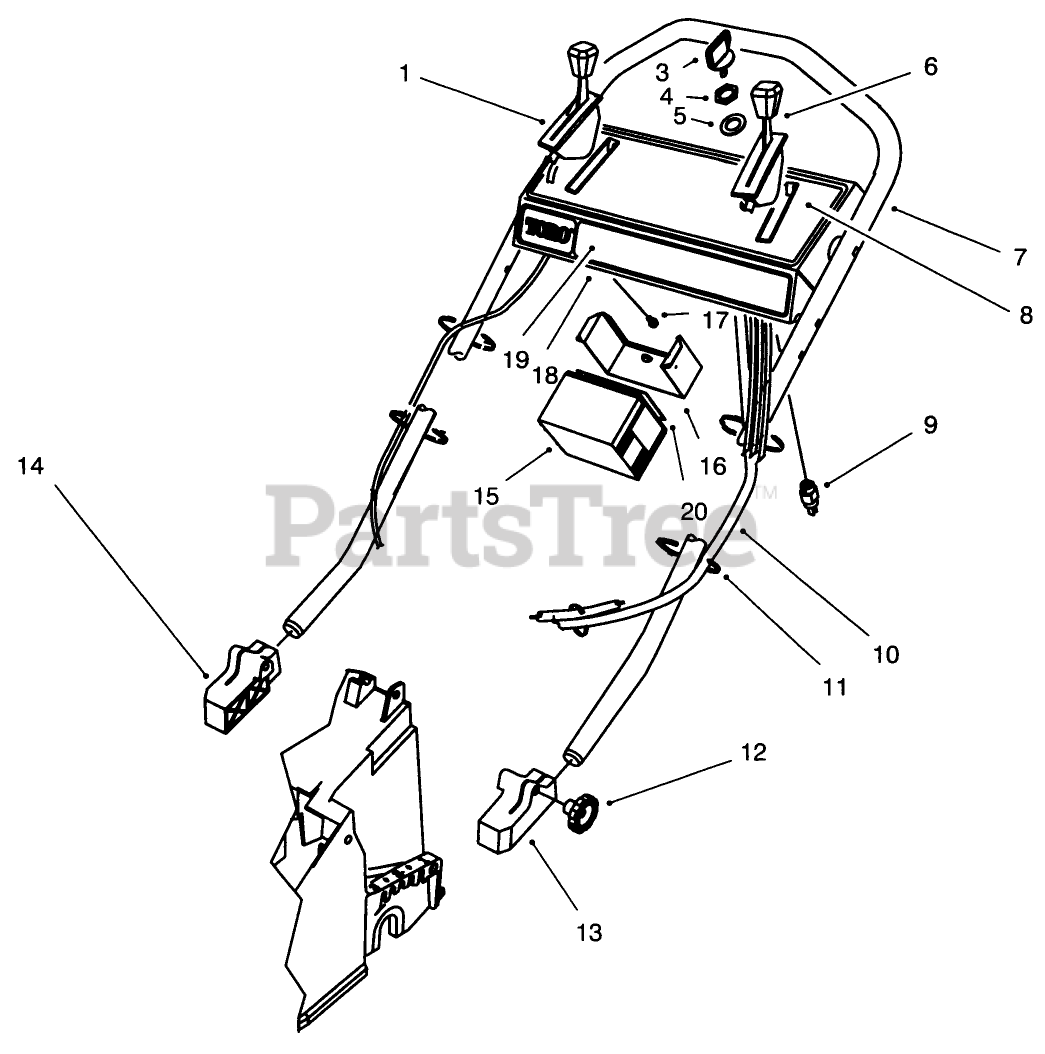

Handle Assembly Parts Diagram

  • Title

1

Toro 93-6632

CONTROL-SPEED, GROUND

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

6

Toro 93-6631

CONTROL - THROTTLE

$109.99

$

Usually ships in 3-6 days

0

7

Toro 94-4910

HANDLE

$

$

Not available

8

Toro 93-6660

DISCONTINUED

$

$

Not available

9

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

10

Toro 80-4795

DISCONTINUED

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

12

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

13

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

14

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

15

Toro 55-7520

BATTERY ASSEMBLY,WET

$176.99

$

Usually ships in 3-6 days

0

16

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

17

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 19

0

18

Toro 16-8759

PANEL W/DECALS

$130.99

$

Usually ships in 3-6 days

0

19

Toro 71-9871

DECAL - PANEL KEY

$

$

Not available

20

Toro 93-6668

DECAL-BATTERY

$21.99

$

Usually ships in 3-6 days

0

Toro 22-4710

See Supercession: 98-2391
(Superseded to 98-2391)

Note: Not illustrated

$

$

Not available
