26636 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) Engine Gts-150 7 Parts Diagram

Walk-Behind Mower

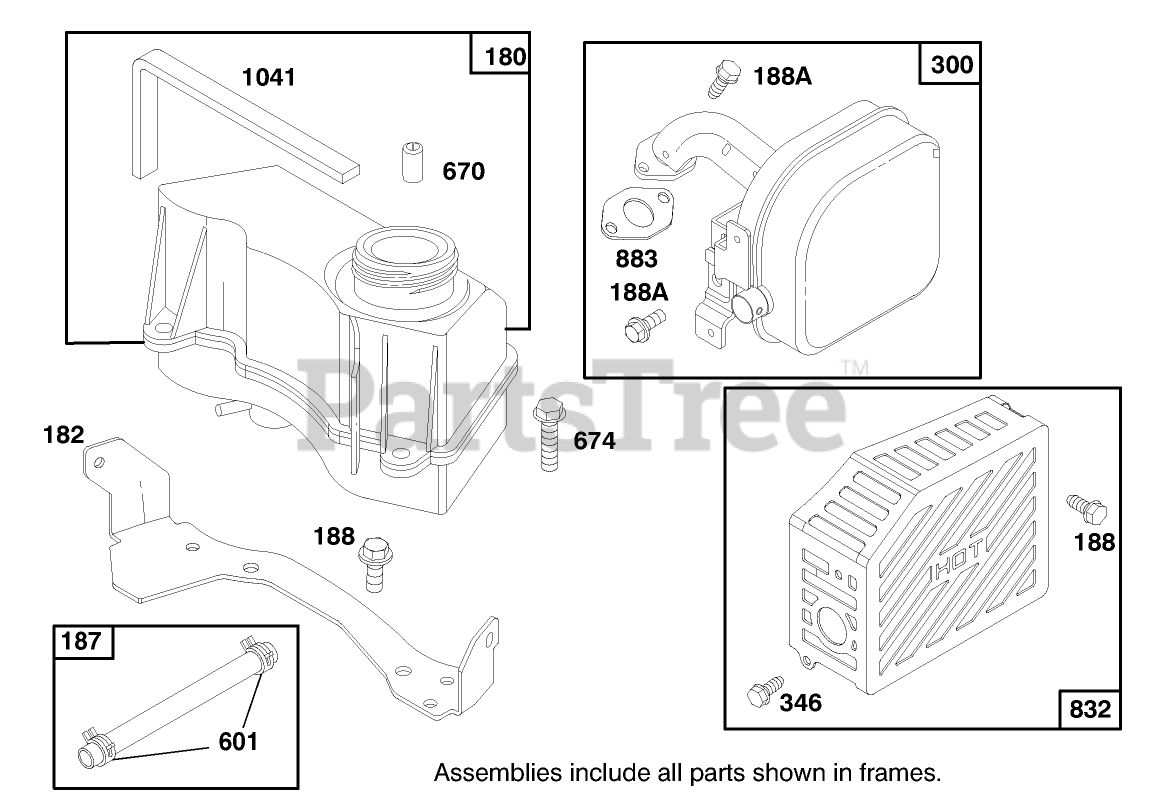

Engine Gts-150 7 Parts Diagram

  • Title

180

Toro 77-7580

See Supercession: 77-9240
(Superseded to 77-9240)

$

$

Not available

182

Toro 77-7170

DISCONTINUED

$

$

Not available

187

Toro 78-4100

BRIGGS 296004

$

$

Not available

188

Toro 94-1665

See Supercession: 94-1652
(Superseded to 94-1652)

$

$

Not available

188A

Toro 94-1652

SCREW - HEX HEAD

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

601

Toro 78-4690

DISCONTINUED

$

$

Not available

670

Toro 77-9030

SPACER

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

DISCONTINUED

$

$

Not available

883

Toro 77-7760

DISCONTINUED

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

1041

Toro 77-8590

DISCONTINUED

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
