26641 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) Engine Tecumseh Model No. Ovrm40-42604 Parts Diagram

Walk-Behind Mower

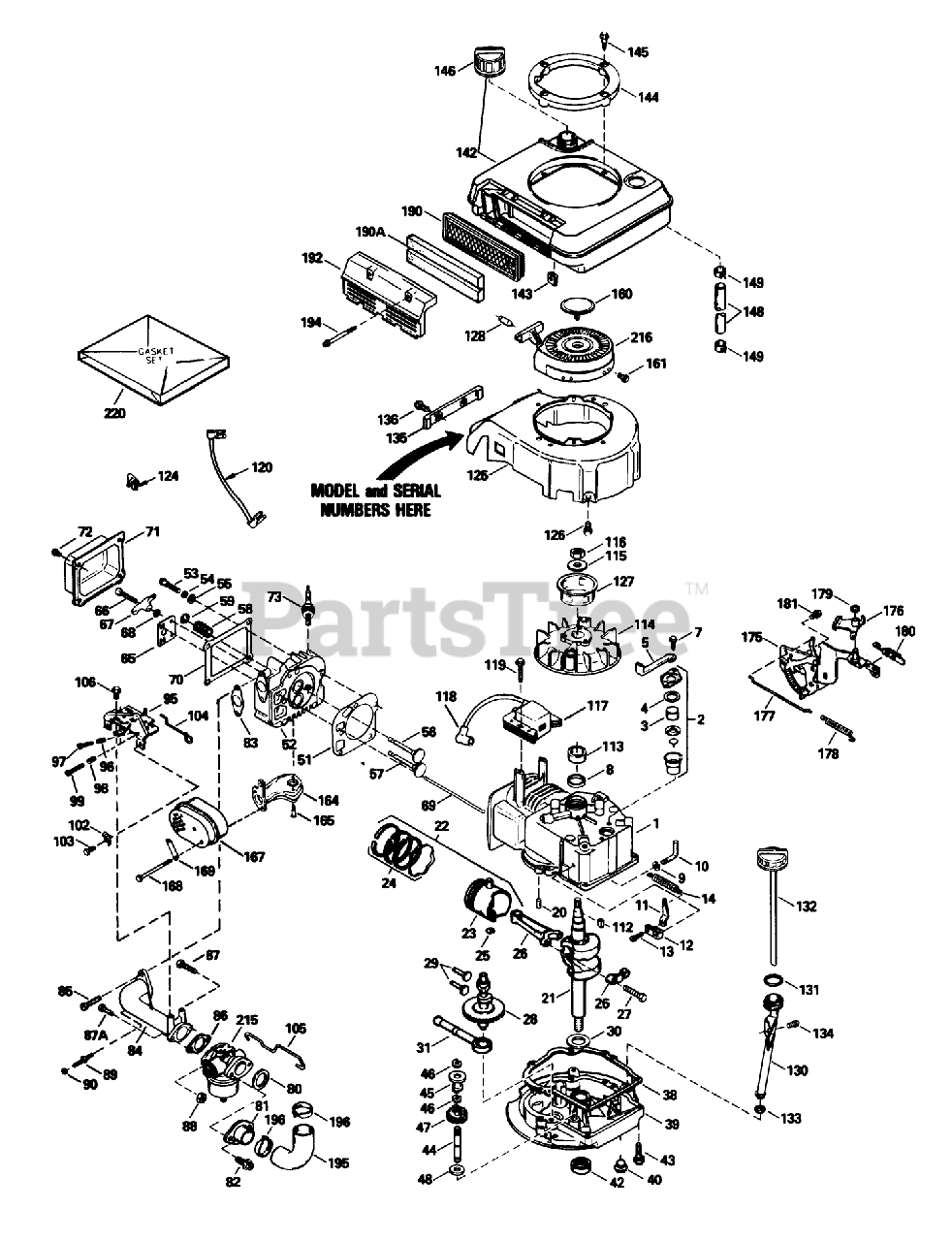

Engine Tecumseh Model No. Ovrm40-42604 Parts Diagram

  • Title

1

Toro 35613

Cylinder Assembly (Incl. Ref. #8 20)

$

$

Currently unavailable

2

Toro 34214A

Breather Assy. (Incl. Ref. #46 thru 51)

$

$

Currently unavailable

3

Toro 33734

Element-Breather

$

$

Currently unavailable

4

Toro 33735

Gasket-Breather

$

$

Currently unavailable

5

Toro 35496

Tube-Breather

$

$

Currently unavailable

7

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

8

Toro 32600

Seal-Oil

$

$

Currently unavailable

9

Toro 28277

Washer-Flat

$

$

Currently unavailable

10

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

11

Toro 31383A

Governor Lever

$

$

Currently unavailable

12

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

13

Toro 650548

Screw

$

$

Currently unavailable

14

Toro 33578

Spring-Extension

$

$

Currently unavailable

20

Toro 26727

Pin-Dowel

$

$

Currently unavailable

21

Toro 35749

Crankshaft

$

$

Currently unavailable

22

Toro 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

Toro 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

Toro 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

23

Toro 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Currently unavailable

Toro 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

Toro 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

24

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

25

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

26

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

27

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

28

Toro 35615

Camshaft

$

$

Currently unavailable

29

Toro 35616

Valve Lifter

$

$

Currently unavailable

30

Toro 32323

Washer-Thrust

$

$

Currently unavailable

31

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

38

Toro 35261

Gasket

$

$

Currently unavailable

39

Toro 34311B

Flange-Mounting (Incl. Ref. #26, 27 39)

$

$

Currently unavailable

40

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

42

Toro 27897

Seal-Oil

$

$

Currently unavailable

43

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

44

Toro 30574

Shaft-Governor

$

$

Currently unavailable

45

Toro 30588A

Spool-Governor

$

$

Currently unavailable

46

Toro 29193

Ring-Retaining

$

$

Currently unavailable

47

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

48

Toro 35479

Washer
(Superseded to 704759)

$

$

Not available

51

Toro 35617

Gasket-Cylinder Head

$

$

Currently unavailable

52

Toro 35630

Head-Cylinder

$

$

Currently unavailable

53

Toro 650912

Screw (5/16-18 x 1-1/2)

$

$

Currently unavailable

54

Toro 650691

Washer-Flat

$

$

Currently unavailable

55

Toro 650690

Washer-Belleville

$

$

Currently unavailable

56

Toro 35619

Valve-Intake Std. (Incl. Ref. #59)

$

$

Currently unavailable

Toro 35620

1411A/19A/12A SNWTH

$3.23

$

Usually ships in 3-6 days

0

57

Toro 35621

Valve-Exhaust Std. (Incl. Ref. #59)

$

$

Currently unavailable

Toro 35622

Valve-Exhaust .031 O.S. (Incl. Ref. #59)

$

$

Currently unavailable

58

Toro 31672

Spring-Valve

$

$

Currently unavailable

59

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

65

Toro 35623

Guide-Push Rod

$

$

Currently unavailable

66

Toro 650913

Stud-Arm, Rocker

$

$

Currently unavailable

67

Toro 35624

Arm-Rocker

$

$

Currently unavailable

68

Toro 650914

Nut (1/4-28)

$

$

Currently unavailable

69

Toro 35625

Rod-Push

$

$

Currently unavailable

70

Toro 35626

Gasket-Cover, Rocker Arm

$

$

Currently unavailable

71

Toro 35718

Cover-Rocker Arm

$

$

Currently unavailable

72

Toro 30063

Screw

$

$

Currently unavailable

73

Toro 34645

Spark Plug-Resistor (R N 4C)

$

$

Currently unavailable

80

Toro 27272A

Gasket-Air Cleaner

$

$

Currently unavailable

81

Toro 32971

Adapter-Air Cleaner

$

$

Currently unavailable

82

Toro 650709

Screw-Round Hd.

$

$

Currently unavailable

83

Toro 35629

Gasket-Intake Pipe

$

$

Currently unavailable

84

Toro 35628

Pipe-Intake

$

$

Currently unavailable

85

Toro 65-451

Screw-Hex. Hd.

$

$

Currently unavailable

86

Toro 26756

Gasket

$

$

Currently unavailable

87

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

87A

Toro 650920

Screw-Special Hex. Hd.

$

$

Currently unavailable

88

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

89

Toro 650917

Stud-Manifold

$

$

Currently unavailable

90

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

95

Toro 33131

51089 SUPP TO MANUA

$3.23

$

Usually ships in 3-6 days

0

96

Toro 33802

61709/GIL1515A/95-5

$3.23

$

Usually ships in 3-6 days

0

97

Toro 650777

Screw

$

$

Currently unavailable

98

Toro 31342

Spring-Compression

$

$

Currently unavailable

99

Toro 650549

Screw

$

$

Currently unavailable

102

Toro 27793

Conduit

$

$

Currently unavailable

103

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

104

Toro 34337

2035A67 ADD.ASSEMBL

$3.23

$

Usually ships in 3-6 days

0

105

Toro 34336

Link-Throttle

$

$

Currently unavailable

106

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

112

Toro 611004

Key-Flywheel

$

$

Not available

113

Toro 34080

Spacer

$

$

Currently unavailable

114

Toro 611112

Flywheel
(Superseded to 611113)

$

$

Not available

115

Toro 650815

Washer-Belleville

$

$

Currently unavailable

116

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

117

Toro 34443A

Solid State

$

$

Currently unavailable

118

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

119

Toro 650814

Screw

$

$

Currently unavailable

120

Toro 34961

Ground Wire

$

$

Currently unavailable

124

Toro 29443

Clip-Wire

$

$

Currently unavailable

125

Toro 35719

Housing-Blower

$

$

Currently unavailable

126

Toro 650831

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

127

Toro 35000

Hub-Starter

$

$

Currently unavailable

128

Toro 34985

Retainer-Starter Rope

$

$

Not available

130

Toro 35498

Tube-Oil Fill

$

$

Currently unavailable

131

Toro 35499

O-Ring

$

$

Currently unavailable

132

Toro 35507

Dipstick-Oil Fill

$

$

Currently unavailable

133

Toro 34265

Gasket

$

$

Currently unavailable

134

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

135

Toro 35721

Cover-Blower Housing

$

$

Currently unavailable

136

Toro 650821

Screw (10-32 x 1/2)

$

$

Currently unavailable

142

Toro 35501A

Shroud Tank Assembly (Incl. Ref. #143 146)

$

$

Currently unavailable

143

Toro 650900

Clip-U-Nut

$

$

Currently unavailable

144

Toro 35502

Ring-Shroud

$

$

Currently unavailable

145

Toro 650898

Screw

$

$

Currently unavailable

146

Toro 35355

Cap-Fuel

$

$

Currently unavailable

148

Toro 30705

Line-Fuel

$

$

Currently unavailable

149

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

160

Toro 35392

Plug Starter

$

$

Currently unavailable

161

Toro 650884

Screw, Hex Hd.

$

$

Currently unavailable

164

Toro 35720

Exhaust Manifold Assembly

$

$

Currently unavailable

165

Toro 650918

Screw-Torx Hd. Shoulder

$

$

Currently unavailable

167

Toro 391028

Muffler Assembly

$

$

Currently unavailable

168

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

169

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

175

Toro 35039

Bracket-Brake

$

$

Currently unavailable

176

Toro 34968

Lever-Brake

$

$

Currently unavailable

177

Toro 34966

Link-Control

$

$

Currently unavailable

178

Toro 34965

Spring-Extension

$

$

Currently unavailable

179

Toro 32309

Ring-Retaining

$

$

Currently unavailable

180

Toro 610973

Terminal

$

$

Currently unavailable

181

Toro 650839

Screw (1/4-20 x 3/8)

$

$

Currently unavailable

190

Toro 35500

Filter-Air Cleaner

$

$

Currently unavailable

190A

Toro 35705

Filter-Pre-Cleaner

$

$

Currently unavailable

192

Toro 35503

Cover-Air Cleaner

$

$

Currently unavailable

194

Toro 650899

Screw-Filester Hd.

$

$

Currently unavailable

195

Toro 35504

Tube-Air Cleaner

$

$

Currently unavailable

196

Toro 35505

Clamp-Air Cleaner

$

$

Currently unavailable

215

Toro 632521

Carburetor Assembly (Incl. Ref. #86)

$

$

Currently unavailable

216

Toro 590621

Starter-Rewind

$

$

Currently unavailable

220

Toro 35633A

Gasket Set

$

$

Currently unavailable
