268 - Husqvarna Chainsaw (SN: 19994500001 - 20014000000) CRANKCASE Parts Diagram

Chainsaw

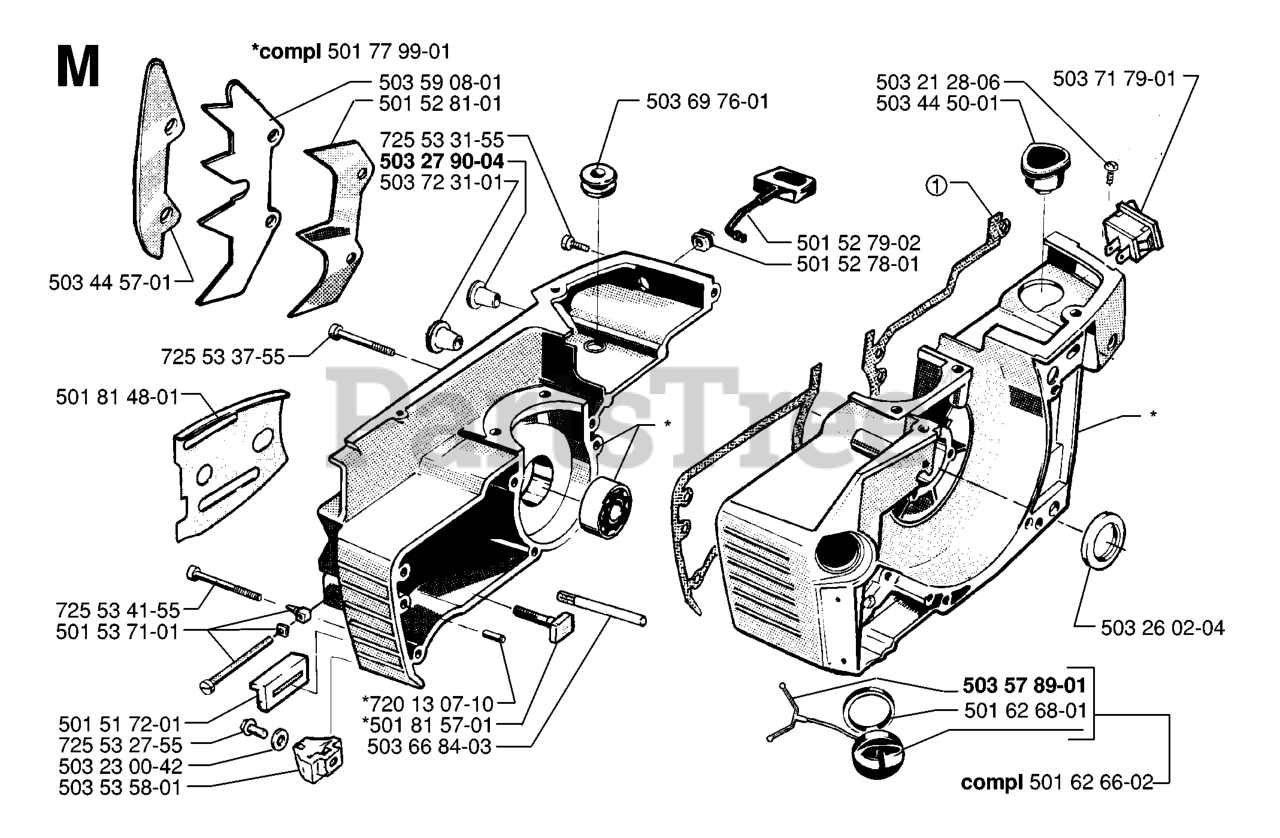

CRANKCASE Parts Diagram

  • Title

501 52 78-01

Husqvarna 501527801

BUSHING

$7.49

$

In Stock, only 2 left!

0

501 62 66-02

Husqvarna 501626602

TANK CAP

$12.99

$

In Stock, only 4 left!

0

720 13 07-10

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

501 53 71-01

Husqvarna 501537101

CHAIN TENSIONER

$24.99

$

In Stock, Qty 13

0

501 77 99-01

Husqvarna 501779901

CRANKCASE CPL

$261.99

$

Usually ships in 3-10 days

0

501 81 57-01

Husqvarna 501815701

BOLT

$7.49

$

In Stock, only 2 left!

0

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 3 left!

0

725 53 41-55

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

503 44 50-01

Husqvarna 503445001

BELLOWS

$9.49

$

In Stock, Qty 12

0

501 81 48-01

Husqvarna 501814801

PROTECTION PLATE

$8.99

$

In Stock, Qty 11

0

501 52 81-01

Husqvarna 501528101

FELLING DOG

$20.99

$

Usually ships in 3-10 days

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, Qty 16

0

503 66 84-03

Husqvarna 503668403

OIL TANK VENT

$12.99

$

In Stock, only 1 left!

0

725 53 27-55

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, Qty 16

0

503 59 08-01

Husqvarna 503590801

FELLING DOG

$26.99

$

In Stock, only 1 left!

0

503 53 58-01

Husqvarna 503535801

CHAIN CATCHER

$8.99

$

In Stock, Qty 13

0

503 27 90-04

Husqvarna 503279004

PLUG

$

$

Not available

503 69 76-01

Husqvarna 503697601

GROMMET

$7.99

$

In Stock, Qty 8

0

503 44 57-01

Husqvarna 503445701

BUMPER

$

$

Not available

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

501 52 79-02

Husqvarna 501527902

CHOKE CONTROL

$10.99

$

In Stock, only 1 left!

0

501 51 72-01

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, Qty 6

0

725 53 37-55

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 11

0

503 72 31-01

Husqvarna 503723101

BUSHING

$9.49

$

In Stock, Qty 8

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

501 62 68-01

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 9

0

503 26 02-04

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 5

0
