268 - International Harvester Snow Blower (1971 - 1976) Handle Bars, Controls & Related Parts (W/ID No. 3080002U008001 & UP) Parts Diagram

Snow Blower

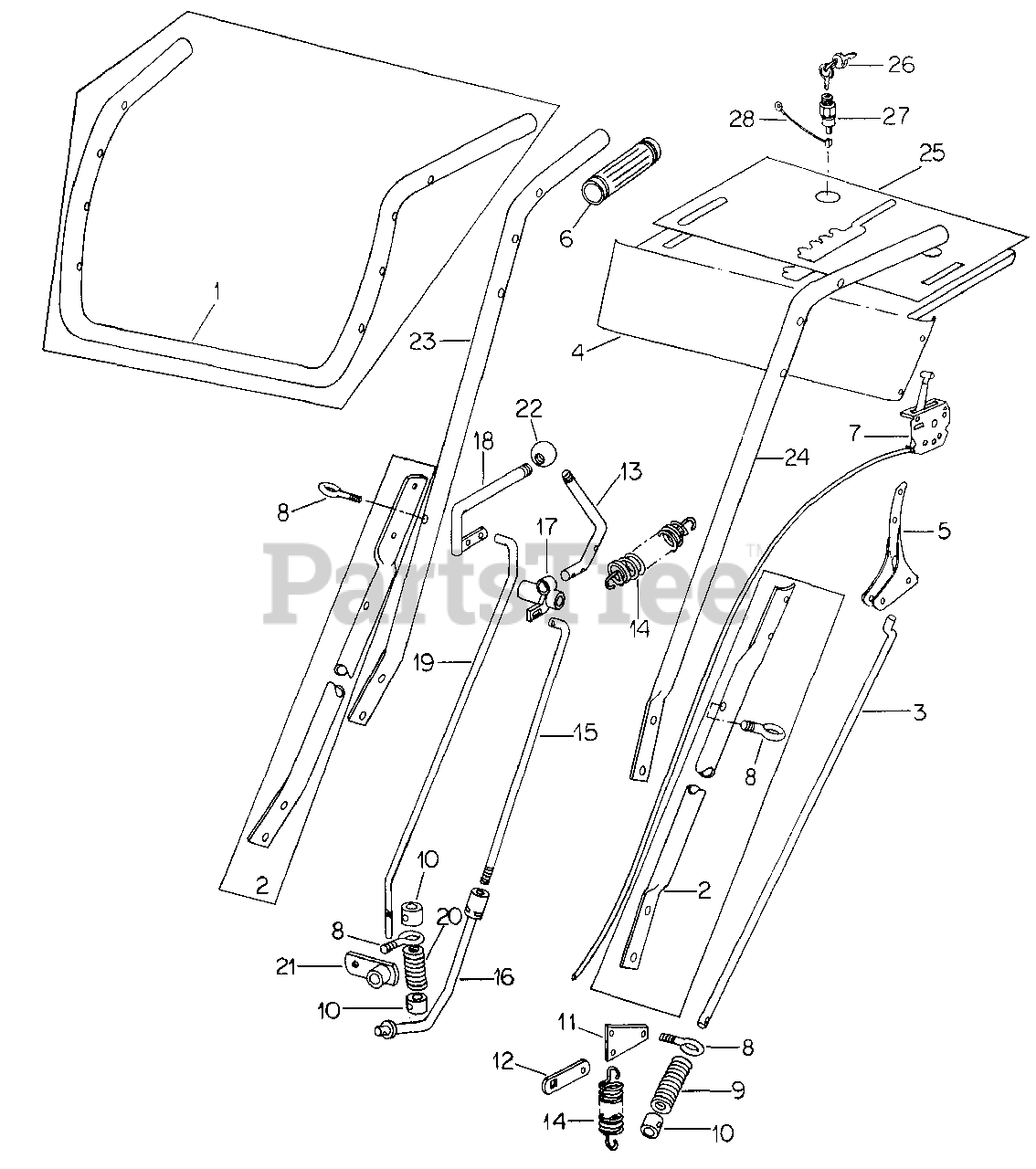

Handle Bars, Controls & Related Parts (W/ID No. 3080002U008001 & UP) Parts Diagram

  • Title

1

Cub Cadet IH-61759-C1

BAR. HANDLE

Note: (S/N 3080002U008500 & BELOW)

$

$

Not available

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

2

Cub Cadet IH-61760-C1

EXTENSION, HANDLE BAR

Note: (S/N 3080002U008500 & BELOW)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

3

Cub Cadet IH-61755-C1

ROD, CLUTCH

$

$

Not available

4

Cub Cadet IH-61758-C2

PANEL W/CAUTION PRODUCT GRAPHIC, 75746-C1, DASH

$

$

Currently unavailable

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

5

Cub Cadet IH-61753-C1

HANDLE, CLUTCH

$

$

Currently unavailable

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

Cub Cadet IH-180137

SCREW, 3/8-16 X 2-3/4 ZND HEX-HD CAP
(Superseded to 710-3022)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX. LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-386283-R1

GRIP, RUBBER HANDLE

$

$

Currently unavailable

7

Cub Cadet IH-61752-C1

CONTROL, THROTTLE

$

$

Currently unavailable

Cub Cadet IH-169756

SCREW, 10-32 X 1/2 SLT-PAN-HD TAP.

$

$

Currently unavailable

8

Cub Cadet IH-549046-R1

EYEBOLT

$

$

Not available

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

9

Cub Cadet IH-61756-C1

SPRING, CLUTCH ROD

$

$

Not available

10

Cub Cadet IH-61757-C1

BUSHING, ADJUSTING

$

$

Currently unavailable

Cub Cadet IH-105115

SCREW, 1/4-20 X 3/8 SQ-HD SET

$

$

Currently unavailable

11

Cub Cadet IH-61754-C1

BELLCRANK

$

$

Currently unavailable

12

Cub Cadet IH-61772-C1

BAR, CONNECTING

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX. LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet IH-61765-C1

LEVER, SHIFT

$

$

Not available

14

Cub Cadet IH-58567-C1

SPRING, EXTENSION

$

$

Not available

Cub Cadet IH-103396

PIN, 5/32 X 1 PLN COT

$

$

Currently unavailable

15

Cub Cadet IH-61767-C1

ROD, CONTROL ADJUSTABLE

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

16

Cub Cadet IH-61768-C1

ROD ASSY, SHIFT CONTROL

$

$

Not available

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

17

Cub Cadet IH-61766-C1

BEARING, SPEED CONTROL PIVOT

$

$

Currently unavailable

Cub Cadet IH-180137

SCREW, 3/8-16 X 2-3/4 ZND HEX-HD CAP
(Superseded to 710-3022)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX. LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-103396

PIN, 5/32 X 1 COT.

$

$

Currently unavailable

18

Cub Cadet IH-61769-C1

HANDLE ASSY, ROTOR CONTROL

$

$

Currently unavailable

Cub Cadet IH-180128

SCREW, 3/8-16 X 1-3/4 ZND HEX-HD CAP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX. LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet IH-61770-C1

ROD, ROTOR CONTROL

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, .281 X .625 X .065 ZND
(Superseded to 736-0463)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

20

Cub Cadet IH-126476-C1

SPRING, ROD

$

$

Currently unavailable

21

Cub Cadet IH-61763-C1

ARM, CLUTCH

$

$

Currently unavailable

Cub Cadet IH-103410

PIN, 3/16 X 1-3/4 COT.

$

$

Currently unavailable

22

Cub Cadet IH-148754-H1

KNOB

$

$

Not available

23

Cub Cadet IH-75744-C1

BAR, HANDLE RIGHT

Note: (S/N 3080002U008501 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

24

Cub Cadet 1H-75743-C1

BAR, HANDLE LEFT

Note: (S/N 3080002U008501 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

25

Cub Cadet IH-75746-C1

PRODUCT GRAPHIC, DASH PANEL - CAUTION

Note: (S/N 3080002U008501 & ABOVE)

$

$

Currently unavailable

26

Cub Cadet IH-62216-C1

KEY, SET OF TWO
(Superseded to 925-0201)

Note: (S/N 3080002U008501 & ABOVE)

$8.99

$

In Stock, Qty 14

0

27

Cub Cadet IH-75742-C1

SWITCH ASSY, KEY

Note: (S/N 3080002U008501 & ABOVE)

$

$

Currently unavailable

28

Cub Cadet IH-75741-C1

CABLE GROUND

Note: (S/N 3080002U008501 & ABOVE)

$

$

Currently unavailable
