268 - International Harvester Snow Blower (1977 - 1983) Engine Assembly Parts Diagram

Snow Blower

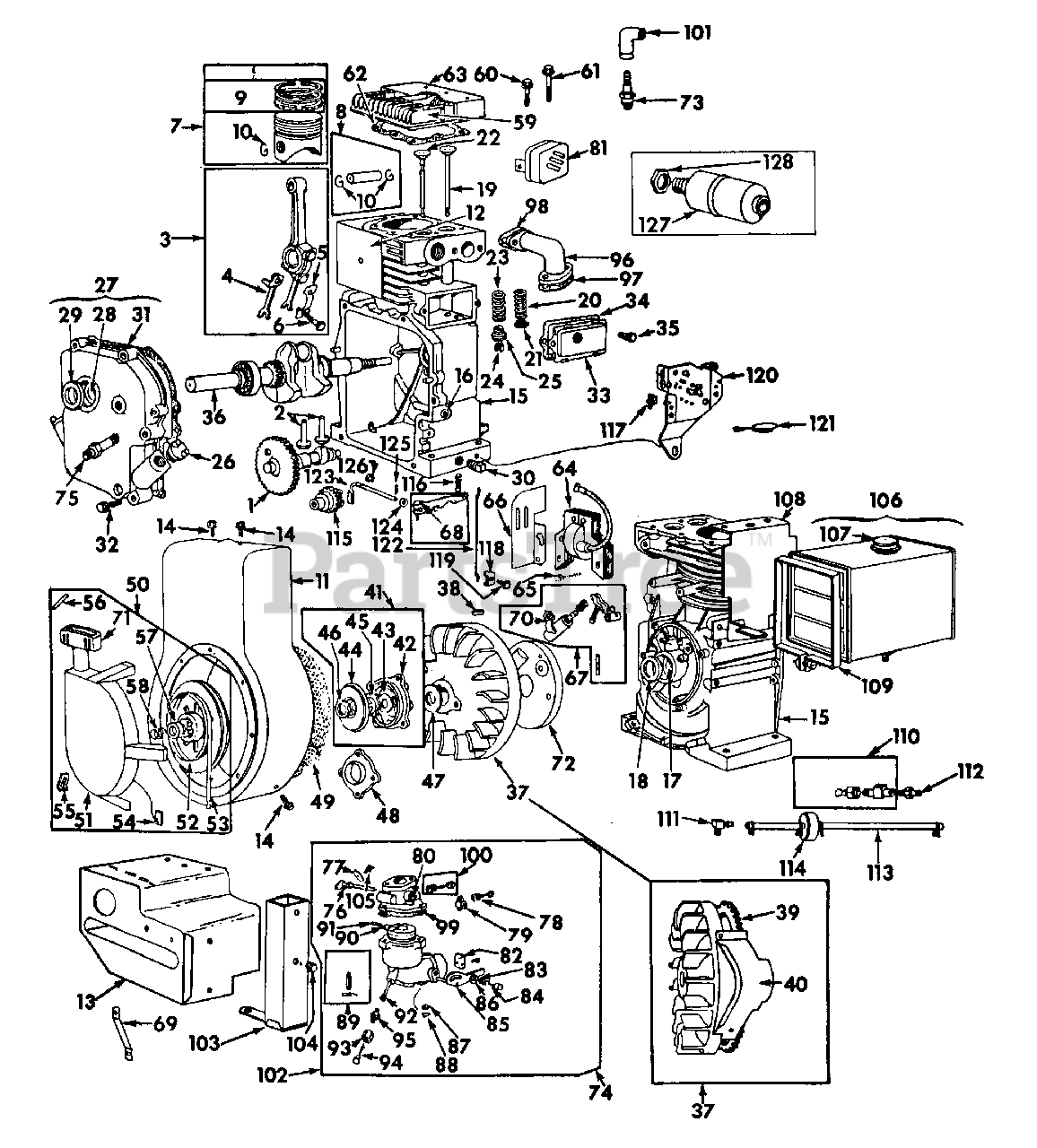

Engine Assembly Parts Diagram

  • Title

Cub Cadet IH-549066-R91

SERVICE ENGINE, 8 HP

Note: (BRIGGS & STRATTON 190412-0821-6)

$

$

Currently unavailable

Cub Cadet IH-179824

SCREW. 5/16-18 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

1

Cub Cadet IH-549356-R1

CAMSHAFT

$

$

Currently unavailable

2

Cub Cadet IH-549357-R1

TAPPET, VALVE

$

$

Not available

3

Cub Cadet IH-549359-R91

ROD ASSY, CONNECTING - STANDARD

$

$

Currently unavailable

4

Cub Cadet IH-549363-R1

DIPPER, CONNECTING ROD
(Superseded to BS-222113)

$

$

Not available

5

Cub Cadet IH-549364-R1

LOCK, SCREW HEAD

$

$

Not available

6

Cub Cadet IH-549365-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

7

Cub Cadet IH-549369-R91

PISTON ASSY, STD
(Superseded to BS-499907)

$

$

Not available

7

Cub Cadet IH-539654-R91

PISTON ASSY, .010 O/S

$

$

Currently unavailable

7

Cub Cadet IH-539655-R91

PISTON ASSY, .020 O/S

$

$

Currently unavailable

7

Cub Cadet IH-539656-R91

PISTON ASSY, .030 O/S

$

$

Currently unavailable

8

Cub Cadet IH-549370-R1

PIN ASSY, PISTON - STANDARD

$

$

Not available

8

Cub Cadet IH-539657-R1

PIN ASSY, PISTON - .005 O/S

$

$

Currently unavailable

9

Cub Cadet IH-539663-R1

RING SET, PISTON CHROME - STANDARD
(Superseded to BS-690014)

Note: (MACHINES BUILT 1971-1974)

$

$

Not available

9

Cub Cadet IH-539664-R1

RING SET, PISTON - STANDARD
(Superseded to BS-499921)

Note: (MACHINES BUILT 1971-1974)

$

$

Not available

9

Cub Cadet IH-539667-R1

RING SET, PISTON - .030 O/S

Note: (MACHINES BUILT 1971-1974)

$

$

Currently unavailable

9

Cub Cadet IH-61719-C91

RING SET, PISTON - STANDARD

Note: (MACHINES BUILT 1974 & SINCE)

$

$

Currently unavailable

10

LOCK, PISTON PIN

Note: (NOT SERVICED SEPARATELY, ORDER PIN. IH-549370-R1)

$

$

Not available

11

Cub Cadet IH-549373-R1

HOUSING, BLOWER

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

12

Cub Cadet IH-549377-R1

SHIELD, CYLINDER

$

$

Not available

Cub Cadet IH-26091-R1

SCREW, 10-24 X 3/8 ZND HEX-HD W/SPRING LOCKWASHER

$

$

Currently unavailable

13

Cub Cadet IH-549382-R1

HOOD, SNOW - W/O OVAL CUT-OUT

$

$

Currently unavailable

13

Cub Cadet IH-61722-C1

HOOD, SNOW - W/OVAL CUT-OUT

$

$

Currently unavailable

14

Cub Cadet IH-549381-R1

SCREW, 10-32 X 1-1/2 ZND FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-549390-R91

CYLINDER ASSY, ENGINE

$

$

Currently unavailable

16

BUSHING, GOVERNOR SHAFT

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

17

BUSHING & SEAL

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

18

Cub Cadet IH-549393-R1

SEAL, OIL

$

$

Not available

19

Cub Cadet IH-549394-R1

VALVE, INTAKE
(Superseded to BS-261055S)

$36.99

$

In Stock, only 2 left!

0

20

Cub Cadet IH-549395-R1

SPRING, INTAKE VALVE
(Superseded to BS-65906)

$

$

Not available

21

Cub Cadet IH-549396-R1

RETAINER, INTAKE VALVE
(Superseded to BS-690656)

$

$

Not available

22

Cub Cadet IH-549397-R1

VALVE, EXHAUST

$

$

Not available

23

Cub Cadet IH-549398-R1

SPRING, EXHAUST VALVE

$

$

Not available

24

Cub Cadet IH-549399-R1

RETAINER, ROTO-COIL
(Superseded to BS-494553)

$8.49

$

In Stock, only 1 left!

0

25

Cub Cadet IH-549400-R1

ROTO-COIL, EXHAUST VALVE
(Superseded to BS-691939)

$29.99

$

In Stock, Qty 5

0

26

Cub Cadet IH-549404-R1

PLUG, OIL FILLER
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet IH-549408-R1

COVER, CRANKCASE

$

$

Currently unavailable

28

BUSHING & OIL SEAL, COVER

$

$

Not available

29

Cub Cadet IH-549410-R1

SEAL, OIL
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 18

0

30

Cub Cadet IH-445686

PLUG, 3/8-18 AUTOMOTIVE SQ-HD OIL DRAIN
(Superseded to BS-690946)

$6.49

$

In Stock, Qty 8

0

31

GASKET, CRANKCASE

Note: (ORDER GASKET KIT, IH-549470-R91)

$

$

Not available

32

Cub Cadet IH-549412-R1

SCREW, CRANKCASE COVER MOUNTING

$

$

Not available

33

Cub Cadet IH-549420-R1

BREATHER, VALVE CHAMBER

$

$

Not available

34

GASKET, VALVE COVER

Note: (ORDER GASKET KIT, IH-549470-R91)

$

$

Not available

35

Cub Cadet IH-549422-R1

SCREW, BREATHER MTG
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

36

Cub Cadet IH-549432-R1

CRANKSHAFT

$

$

Currently unavailable

37

Cub Cadet IH-549433-R1

FLYWHEEL

$

$

Currently unavailable

38

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 9

0

39

Cub Cadet IH-549447-R91

GEAR ASSY, FLYWHEEL RING

Note: (ENGINES WITH STEEL GEAR)

$

$

Currently unavailable

39

Cub Cadet IH-144617-C91

GEAR ASSY, FLYWHEEL RING

Note: (ENGINES WITH ALUMINUM GEAR)

$

$

Currently unavailable

Cub Cadet IH-549448-R1

SCREW, 10-32 X 1-3/4 SLT-F HD MACH

$

$

Currently unavailable

Cub Cadet IH-549449-R1

NUT, 10-32 ESNA STOP

$

$

Currently unavailable

40

Cub Cadet IH-549909-R1

GUARD, RING GEAR

$

$

Currently unavailable

Cub Cadet IH-180073

SCREW, 5/16-18 X 1/2 ZND HEX-HD CAP
(Superseded to 710-3039)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet IH-549425-R91

CLUTCH ASSY, REWIND STARTER
(Superseded to BS-399671)

$41.99

$

In Stock, Qty 9

0

42

HOUSING, REWIND STARTER CLUTCH

$

$

Not available

43

WASHER, THRUST

$

$

Not available

44

RETAINER, WASHER

$

$

Not available

45

RATCHET, STARTER

$

$

Not available

46

SEAL, RATCHET

$

$

Not available

47

Cub Cadet IH-549431-R1

WASHER, SPRING

$

$

Currently unavailable

48

Cub Cadet IH-549435-R1

SHIELD, CLUTCH

$

$

Not available

Cub Cadet IH-20832-R1

SCREW, 8-32 X 1/2 ZND HEX-HD MACH W/SPRING LOCKWASHER

$

$

Currently unavailable

49

Cub Cadet IH-549437-R1

SCREEN, REWIND STARTER

$

$

Not available

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

50

Cub Cadet IH-549444-R91

STARTER ASSY, REWIND
(Superseded to BS-693900)

$94.99

$

In Stock, only 2 left!

0

Cub Cadet IH-26090-R1

SCREW, 10-32 X 3/8 ZND SLT-HEX-HD W/SPLIT RING LOCKWASHER

$

$

Currently unavailable

51

HOUSING, REWIND STARTER

$

$

Not available

52

PULLEY, REWIND STARTER

$

$

Not available

53

Cub Cadet IH-549441-R1

SPRING, REWIND STARTER
(Superseded to BS-490179)

$16.99

$

In Stock, only 3 left!

0

54

Cub Cadet IH-549442-R1

BUMPER, REWIND PULLEY

$

$

Not available

Cub Cadet IH-172300

SCREW, 8-32 X 1/2 ZND HEX-HD TAP.

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO.8 LOCK

$

$

Not available

55

Cub Cadet IH-549443-R1

SPRING, ANCHOR INSERT

$

$

Currently unavailable

56

PIN, STARTER GRIP PIN

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

57

Cub Cadet IH-549910-R1

ADAPTER, RATCHET SPRING
(Superseded to BS-691920)

$12.99

$

In Stock, only 3 left!

0

58

Cub Cadet IH-549911-R1

SPRING, RATCHET SPRING
(Superseded to BS-260414)

$

$

Not available

59

Cub Cadet IH-549454-R1

HEAD, CYLINDER

$

$

Not available

60

Cub Cadet IH-60403-C1

SCREW, CYLINDER HEAD - SHORT
(Superseded to BS-690912)

$4.49

$

In Stock, Qty 18

0

61

Cub Cadet IH-549456-R1

SCREW, CYLINDER HEAD - LONG

$

$

Not available

62

GASKET, CYLINDER HEAD

Note: (NOT SERVICED SEPARATELY. ORDER GASKET KIT, IH-549470-R91)

$

$

Not available

63

Cub Cadet IH-549379-R1

COVER, CYLINDER HEAD

$

$

Not available

64

Cub Cadet IH-549460-R1

ARMATURE ASSY, MAGNETO
(Superseded to BS-298968)

$

$

Not available

65

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

66

Cub Cadet IH-549462-R1

GUIDE, AIR

$

$

Not available

67

Cub Cadet IH-549471-R91

KIT, IGNITION SERVICE
(Superseded to BS-294628)

Note: (CONSISTS OF THE FOLLOWING 2 ITEMS)

$

$

Not available

BREAKER POINTS & CONDENSER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

PLUNGER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-549434-R1

FLYWHEEL KEY
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 9

0

Cub Cadet IH-549461-R1

SCREW, BREAKER ARM MOUNTING

$

$

Currently unavailable

68

Cub Cadet IH-549900-R91

LEVER ASSY, GOVERNOR

$

$

Currently unavailable

69

Cub Cadet IH-61720-C1

STRAP, SUPPORT

Note: (USED ONLY W/SNOW HOOD, IH-61722-C1)

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER. NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

70

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER. NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

71

Cub Cadet IH-405563-R91

PACKAGE, REWIND STARTER HANDLE & INSERT

$

$

Not available

72

Cub Cadet IH-549472-R1

COVER, BREAKER POINT

$

$

Currently unavailable

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD

$

$

Not available

73

IH-CJ8

PLUG, SPARK - CHAMPION

$

$

Not available

74

Cub Cadet IH-549494-R91

CARBURETOR ASSY
(Superseded to BS-390323)

$

$

Not available

Cub Cadet IH-271468

SCREW W/LOCK WASHER, 1/4-20 X 3/4 ZND FIL-HD MACH

$

$

Currently unavailable

75

Cub Cadet IH-61721-C1

STUD, STRAP TO CRANKCASE COVER

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

76

THROTTLE SHAFT & LEVER ASSY

$

$

Not available

77

VALVE, THROTTLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

78

SPRING, COMPRESSION

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

79

STOP, COMPRESSION

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-26092-R1

PIN, ROLL

$

$

Currently unavailable

Cub Cadet IH-131974

SCREW, 8-32 X 5/8 ZND FIL-HD MACH

$

$

Currently unavailable

80

BUSHING, THROTTLE SHAFT

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

81

Cub Cadet IH-58941-C1

MUFFLER, EXHAUST - SQUARE
(Superseded to BS-692304)

$35.99

$

In Stock, only 2 left!

0

Cub Cadet IH-180017

SCREW, 1/4-20 X 9/16 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

82

VALVE, CHOKE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

83

SPRING, COMPRESSION

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

84

SCREW, CHOKE LEVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

85

SHAFT & LEVER, CHOKE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

86

WASHER, CHOKE LEVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

87

FILTER, DRAIN

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

88

RETAINER, FILTER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

89

VALVE ASSY, FLOAT

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

90

FLOAT, CARBURETOR

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

91

PIN, FLOAT HINGE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

92

JET ASSY, CARBURETOR

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

93

NUT, JET NEEDLE PACKING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

94

VALVE, NEEDLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

95

RETAINER, NEEDLE VALVE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

96

Cub Cadet IH-549857-R1

ELBOW, CARBURETOR INTAKE

$

$

Currently unavailable

Cub Cadet IH-271212

SCREW, W/SPRING LOCKWASHER, 1/4-20 X 7/8 ZND FIL-HD MACH

$

$

Currently unavailable

97

GASKET, INTAKE ELBOW

Note: (NOT SERVICED SEPARATELY, ORDER GASKET KIT, IH-549470-R91)

$

$

Not available

98

GASKET, CARBURETOR

Note: (NOT SERVICED SEPARATELY, ORDER GASKET KIT, IH-549470-R91)

$

$

Not available

99

GASKET, CARBURETOR BODY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

100

VALVE ASSY, IDLE NEEDLE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

101

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 14

0

102

Cub Cadet IH-549856-R91

KIT, CARBURETOR OVERHAUL
(Superseded to BS-394693)

Note: (CONSISTS OF REF NOS 86, 89, 91-92, 94, 97-98 & 100)

$32.99

$

In Stock, Qty 10

0

103

Cub Cadet IH-549384-R1

STACK ASSY, CARBURETOR

$

$

Not available

104

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

105

SCREW, THROTTLE & CHOKE VALVE

$

$

Not available

106

Cub Cadet IH-549875-R91

TANK ASSY, FUEL

$

$

Currently unavailable

107

Cub Cadet IH-549876-R1

CAP, FUEL TANK

$

$

Not available

108

Cub Cadet IH-549877-R1

BRACKET, FUEL TANK

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND SPRING LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

109

Cub Cadet IH-549878-R91

STRAP ASSY, FUEL TANK

$

$

Currently unavailable

Cub Cadet IH-132282

SCREW, 1/4-20 X 1-1/2 ZND FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX. TYPE 5
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 11

0

110

Cub Cadet IH-549879-R91

OUTLET ASSY, FUEL

$

$

Not available

111

Cub Cadet IH-401967-R1

ELBOW, HOSE CONNECTOR

$

$

Not available

112

Cub Cadet IH-549881-R1

CONNECTOR, FUEL PIPE

$

$

Not available

113

HOSE. FUEL LINE

Note: (USE 18.3" OF 1/2 HOSE FROM BULK ROLL MARKED IH-427683-C1)

$

$

Not available

Cub Cadet IH-210511-R1

CLAMP, FUEL LINE

$

$

Not available

114

Cub Cadet IH-549883-R1

FILTER, IN-LINE FUEL
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

115

Cub Cadet IH-549884-R1

GEAR, GOVERNOR

$

$

Currently unavailable

Cub Cadet IH-373170-R1

WASHER, GOVERNOR GEAR

$

$

Currently unavailable

116

Cub Cadet IH-549885-R1

SPRING, GOVERNOR
(Superseded to BS-796260)

$5.49

$

In Stock, Qty 6

0

117

SWITCH ASSY, STOP

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

118

Cub Cadet IH-549887-R1

CLAMP, CASING
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 10

0

119

Cub Cadet IH-549888-R1

SCREW W/LOCKWASHER, HEX-HD
(Superseded to BS-690804)

$

$

Not available

120

Cub Cadet IH-549891-R1

BRACKET ASSY, GOVERNOR CONTROL

$

$

Not available

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND SPRING LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

121

Cub Cadet IH-549890-R1

WIRE ASSY, STOP SWITCH - 13 IN. LONG

$

$

Not available

121

Cub Cadet IH-549892-R1

WIRE ASSY, GROUND - 16-3/8 IN. LONG

$

$

Not available

Cub Cadet IH-539882-R1

CLIP, WIRE

$

$

Currently unavailable

122

Cub Cadet IH-549893-R1

LINK, GOVERNOR

$

$

Not available

123

Cub Cadet IH-549901-R1

CRANK, GOVERNOR

$

$

Currently unavailable

124

Cub Cadet IH-549898-R1

WASHER, GOVERNOR CRANK

$

$

Currently unavailable

125

Cub Cadet IH-549899-R1

COTTER, GOVERNOR CRANK
(Superseded to BS-93306)

$

$

Not available

126

Cub Cadet IH-268552-R1

RETAINER, GOVERNOR CRANK
(Superseded to BS-93307)

$6.49

$

In Stock, Qty 5

0

127

Cub Cadet IH-549907-R1

MUFFLER, EXHAUST - ROUND
(Superseded to BS-393010S)

$23.99

$

In Stock, Qty 5

0

128

Cub Cadet IH-549908-R1

LOCKNUT, MUFFLER

$

$

Not available

Cub Cadet IH-549470-R91

KIT, ENGINE GASKET
(Superseded to BS-299577)

Note: (CONSISTS OF THE FOLLOWING 8 ITEMS)

$37.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE - STANDARD

$

$

Not available

GASKET, CRANKCASE - .005 THICK

$

$

Not available

GASKET, CRANKCASE - .009 THICK

$

$

Not available

GASKET, CARBURETOR MOUNTING

$

$

Not available

GASKET, CYLINDER HEAD

$

$

Not available

GASKET, FILTER BOWL

$

$

Not available

GASKET, INTAKE ELBOW

$

$

Not available

GASKET, VALVE COVER

$

$

Not available

Cub Cadet IH-427683-C1

HOSE, 1/2" - BULK
(Superseded to 759-3330)

$63.99

$

In Stock, only 1 left!

0
