268 K - Husqvarna Cut-Off Saw (1999-09) CUTTING ARM & BLADE GUARD Parts Diagram

Cut-Off Saw

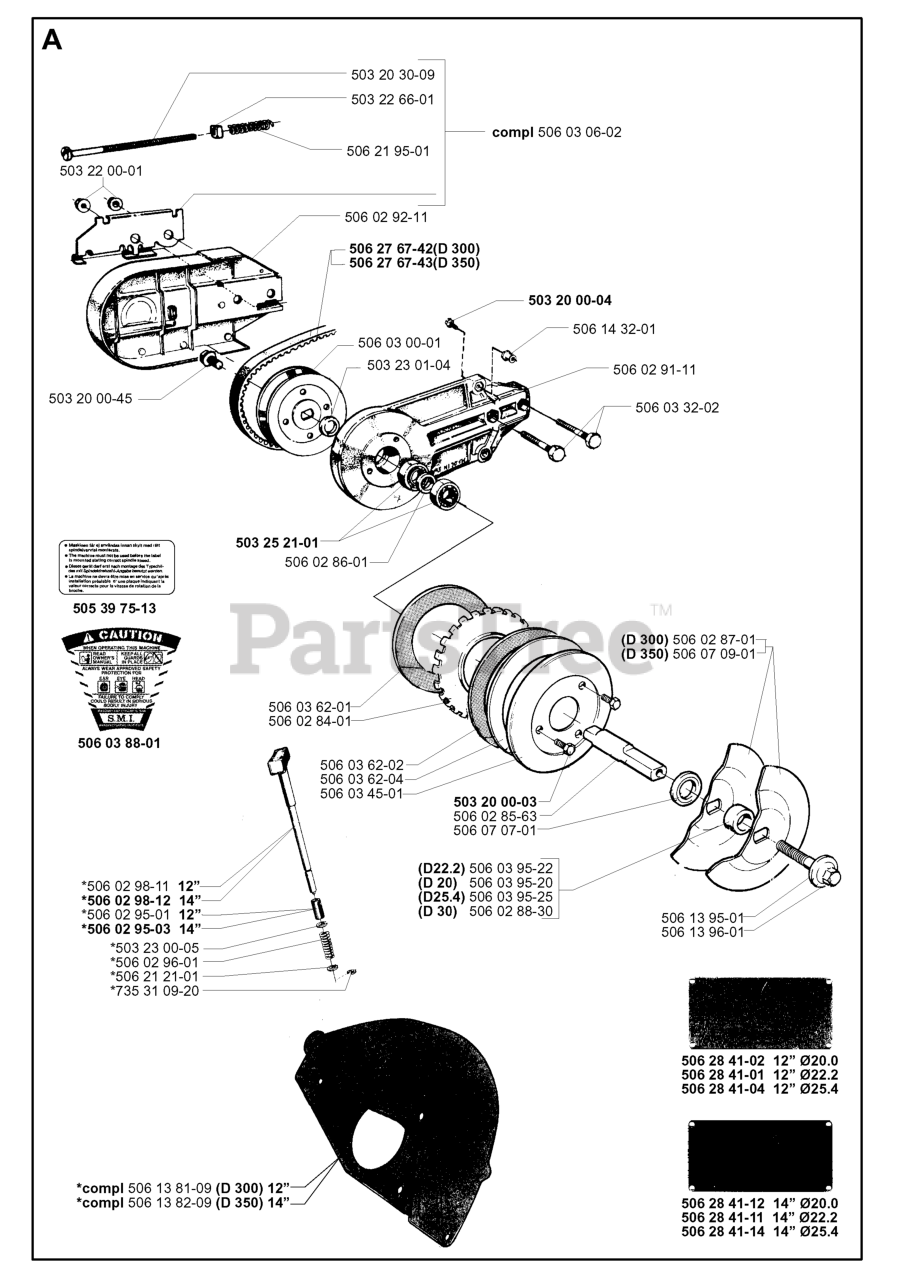

CUTTING ARM & BLADE GUARD Parts Diagram

  • Title

506 21 95-01

Husqvarna 506219501

SPRING

$5.49

$

Usually ships in 3-10 days

0

506 03 45-01

Husqvarna 506034501

WASHER

$13.99

$

Usually ships in 3-10 days

0

506 28 41-02

Husqvarna 506284102

Label

Note: 12 DIA.20.0

$8.49

$

Usually ships in 3-10 days

0

506 27 67-42

Husqvarna 506276742

NEEDS DESCRIPTION

Note: D 300

$

$

Currently unavailable

506 03 00-01

Husqvarna 506030001

PULLEY

$43.99

$

Usually ships in 3-10 days

0

506 14 32-01

Husqvarna 506143201

CATCH

$11.99

$

Usually ships in 3-10 days

0

503 22 66-01

Husqvarna 503226601

NUT

$6.49

$

Usually ships in 3-10 days

0

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

506 03 88-01

Husqvarna 506038801

Warning Label

$

$

Not available

506 03 06-02

Husqvarna 506030602

RP ADJUSTER

$28.99

$

Usually ships in 3-10 days

0

506 02 95-03

Husqvarna 506029503

HOSE

Note: 14

$2.99

$

Usually ships in 3-10 days

0

506 02 96-01

Husqvarna 506029601

SPRING

$5.49

$

Usually ships in 3-10 days

0

506 02 98-11

Husqvarna 506029811

CONTROL KNOB

Note: 12

$32.99

$

Usually ships in 3-10 days

0

503 20 00-45

Husqvarna 503200045

SCREW

$6.99

$

Usually ships in 3-10 days

0

506 02 92-11

Husqvarna 506029211

GUARD

$

$

Not available

503 23 00-05

Husqvarna 503230005

WASHER 6.5X11

$6.49

$

In Stock, only 3 left!

0

506 03 32-02

Husqvarna 506033202

SCREW

$8.49

$

Usually ships in 3-10 days

0

503 20 30-09

Husqvarna 503203009

Screw

$7.99

$

Usually ships in 3-10 days

0

503 25 21-01

Husqvarna 503252101

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

506 13 95-01

Husqvarna 506139501

WASHER
(Superseded to 506139511)

$29.99

$

In Stock, only 2 left!

0

506 28 41-12

Husqvarna 506284112

ARBOR SIZE DECAL/20

Note: 14 DIA.20.0

$

$

Not available

506 03 62-04

Husqvarna 506036204

SPACER

$8.49

$

Usually ships in 3-10 days

0

506 03 62-01

Husqvarna 506036201

SPACER

$8.07

$

In Stock, only 2 left!

0

506 07 07-01

Husqvarna 506070701

FLANGE

$22.99

$

Usually ships in 3-10 days

0

506 27 67-43

Husqvarna 506276743

V-BELT
(Superseded to 531030352)

Note: D 350

$

$

Not available

506 03 95-20

Husqvarna 506039520

BUSHING-20MM
(Superseded to 506379620)

Note: D 20

$17.99

$

In Stock, Qty 8

0

506 21 21-01

Husqvarna 506212101

WASHER

$8.49

$

Usually ships in 3-10 days

0

506 03 95-22

Husqvarna 506039522

BUSHING-7/8"
(Superseded to 506379622)

Note: D22.2

$31.99

$

In Stock, only 1 left!

0

506 02 85-63

Husqvarna 506028563

SHAFT
(Superseded to 506298364)

$74.99

$

Usually ships in 3-10 days

0

503 23 01-04

Husqvarna 503230104

WASHER 15X21

$6.49

$

Usually ships in 3-10 days

0

506 28 41-11

Husqvarna 506284111

Arbor Size Decal/22.2 Dia. - 14"

Note: 14 DIA.22.2

$

$

Not available

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503 20 00-04

Husqvarna 503200004

SCREW M6SF 5X16

$

$

Not available

506 02 87-01

Husqvarna 506028701

WASHER

Note: D 300

$48.99

$

In Stock, Qty 8

0

506 02 86-01

Husqvarna 506028601

SPACER

$6.49

$

Usually ships in 3-10 days

0

503 20 00-03

Husqvarna 503200003

SCREW M6SF 5X12

$6.49

$

Usually ships in 3-10 days

0

506 07 09-01

Husqvarna 506070901

WASHER

Note: D 350

$51.99

$

Usually ships in 3-10 days

0

506 02 98-12

Husqvarna 506029812

HANDLE

Note: 14

$32.99

$

Usually ships in 3-10 days

0

506 28 41-01

Husqvarna 506284101

Labels

Note: 12 DIA.22.2

$

$

Not available

506 13 81-09

Husqvarna 506138109

GUARD

Note: (D 300) 12

$

$

Not available

506 02 84-01

Husqvarna 506028401

WASHER

$15.64

$

Usually ships in 3-10 days

0

506 13 96-01

Husqvarna 506139601

SCREW

$29.99

$

In Stock, only 2 left!

0

505 39 75-13

Husqvarna 505397513

Information Label

$

$

Not available

506 02 88-30

Husqvarna 506028830

BUSHING-30MM

Note: D 30

$27.99

$

In Stock, Qty 5

0

506 02 95-01

Husqvarna 506029501

HOSE

Note: 12

$2.99

$

In Stock, only 1 left!

0

506 03 95-25

Husqvarna 506039525

BUSHING-1"
(Superseded to 578398201)

Note: D25.4

$29.99

$

In Stock, Qty 12

0

506 02 91-11

Husqvarna 506029111

BEARING HOUSING

$136.99

$

In Stock, only 1 left!

0

506 03 62-02

Husqvarna 506036202

SPACER

$9.49

$

Usually ships in 3-10 days

0

506 28 41-14

Husqvarna 506284114

ARBOR SIZE DECAL/25.4

Note: 14 DIA.25.4

$15.99

$

Usually ships in 3-10 days

0

506 28 41-04

Husqvarna 506284104

LABEL

Note: 12 DIA.25.4

$14.99

$

Usually ships in 3-10 days

0

506 13 82-09

Husqvarna 506138209

GUARD
(Superseded to 506139011)

Note: (D 350) 14

$243.48

$

Usually ships in 3-10 days

0
