2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 300000001 - 399999999) (1973) LAWN-BOY SNOW THROWERS AUGER HOUSING & CHUTE PARTS LIST MODEL 2680B Parts Diagram

26" Snow Thrower

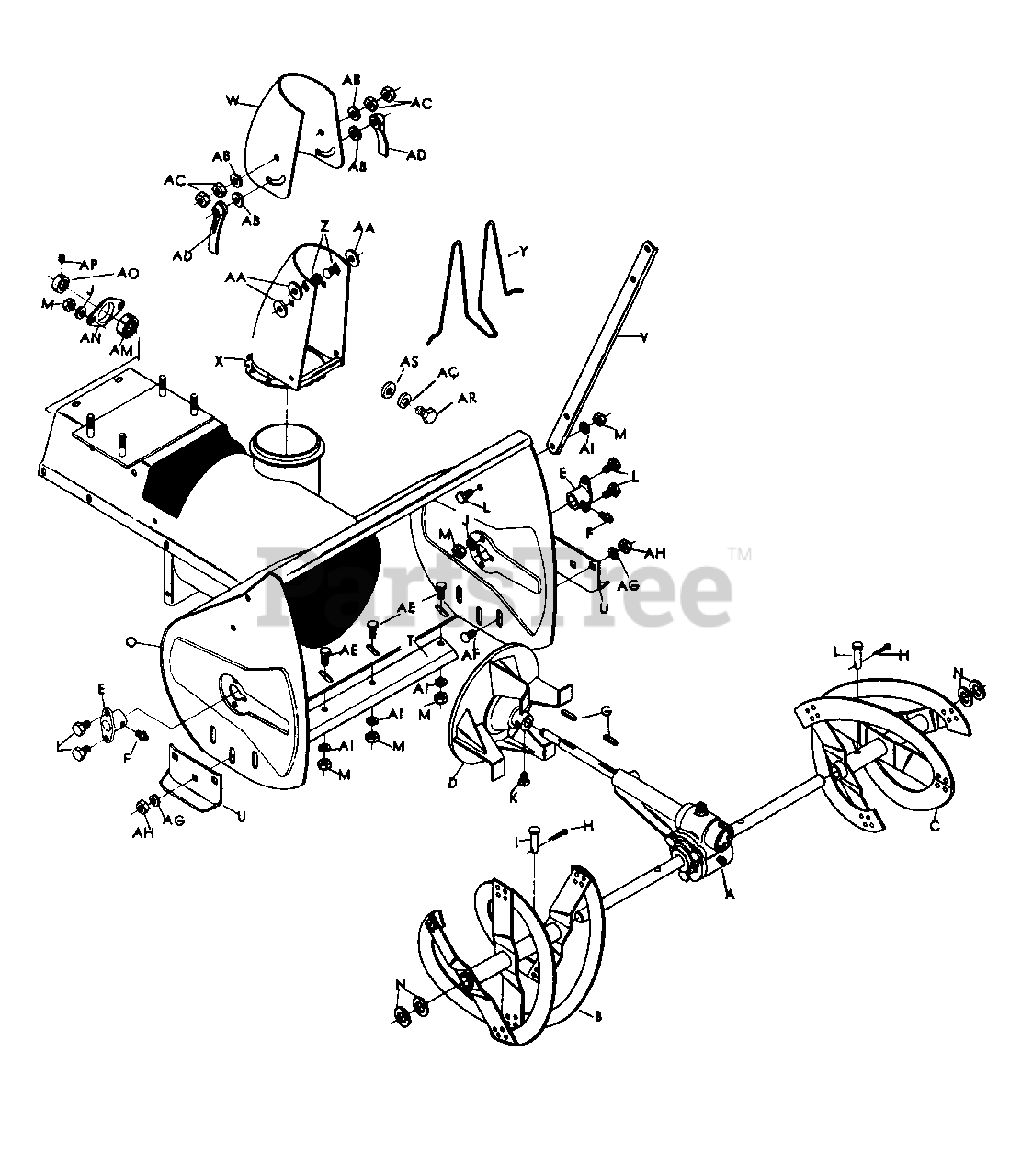

LAWN-BOY SNOW THROWERS AUGER HOUSING & CHUTE PARTS LIST MODEL 2680B Parts Diagram

  • Title

A

Lawn-Boy 18727

Gear Case Ass'y.-Breakdown on RIDER MOWER FRONT END GROUP (MODELS 9329, 9329E, 9329ES, 9369, 9369E & 9369ES) PARTS LIST
(Superseded to 742175)

$

$

Not available

B

Lawn-Boy 16005

Auger Assembly-R.H.
(Superseded to 740061)

$1969.99

$

Usually ships in 3-6 days

0

C

Lawn-Boy 16006

Auger Assembly-L.H.
(Superseded to 740062)

$1969.99

$

Usually ships in 3-6 days

0

D

Lawn-Boy 14849

Impeller Assembly
(Superseded to 740011-03)

$

$

Not available

E

Lawn-Boy 14845

Auger Bearing
(Superseded to 700283)

$

$

Not available

F

Lawn-Boy 1102

Grease Fitting
(Superseded to 700119)

$

$

Not available

G

Key-3/16 x 3/16 x 1

$

$

Not available

H

1/8 x 3/4 Cotter Pin-Pl

$

$

Not available

I

Lawn-Boy 10417

Shear Pin
(Superseded to 700280)

$5.99

$

Usually ships in 3-6 days

0

J

5/16 Lockwasher

$

$

Not available

K

3/8-16 x 1/2 Sq. Hd. Setscrew, Cup Pt.

$

$

Not available

L

5/16-18 x 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

M

5/16-18 Hex Nut-Pl.

$

$

Not available

N

Lawn-Boy 1088

Washer

$

$

Not available

Lawn-Boy 18908

Auger Wrap & Main Frame Assembly

$

$

Currently unavailable

T

Lawn-Boy 10380

Scraper Blade
(Superseded to 700282)

$

$

Not available

U

Lawn-Boy 13888

Skid
(Superseded to 700285-03)

$76.99

$

Usually ships in 3-6 days

0

V

Lawn-Boy 10382

Drift Cutter
(Superseded to 700284)

$

$

Not available

W

Lawn-Boy 10388

Chute Deflector

$

$

Currently unavailable

X

Lawn-Boy 18719

Chute & Ring Assembly

$

$

Not available

Y

Lawn-Boy 13008

Chute Guard
(Superseded to 702894)

$

$

Not available

Z

Lawn-Boy 10389

3/8-16 x 1 Short Neck Carriage Bolt-Pl.
(Superseded to 703361)

$

$

Not available

AA

1/2 Flat Washer-Pl.

$

$

Not available

AB

3/8 Flat Washer-Pl.

$

$

Not available

AC

3/8-16 Hex Jam Nut-Pl.

$

$

Not available

AD

Lawn-Boy 11668

Wing Nut
(Superseded to 702895)

$

$

Not available

AE

Lawn-Boy 10888

5/16-18 x 3/4 Wafer Hd. Bolt-Pl.
(Superseded to 146511)

$

$

Not available

AF

3/8-16 x 3/4 Carriage Bolt-Pl.

$

$

Not available

AG

3/8 Lockwasher-Pl.

$

$

Not available

AH

3/8-16 Hex Nut-Pl.

$

$

Not available

AI

5/16 Lockwasher-Pl.

$

$

Not available

AM

Lawn-Boy 12539

Bearing
(Superseded to 700542)

$

$

Not available

AN

Lawn-Boy 12538

Stamping
(Superseded to 700083)

$5.99

$

Usually ships in 3-6 days

0

AO

Lawn-Boy 1426

Collar w/Setscrew
(Superseded to 701658)

$37.99

$

In Stock, only 1 left!

0

AP

1/4-20 x 1/4 Socket Setscrew

$

$

Not available

AQ

1/4 Lockwasher-Pl.

$

$

Not available

AR

1/4-20 x 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AS

1/4 SAE Flat Washer-Pl.

$

$

Not available
