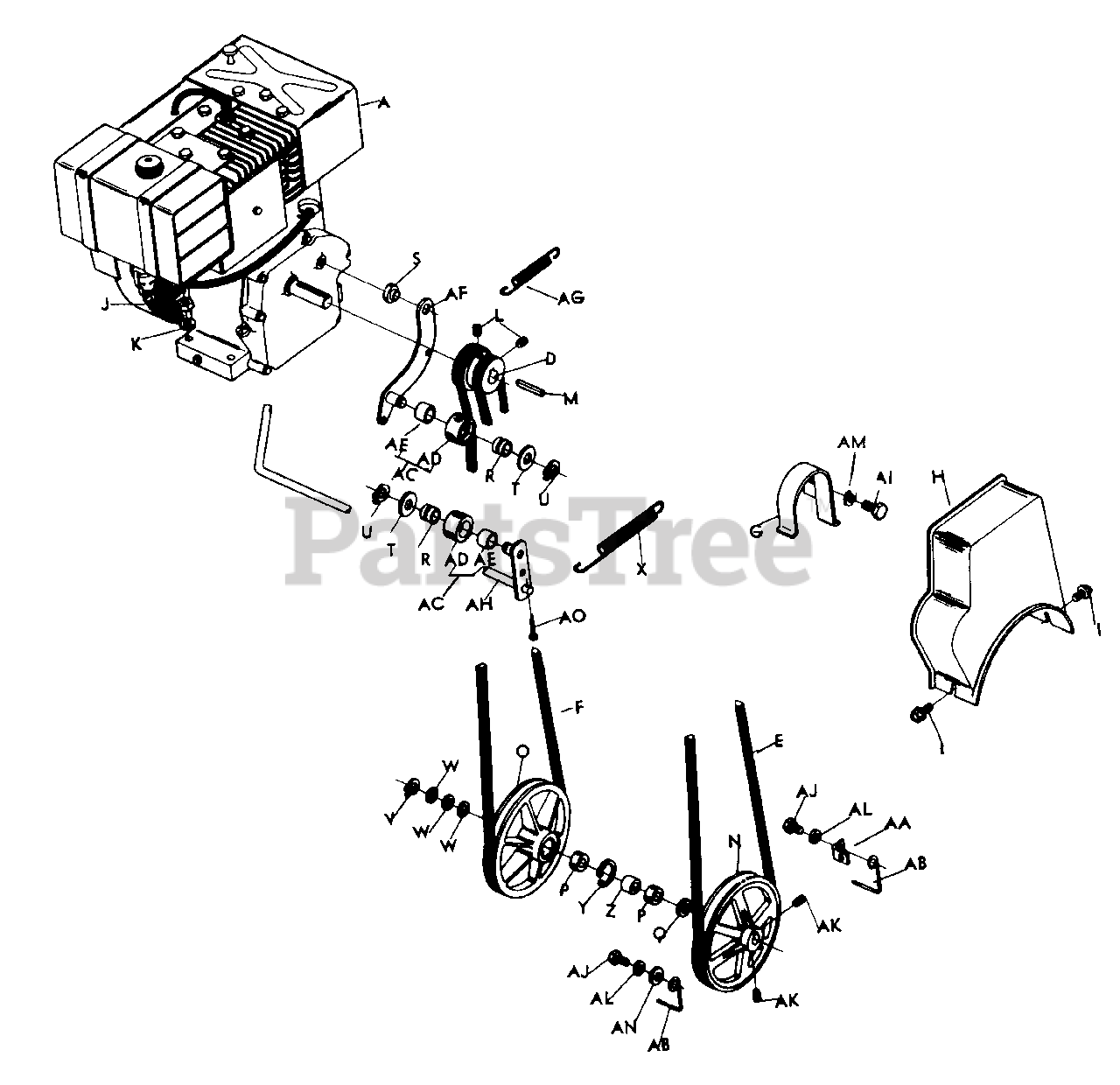

2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 300000001 - 399999999) (1973) LAWN-BOY SNOW THROWERS ENGINE, PRIMARY DRIVE & CLUTCH PARTS LIST MODEL 2680B Parts Diagram

26" Snow Thrower

LAWN-BOY SNOW THROWERS ENGINE, PRIMARY DRIVE & CLUTCH PARTS LIST MODEL 2680B Parts Diagram

  • Title

Lawn-Boy 24279

Engine-8 H.P.-B&S Model 190402-0751-01

$

$

Currently unavailable

Lawn-Boy 16014

Engine Pulley

$

$

Currently unavailable

Lawn-Boy 16386

V-Belt-Auger Drive
(Superseded to 703632)

$24.99

$

Usually ships in 3-6 days

0

Lawn-Boy 16146

V-Belt-Traction Drive
(Superseded to 703627)

$34.99

$

Usually ships in 3-6 days

0

Lawn-Boy 23085

Belt Guide Assembly
(Superseded to 741290)

$

$

Not available

H

Lawn-Boy 14921

Belt Guard Assembly
(Superseded to 742132)

$

$

Not available

I

Lawn-Boy 18073

Lock Screw 1/4-20 x 1/2-Pl.
(Superseded to 112-0167)

$6.49

$

In Stock, Qty 6

0

J

5/16-18 Hex Nut-Pl.

$

$

Not available

K

5/16 Lockwasher-Pl.

$

$

Not available

L

5/16-18 x 5/16 Setscrew Sq. Key-1/4 x 1/4 x 1 3/4

$

$

Not available

N

Lawn-Boy 14733

Pulley-Impeller Drive

$

$

Not available

O

Lawn-Boy 24122

Pulley-Traction Drive
(Superseded to 703710)

$

$

Not available

P

Lawn-Boy 17464

Bearing
(Superseded to 700079)

$

$

Not available

Q

Lawn-Boy 18734

Spacer
(Superseded to 704457)

$

$

Not available

R

Lawn-Boy 10471

Bushing
(Superseded to 703367)

$

$

Not available

S

Lawn-Boy 14792

Pivot Bushing
(Superseded to 704387)

$

$

Not available

T

Lawn-Boy 10474

Washer
(Superseded to 700812)

$

$

Not available

U

Lawn-Boy 1042

Retaining Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

V

Lawn-Boy 3917

Retaining Ring
(Superseded to 700091)

$

$

Not available

W

Lawn-Boy 24123

Washer
(Superseded to 704462)

$

$

Not available

X

Lawn-Boy 11707

Spring
(Superseded to 703377)

$31.99

$

In Stock, only 1 left!

0

Y

Lawn-Boy 2569

Retaining Ring
(Superseded to 702107)

$

$

Not available

Z

Lawn-Boy 18723

Spacer
(Superseded to 704456)

$

$

Not available

AA

Lawn-Boy 18917

Spring Bracket

$

$

Not available

AB

Lawn-Boy 12062

Belt Finger

$

$

Not available

AC

Lawn-Boy 10532

Idler & Bearing Assembly
(Superseded to 742687)

$

$

Not available

AD

Lawn-Boy 10473

Idler
(Superseded to 742687)

$

$

Not available

AE

Lawn-Boy 10472

Bearing
(Superseded to 704179)

$

$

Not available

AF

Lawn-Boy 18133

Idler Arm Assembly

$

$

Not available

AG

Lawn-Boy 9087

Spring
(Superseded to 703329)

$

$

Not available

AH

Lawn-Boy 18743

Idler Arm Assembly

$

$

Not available

AI

1/2-20 x 1 1/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AJ

1/4-20 x 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AK

3/8-16 x 3/4 Sq. Hd. Setscrew-H.T. & Pl.

$

$

Not available

AL

1/4 Lockwasher-Pl.

$

$

Not available

AM

1/2 Lockwasher-Pl.

$

$

Not available

AN

1/4 Flat Washer-Pl.

$

$

Not available

AO

1/8 x 3/4 Cotter Pin-Pl.

$

$

Not available
