2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 300000001 - 399999999) (1973) LAWN-BOY SNOW THROWERS HANDLE & CONTROL PARTS LIST MODEL 2680B Parts Diagram

26" Snow Thrower

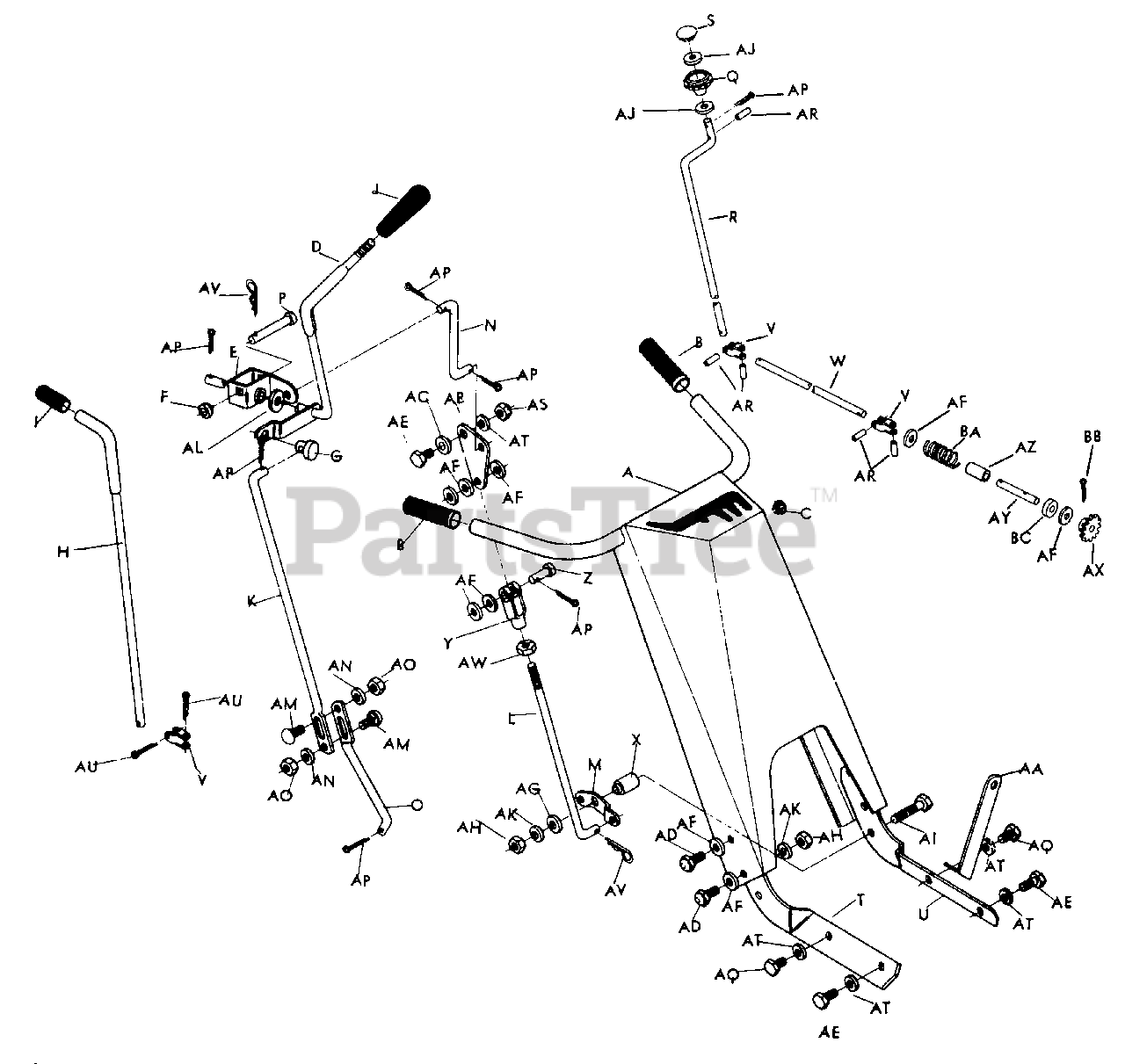

LAWN-BOY SNOW THROWERS HANDLE & CONTROL PARTS LIST MODEL 2680B Parts Diagram

  • Title

A

Lawn-Boy 18748

Handle Bar Assembly

$

$

Currently unavailable

B

Lawn-Boy 1183

Grip
(Superseded to 701446)

$

$

Not available

C

Lawn-Boy 12275

Plug Button

$

$

Not available

D

Lawn-Boy 14755

Control Lever Assembly

$

$

Not available

E

Lawn-Boy 14785

Bracket Assembly w/Bushings-Control Lever

$

$

Not available

F

Lawn-Boy 16066

Bushing
(Superseded to 702547)

$

$

Not available

G

Lawn-Boy 17744

Pivot Pin
(Superseded to 742165)

$

$

Not available

H

Lawn-Boy 18741

Auger Clutch Rod Assembly
(Superseded to 742176)

$

$

Not available

I

Lawn-Boy 18182

Grip
(Superseded to 704443)

$

$

Not available

J

Lawn-Boy 16002

Control Knob
(Superseded to 703625)

$

$

Not available

K

Lawn-Boy 14759

Shifter Rod

$

$

Not available

L

Lawn-Boy 14758

Traction Clutch Rod

$

$

Not available

M

Lawn-Boy 14750

Bellcrank
(Superseded to 704376)

$

$

Not available

N

Lawn-Boy 14757

Link

$

$

Currently unavailable

O

Lawn-Boy 14965

Shifter Rod End
(Superseded to 704395)

$

$

Not available

P

Lawn-Boy 16057

Clevis Pin

$

$

Not available

Q

Lawn-Boy 11528

Knob
(Superseded to 700189)

$35.99

$

Usually ships in 3-6 days

0

R

Lawn-Boy 18720

Crank-Chute Control

$

$

Not available

S

Lawn-Boy 11529

Plug-Knob
(Superseded to 700169)

$

$

Not available

T

Lawn-Boy 14761

Handle Bracket-R.H.
(Superseded to 704381)

$

$

Not available

U

Lawn-Boy 14762

Handle Bracket-L.H.
(Superseded to 704382)

$77.99

$

Usually ships in 3-6 days

0

V

Lawn-Boy 13000

Universal
(Superseded to 700061)

$

$

Not available

W

Lawn-Boy 18721

Chute Shaft

$

$

Not available

X

Lawn-Boy 2044

Pivot Bushing

$

$

Not available

Y

Lawn-Boy 2490

Clevis
(Superseded to 704038)

$

$

Not available

Z

Lawn-Boy 3441

Clevis Pin
(Superseded to 702012)

$

$

Not available

AA

Lawn-Boy 14776

Chute Shaft Support
(Superseded to 704384)

$

$

Not available

AB

Lawn-Boy 14955

Bellcrank
(Superseded to 704394)

$

$

Not available

AC

Lawn-Boy 14273

Pivot Bushing
(Superseded to 702546)

$

$

Not available

AD

Lawn-Boy 1144

3/8-16 x 1 Acorn Hd. Bolt-Pl.
(Superseded to 703213)

$

$

Not available

AE

5/16-18 x 1 Hex Hd. Capscrew-Pl.

$

$

Not available

AF

3/8 Flat Washer-Pl.

$

$

Not available

AG

5/16 Flat Washer-Pl.

$

$

Not available

AH

3/8-16 Hex Nut-Pl.

$

$

Not available

AI

3/8-16 x 2 1/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AJ

3/8 SAE Flat Washer-Pl.

$

$

Not available

AK

3/8 Lockwasher-Pl.

$

$

Not available

AL

7/16 SAE Flat Washer-Pl.

$

$

Not available

AM

1/4-20 x 3/4 Carriage Bolt-Pl.

$

$

Not available

AN

1/4 Lockwasher-Pl.

$

$

Not available

AO

1/4-20 Hex Nut-Pl.

$

$

Not available

AP

1/8 x 3/4 Cotter Pin-Pl.

$

$

Not available

AQ

5/16-18 x 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AR

1/8 x 3/4 Roll Pin-Pl.

$

$

Not available

AS

5/16-18 Cone Locknut-Pl.

$

$

Not available

AT

5/16 Lockwasher-Pl.

$

$

Not available

AU

Lawn-Boy 14895

1/8 x 1 Cotter Pin-Stainless Steel
(Superseded to 700170)

$2.99

$

Usually ships in 3-6 days

0

AV

Lawn-Boy 9678

Spring Clip
(Superseded to 700257)

$

$

Not available

AW

3/8-16 Hex Jam Nut-Pl.

$

$

Not available

AX

Lawn-Boy 11628

Sprocket Assembly

$

$

Currently unavailable

AY

Lawn-Boy 14926

Sprocket Shaft
(Superseded to 704392)

$

$

Not available

AZ

Lawn-Boy 11139

Spacer
(Superseded to 704219)

$

$

Not available

BA

Lawn-Boy 10445

Spring
(Superseded to 704171)

$

$

Not available

BB

Lawn-Boy 16797

1/8 x 1 1/2 Cotter Pin-Stainless Steel
(Superseded to 704422)

$

$

Not available

BC

Lawn-Boy 18924

Rubber Washer
(Superseded to 703665)

$

$

Not available
