2690082 - Simplicity Consumer 44" Zero-Turn Mower, 18hp 44" & 50" Mower Deck - Housing, Arbors & Blades Group (FI0027) Parts Diagram

Consumer 44" Zero-Turn Mower, 18hp

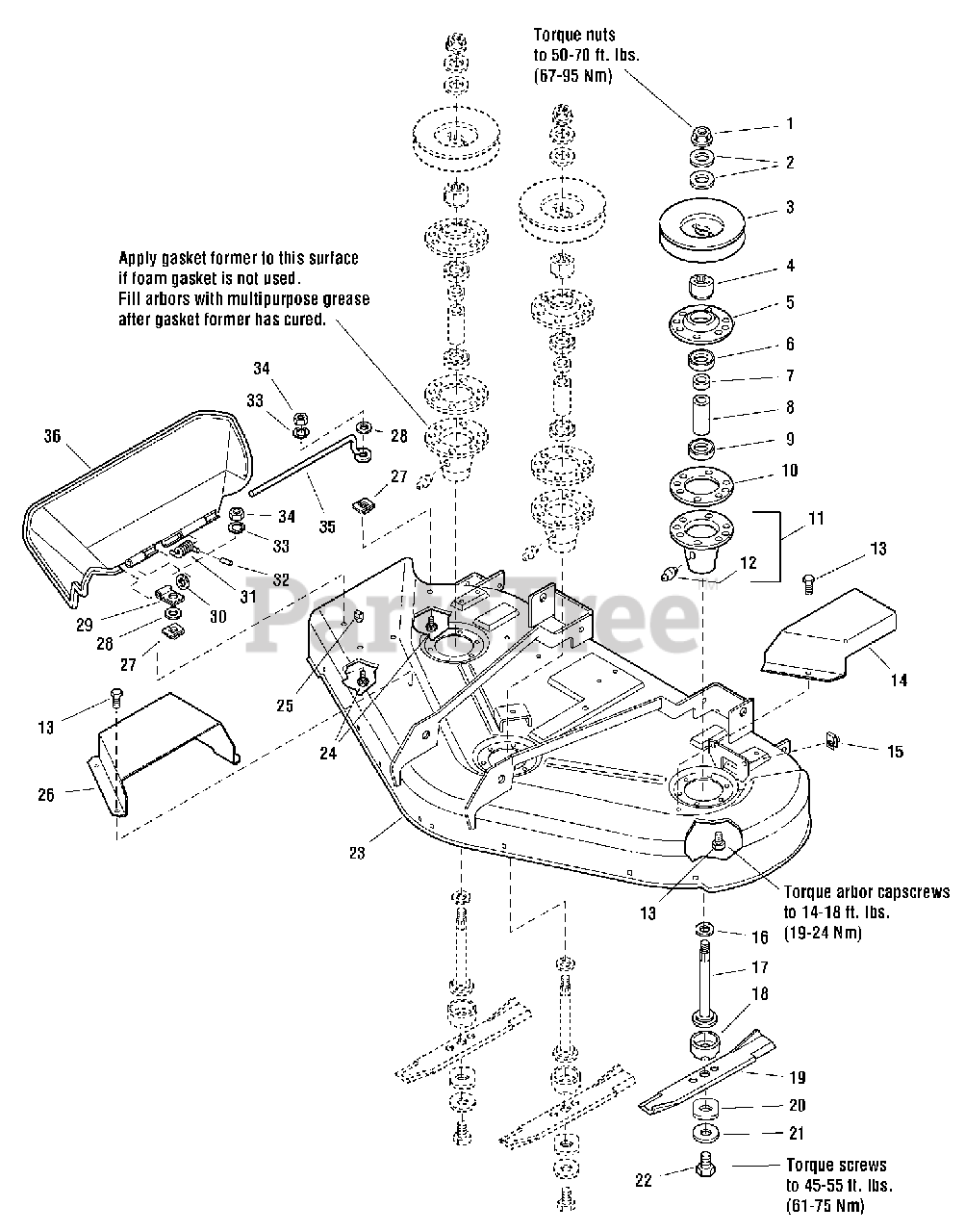

44" & 50" Mower Deck - Housing, Arbors & Blades Group (FI0027) Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 19

0

2

Simplicity 1713675SM

WASHER, Bellevilled, 9/16

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713613SM

HUB

$15.99

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

In Stock, Qty 20+

0

6

Simplicity 2108202SM

BEARING, Ball, 3/4 X 1-3/4 X 5/8

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724SM

SPACER, 21/32 X 3/4 X 5/8

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1732544SM

SPACER, 11/16 X 5/32 X 2-11/16

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897SM

BEARING, Ball, 11/16 X 1-9/16 X 15/32

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

SEAL, Foam

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5048447CSM

COVER, Arbor, LH, Orange

$28.99

$

Usually ships in 2-12 days

0

14

Simplicity 5048447DSM

COVER, Arbor, LH, Red

$

$

Not available

15

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 9

0

16

Simplicity 1713619SM

WASHER, 9/16, BLACK

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1713609SM

SHAFT, Arbor, 6-1/2

$30.99

$

In Stock, Qty 9

0

18

Simplicity 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

19

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

Note: (For 44" Deck)

$25.99

$

In Stock, Qty 20+

0

19

Simplicity 1708229ASM

BLADE, Mower, 18-1/8 (FOR 50" DECKS)
(Superseded to 1716697ASM)

$24.99

$

In Stock, Qty 20+

0

20

Simplicity 1713089SM

WASHER, Hex, 11/16 X 2

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1656916SM

WASHER, Spring, 15/32, BLACK

$7.49

$

In Stock, Qty 20+

0

22

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 X 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5048742CSM

MOWER HOUSING ASSEMBLY, 44" Mower, Orange (Includes Decals)

$

$

Not available

23

Simplicity 5048743CSM

MOWER HOUSING ASSEMBLY, 50" Mower, Orange (Includes Decals)

$

$

Not available

23

Simplicity 5048898DSM

MOWER HOUSING ASSEMBLY, 44" Mower, Red (Includes Decals)

$

$

Not available

23

Simplicity 5048899DSM

MOWER HOUSING ASSEMBLY, 50" Mower, Red (Includes Decals)

$

$

Not available

24

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 X 7/8

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1705115SM

PLUG, Hole

$4.49

$

In Stock, Qty 6

0

26

Simplicity 5048446CSM

COVER, Arbor, RH, Orange

$31.99

$

Usually ships in 2-12 days

0

26

Simplicity 5048446DSM

COVER, Arbor, RH, Red

$

$

Not available

27

Simplicity 1960518SM

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

28

Simplicity 1960353SM

WASHER, 1/4, BLACK
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1704873SM

CLAMP

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1919326SM

WASHER, 5/16, BLACK

$4.49

$

In Stock, Qty 18

0

31

Simplicity 7101082SM

SPRING, Torsion, Chute
(Superseded to 1759750YP)

$8.49

$

In Stock, only 1 left!

0

32

Simplicity 1723323SM

VINYL CAP

$4.99

$

In Stock, Qty 6

0

33

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

34

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

35

Simplicity 1706709

ROD, Deflector
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 6

0

36

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, Qty 13

0
