2690367 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler 61" Mower Deck - Belt, Pulleys & Idler Arm (42356pb0) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

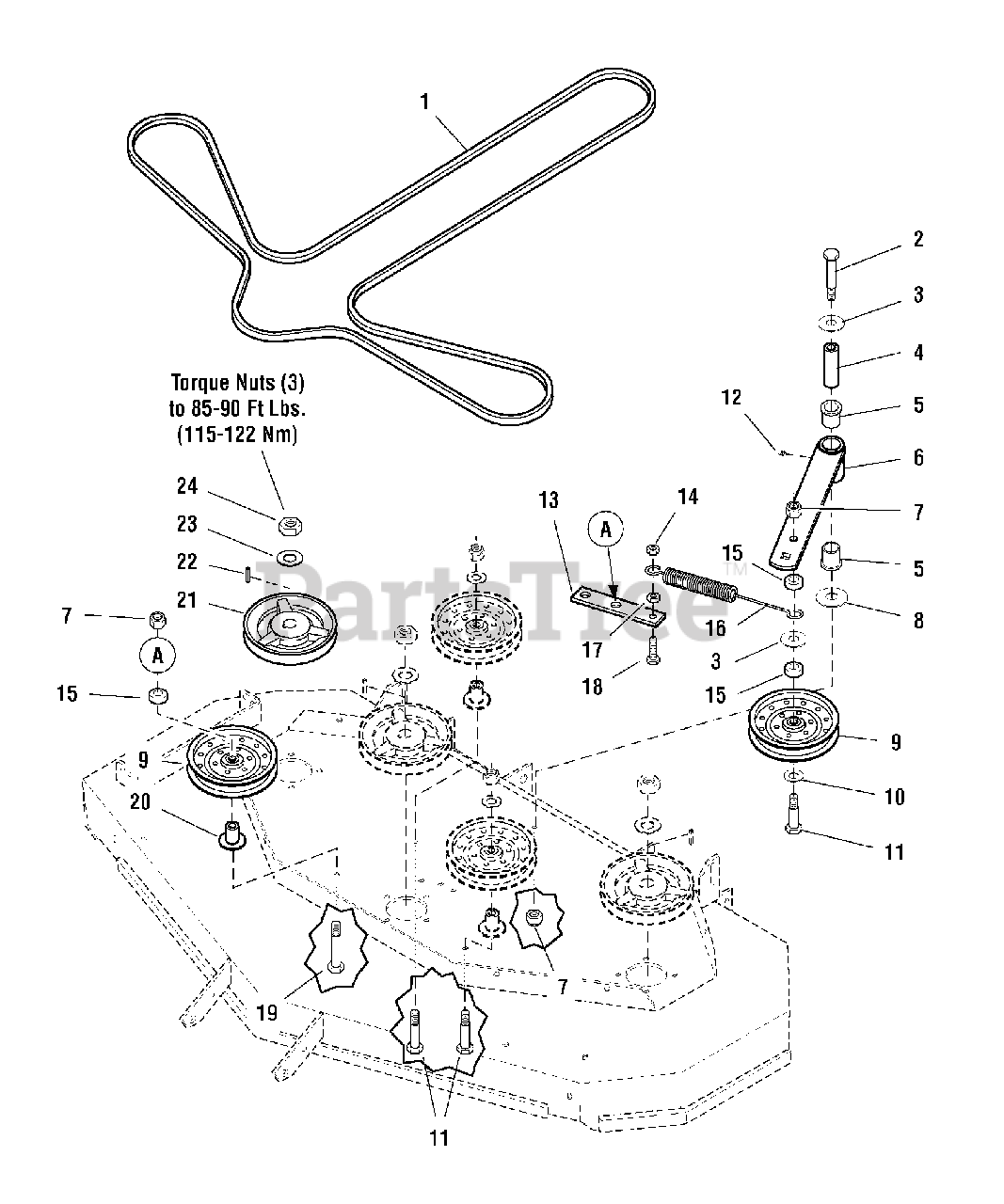

61" Mower Deck - Belt, Pulleys & Idler Arm (42356pb0) Parts Diagram

  • Title

1

Simplicity 5103871YP

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC

$139.99

$

In Stock, only 1 left!

0

2

Simplicity 5025017X36SM

BOLT, 1/2-13 x 4-1/2

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025150SM

WASHER, 1/2" USS

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 5045022SM

SPACER, .52 x 1.00 x 3.50

$24.99

$

In Stock, only 1 left!

0

5

Simplicity 5021541SM

BUSHING, Flange

$9.99

$

In Stock, Qty 13

0

6

Simplicity 5061305CSM

IDLER ARM

$

$

Not available

7

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 13

0

8

Simplicity 5025281SM

WASHER, 5/8" SAE

$3.99

$

In Stock, only 3 left!

0

9

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 6

0

10

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 6

0

11

Simplicity 5025017X24SM

BOLT, 1/2-13 x 3

$5.99

$

In Stock, only 2 left!

0

12

Simplicity 5020095SM

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5061226C

MOUNT, Idler Spring

$

$

Not available

14

Simplicity 5025046SM

NUT, 3/8-16 Hex Top Lock

$3.49

$

In Stock, Qty 6

0

15

Simplicity 5045023SM

SPACER, .52 x 1.00 x .44

$6.49

$

In Stock, only 1 left!

0

16

Simplicity 5023340SM

SPRING, Extension, Swivel End

$36.99

$

In Stock, only 1 left!

0

17

Simplicity 1916950SM

NUT, 3/8-16 Hex
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

18

Simplicity 5025013X10SM

BOLT, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5025017X28SM

BOLT, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 5103430

WELD, MOUNT, IDLER
(Superseded to 5103430YP)

$10.99

$

In Stock, only 2 left!

0

21

Simplicity 5046466SM

SPINDLE PULLEY

$117.99

$

Usually ships in 2-12 days

0

22

Simplicity 5050407X5SM

KEY, 1/4 SQ. X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025406SM

WASHER, 3/4" Belleville
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

24

Simplicity 5025405SM

NUT, 3/4-16 Hex

$3.99

$

In Stock, only 2 left!

0
