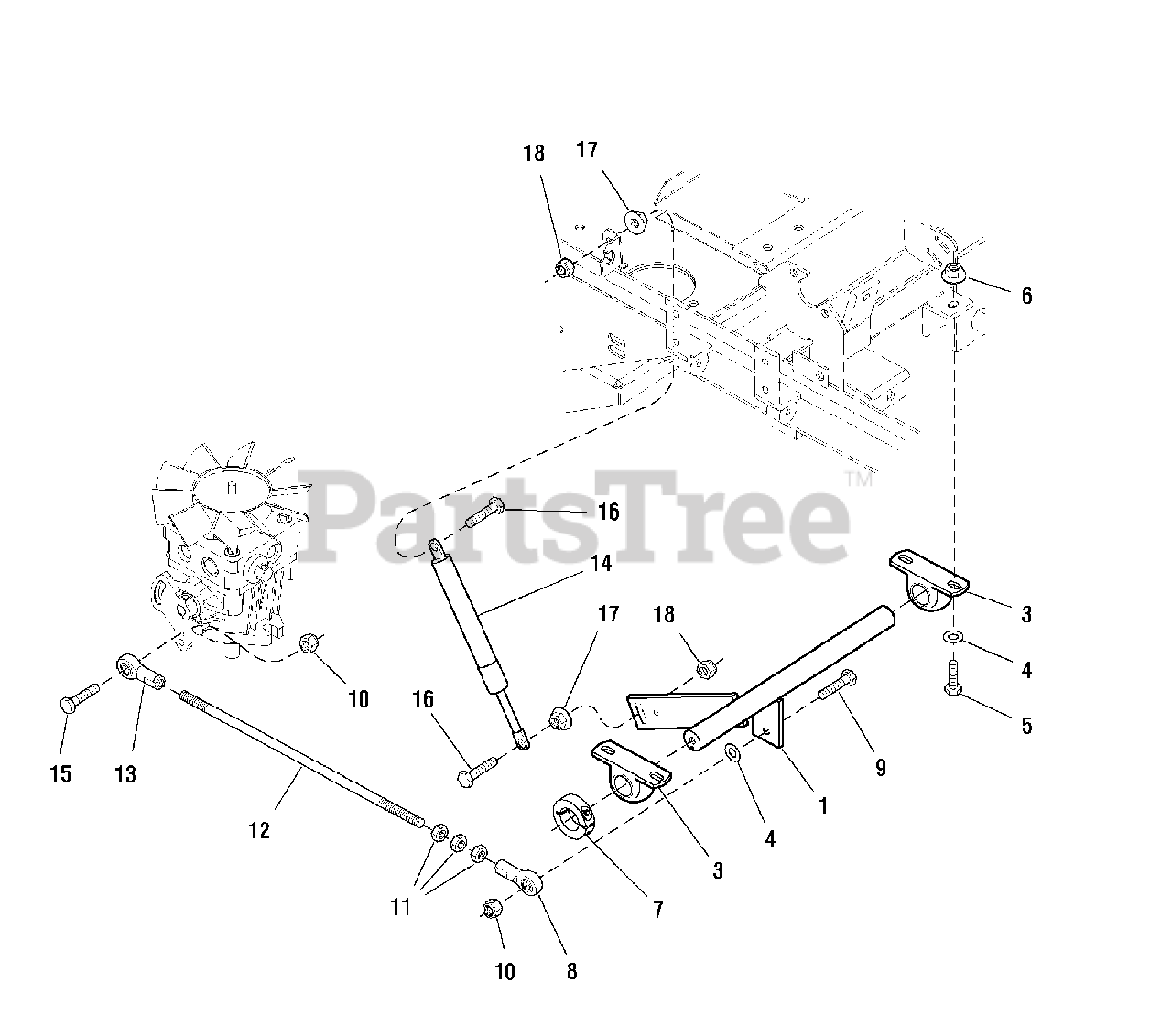

2690367 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Motion Control Group - Lower (4235mcgl) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

Motion Control Group - Lower (4235mcgl) Parts Diagram

  • Title

1

Simplicity 5046405CSM

CONTROL SHAFT-RH

$

$

Not available

2

Simplicity 5046404CSM

CONTROL SHAFT-LH

$

$

Not available

3

Simplicity 5022630SM

BEARING, Pillow Block

$23.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

6

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 5020602SM

COLLAR, 1" Split

$22.99

$

In Stock, only 1 left!

0

8

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

9

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

10

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

11

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5046420SM

HYDRO LINKAGE ROD

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

14

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, only 3 left!

0

15

Simplicity 5025011X9SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/8

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025335SM

CAPSCREW, Hex Hd, M8-1.25 x 35MM

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025355SM

NUT, Hex, Serrated Flange, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025354SM

NUT, Hex, Nylon Lock, M8-1.25

$3.49

$

Usually ships in 2-12 days

0
