2690369 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Seat Mount & Floor Group (197STM0) Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

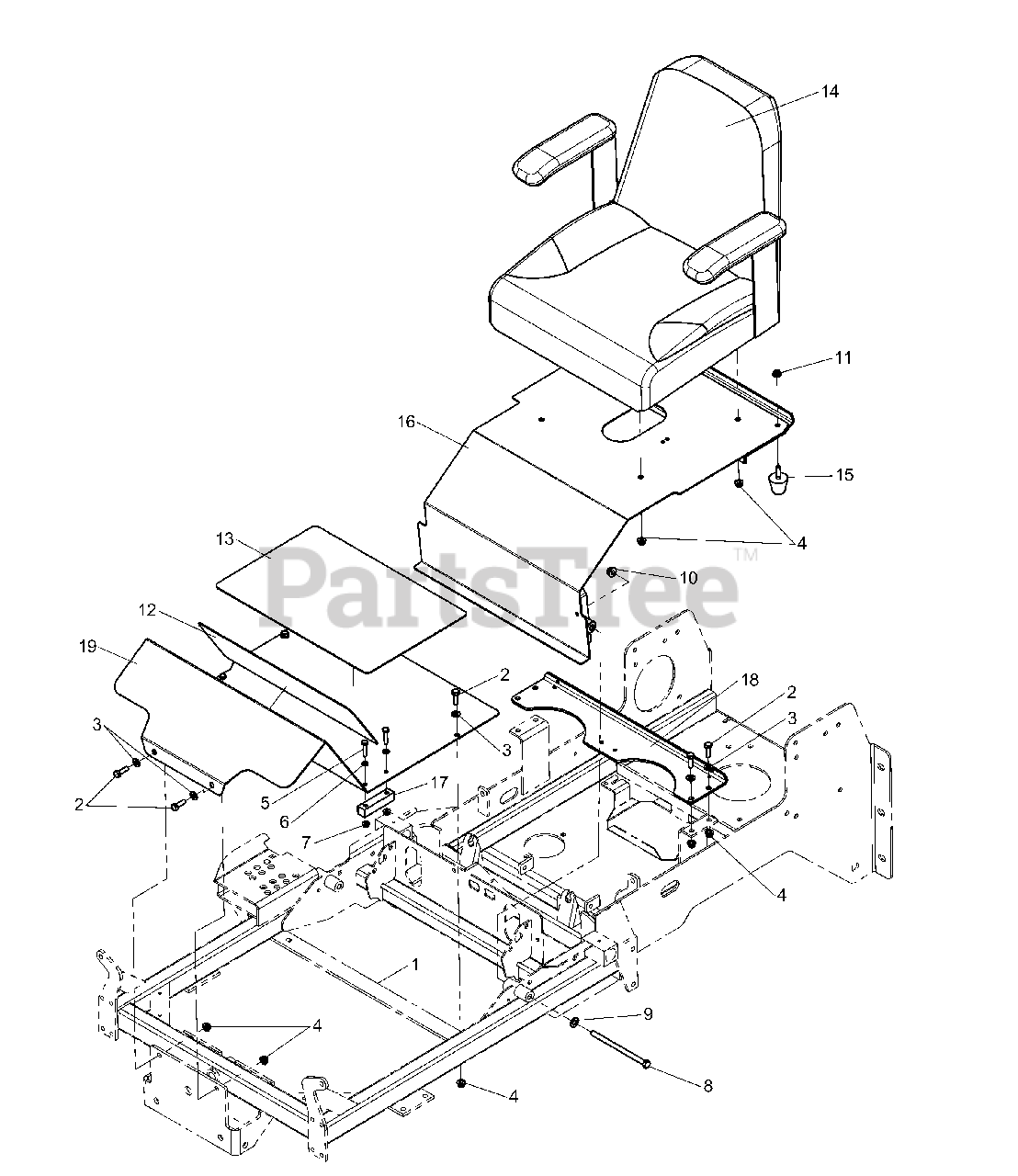

Seat Mount & Floor Group (197STM0) Parts Diagram

  • Title

1

MAIN FRAME (See Main Frame Group)

$

$

Not available

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

3

Simplicity 5025155SM

WASHER 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 5025392SM

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 5025010X10SM

BOLT, 1/4-20 X 1-1/4

$3.99

$

In Stock, Qty 7

0

6

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 5025013X48SM

BOLT, 3/8-16 X 6

$5.99

$

In Stock, Qty 17

0

9

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1931277SM

NUT, 5/16-18 Hex Small Serrated Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 5049979SM

SAFETY WALK, FLOOR REST
(Superseded to 5101007SM)

$34.99

$

Usually ships in 2-12 days

0

13

Simplicity 5049978SM

SAFETY WALK, FLOOR PLATE

$

$

Not available

14

Simplicity 5061599SM

SEAT, BLACK

$788.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022612SM

BUMPER, RUBBER 5/16-18

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 5300028SM

ASSM, SEAT PLATE (Includes safety decal) (Early Models)

$399.99

$

Usually ships in 2-12 days

0

16

Simplicity 5401389SM

ASSM, SEAT PLATE (Includes safety decal) (Later Models with ROPS)

$421.99

$

Usually ships in 2-12 days

0

17

Simplicity 5061754

BLOCK, DECK LIFT SUPPORT

$

$

Not available

18

Simplicity 5049976C

SUPPORT, SEAT PLATE (Early Models)

$

$

Not available

18

Simplicity 5400849C

SUPPORT, SEAT PLATE (Later Models with ROPS)
(Superseded to 5400849CSM)

$68.99

$

Usually ships in 2-12 days

0

19

Simplicity 5049953CSM

PLATE, FLOOR

$140.99

$

Usually ships in 2-12 days

0
